2 Renewing rear cross panel (Variant

RO: 53 05 55 60

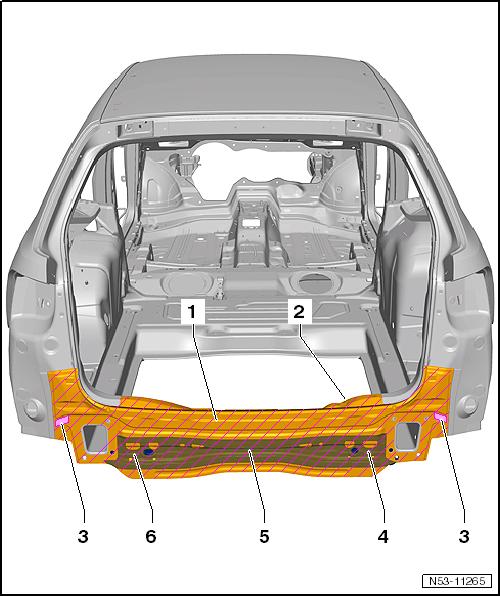

Protected by copyright . Co ying for pivate or commerci al p r po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 2 Renewing rear cross panel (Variant) Includes: cross member for rear cross panel, left and right exhaust system retainers and lock carrier WARNING Observe safety notes! u Safety notes ⇒ General Information; Body Repairs, General Body Repairs ; Safety notes • Spare wheel well already removed ⇒ page 370 . 1 - Cross panel 2 - Lock carrier 3 - Bonded area p 4 - Right exhaust system re‐tainer 5 - Cross member for rear cross panel 6 - Left exhaust system retain‐er Passat 2011 ➤ , Passat Variant 2011 ➤ Body Repairs - Edition 04.2011
