JLG E45A E45AJ E4OAJP E4OAJPnarrow M45A M45AJ M40AJP M40AJPnarrow Parts Manual_3120885_english

SECTION 6 - HYDRAULIC FIGURE 6-4. HYDRAULIC DIAGRAM LIST

ITEM

PART NUMBER

2792334 2792395 2792413 2792337

142

QTY Ref Ref Ref Ref Ref Ref

DESCRIPTION Note: Information on diagrams not shown is available from JLG Service/Parts Departments. Standard Hydraulic Diagrams Standard Hydraulic Diagrams E45A & M45A Standard Hydraulic Diagrams E45AJ & M45AJ Standard Hydraulic Diagrams E40AJP & M40AJP Standard Hydraulic Schematic

E40AJP/E40AJPn/M40AJP/M40AJPn/E45A/E45AJ/M45A/M45AJ

REV

3120885

Turn static files into dynamic content formats.

Create a flipbook

Articles inside

FIGURE 10 1. SPECIAL OPTIONS

FIGURE 9 2. MODELS E45/M45/E40 & M40 VARIABLE PARTS

FIGURE 9 1. MODELS E45/M45/E40 & M40 STANDARD PARTS

FIGURE 8 1. DECALS INSTALLATION

FIGURE 6 4. HYDRAULIC DIAGRAM LIST

FIGURE 6 3. STANDARD HYDRAULIC DIAGRAM (E40AJP & M40AJP

FIGURE 6 2. STANDARD HYDRAULIC DIAGRAM (E45AJ & M45AJ

FIGURE 6 1. STANDARD HYDRAULIC DIAGRAM (E45A & M45A

FIGURE 5 11. TELESCOPE CYLINDER ASSEMBLY (E45 & M45

FIGURE 5 8. MASTER CYLINDER ASSEMBLY (AJ & AJP MODELS

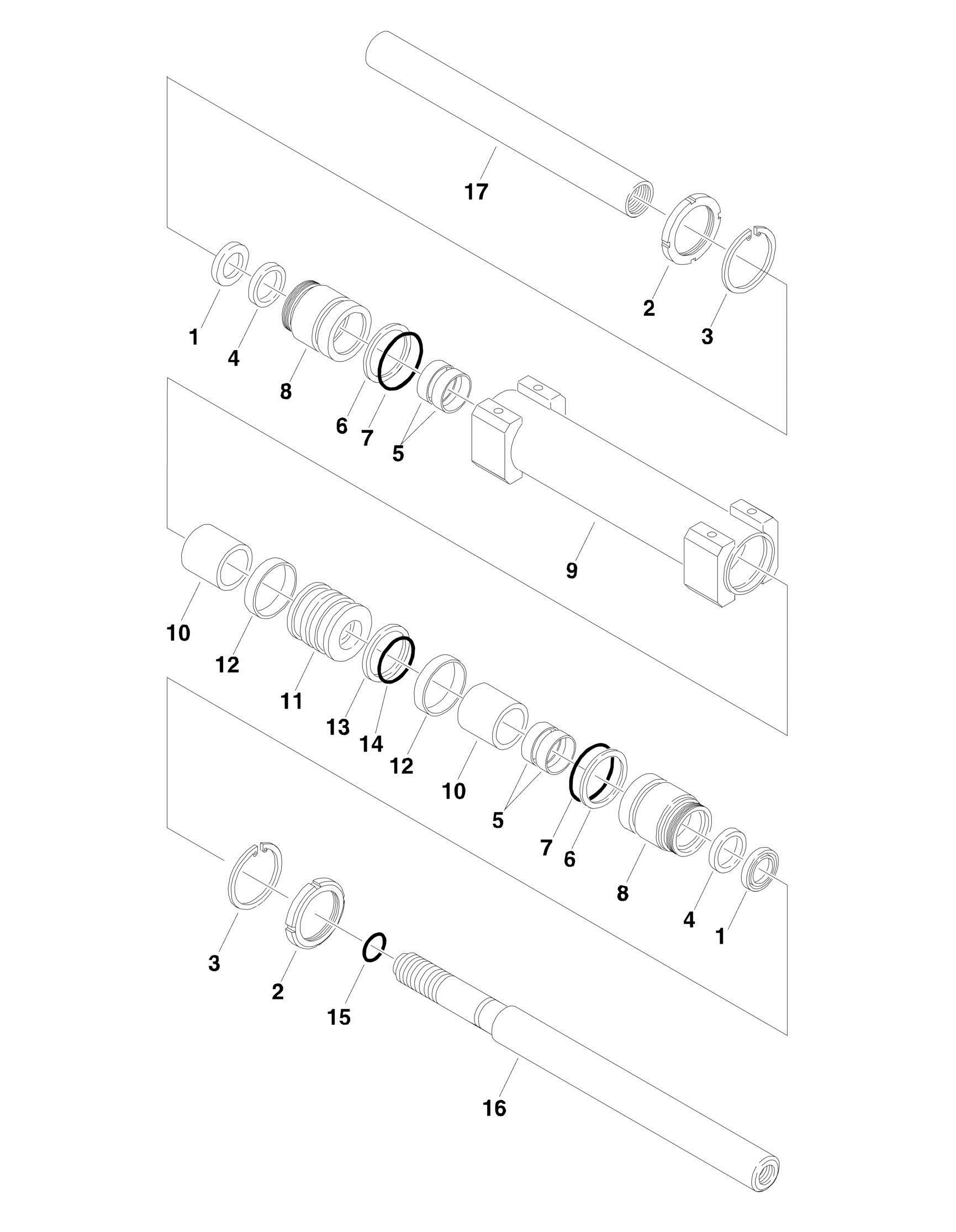

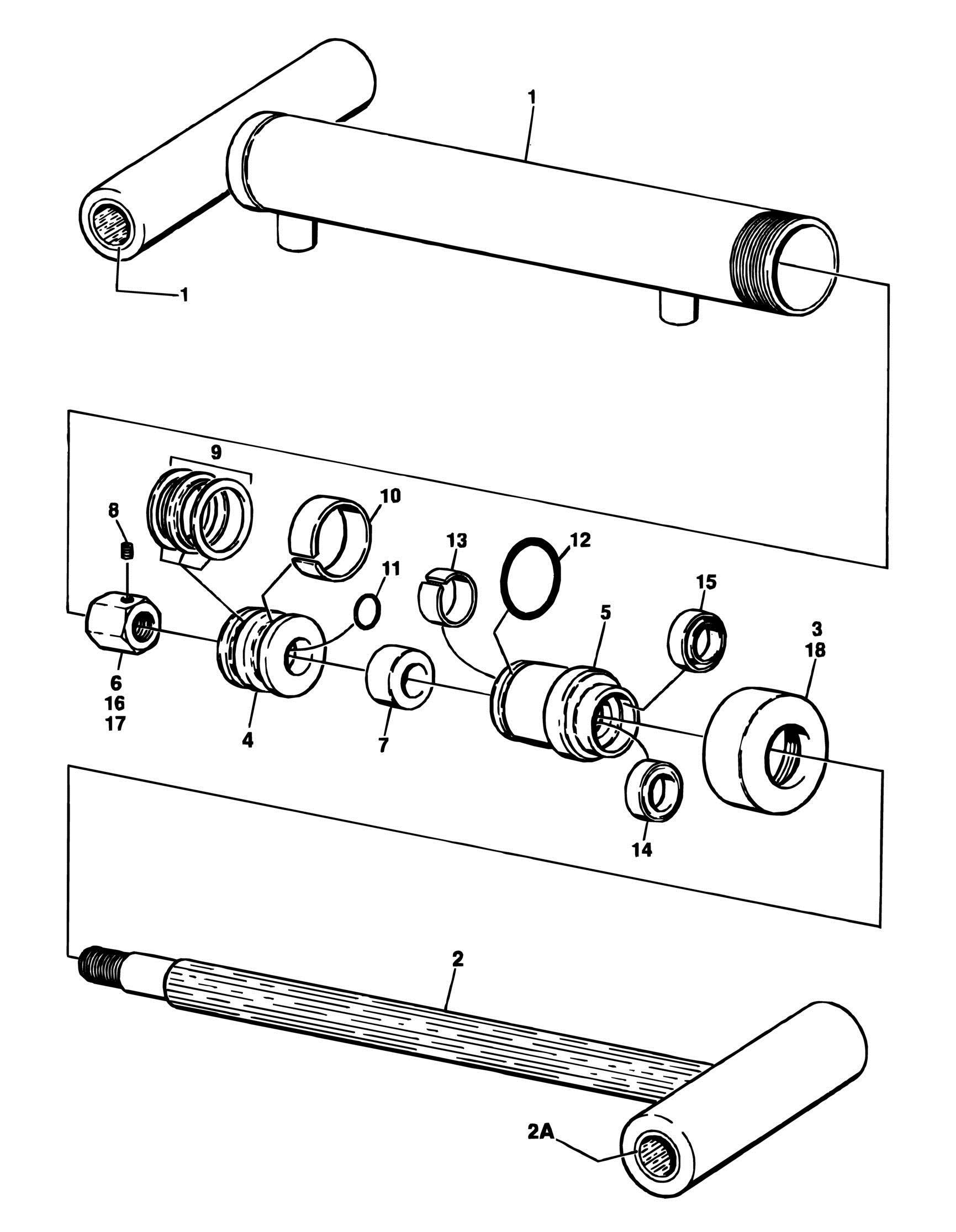

FIGURE 5 10. STEER CYLINDER ASSEMBLY

FIGURE 5 5. LIFT CYLINDER ASSEMBLY MID

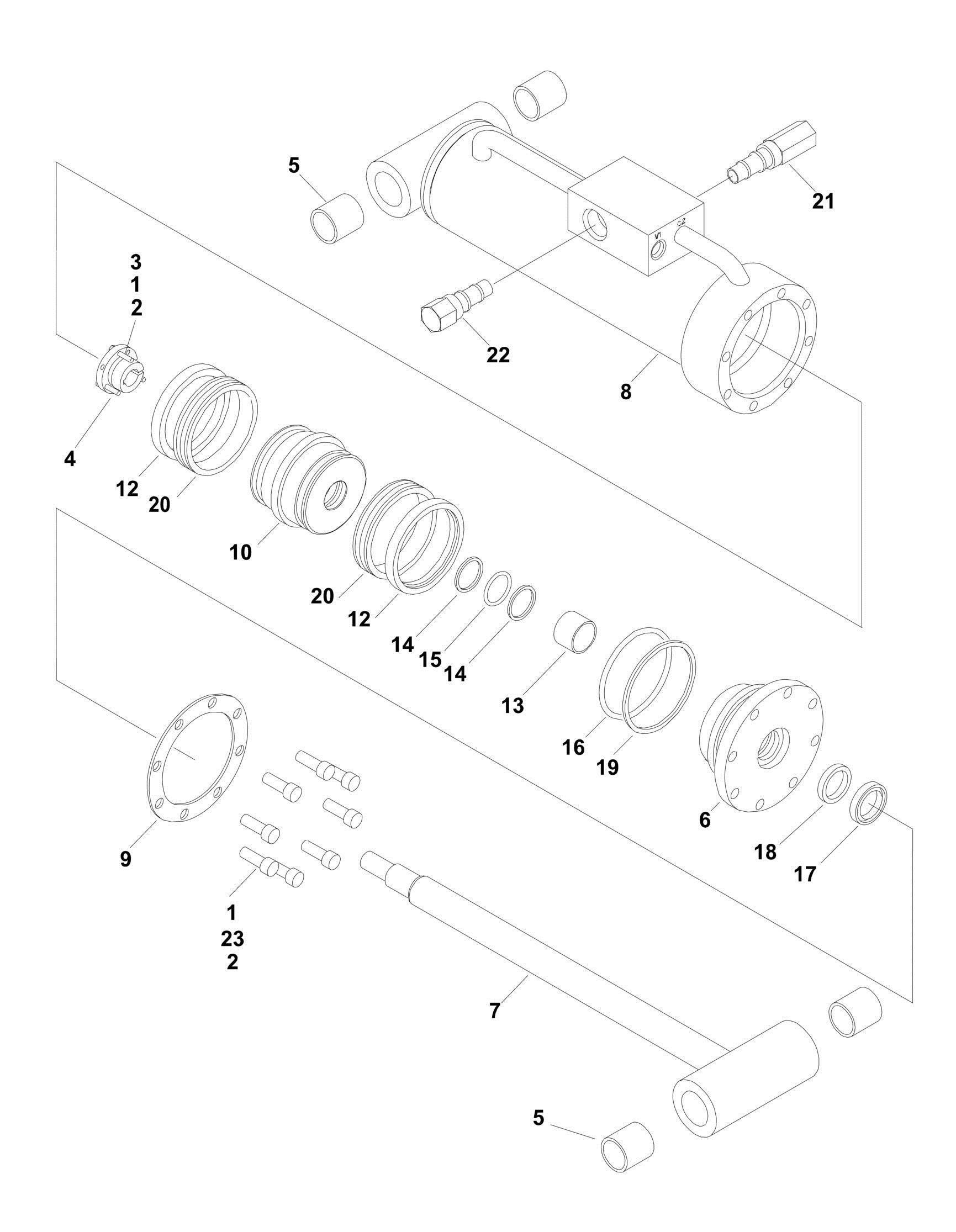

FIGURE 5 6. LIFT CYLINDER ASSEMBLY UPPER

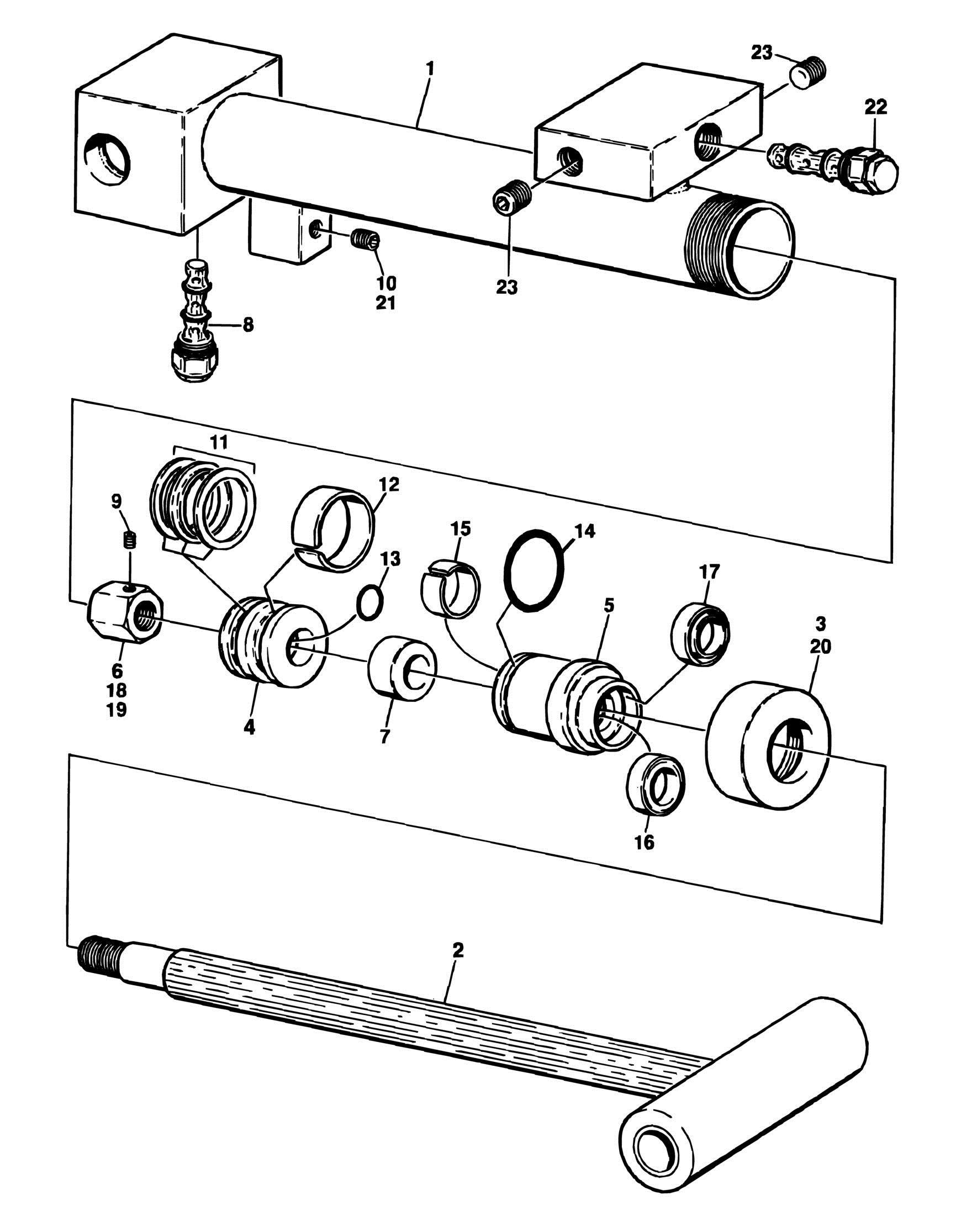

FIGURE 5 7. MASTER CYLINDER ASSEMBLY (A MODELS

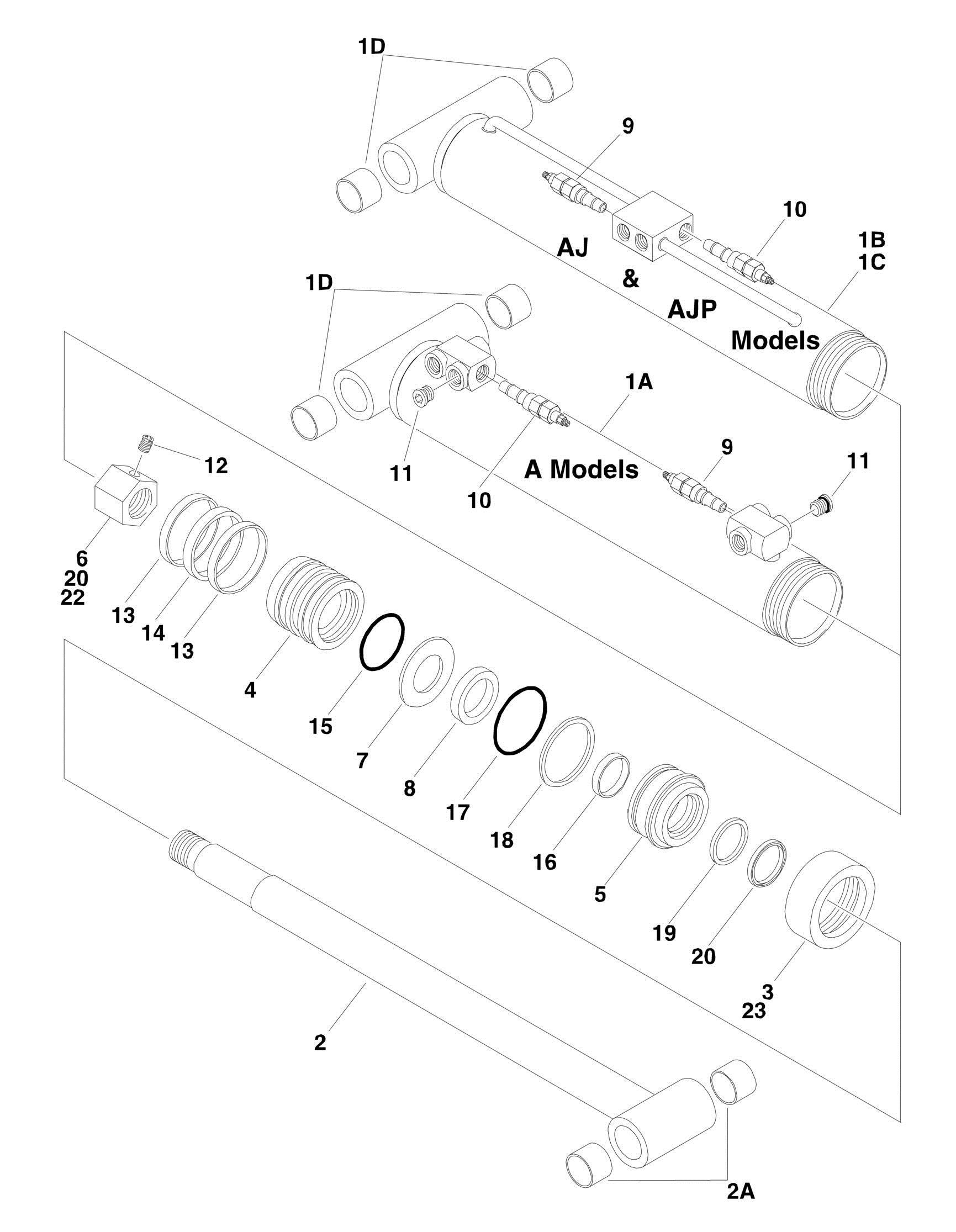

FIGURE 5 4. LIFT CYLINDER ASSEMBLY LOWER

FIGURE 5 3. PLATFORM LEVEL CYLINDER ASSEMBLY (AJ & AJP

FIGURE 5 2. PLATFORM LEVEL CYLINDER ASSEMBLY (E45A & M45A

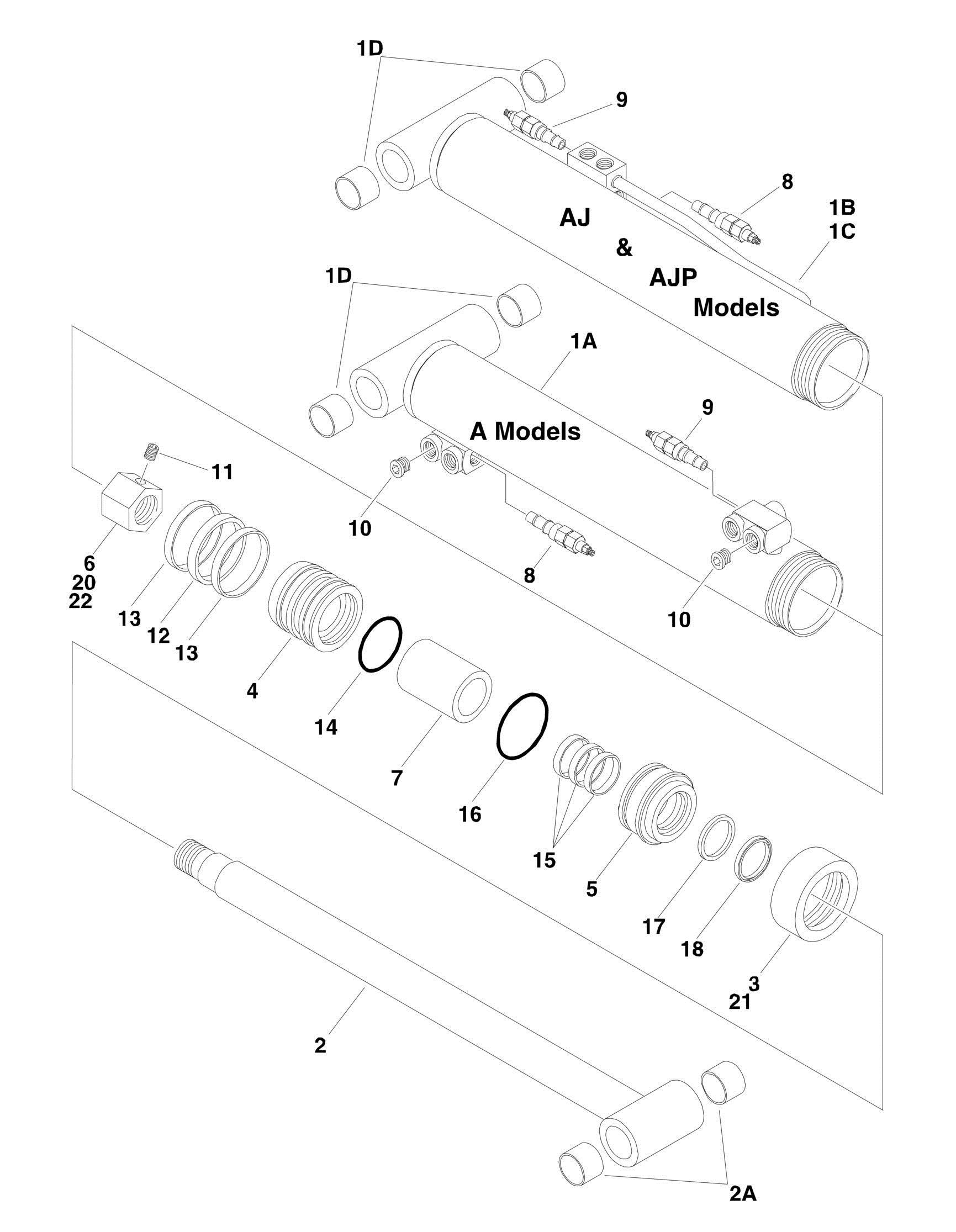

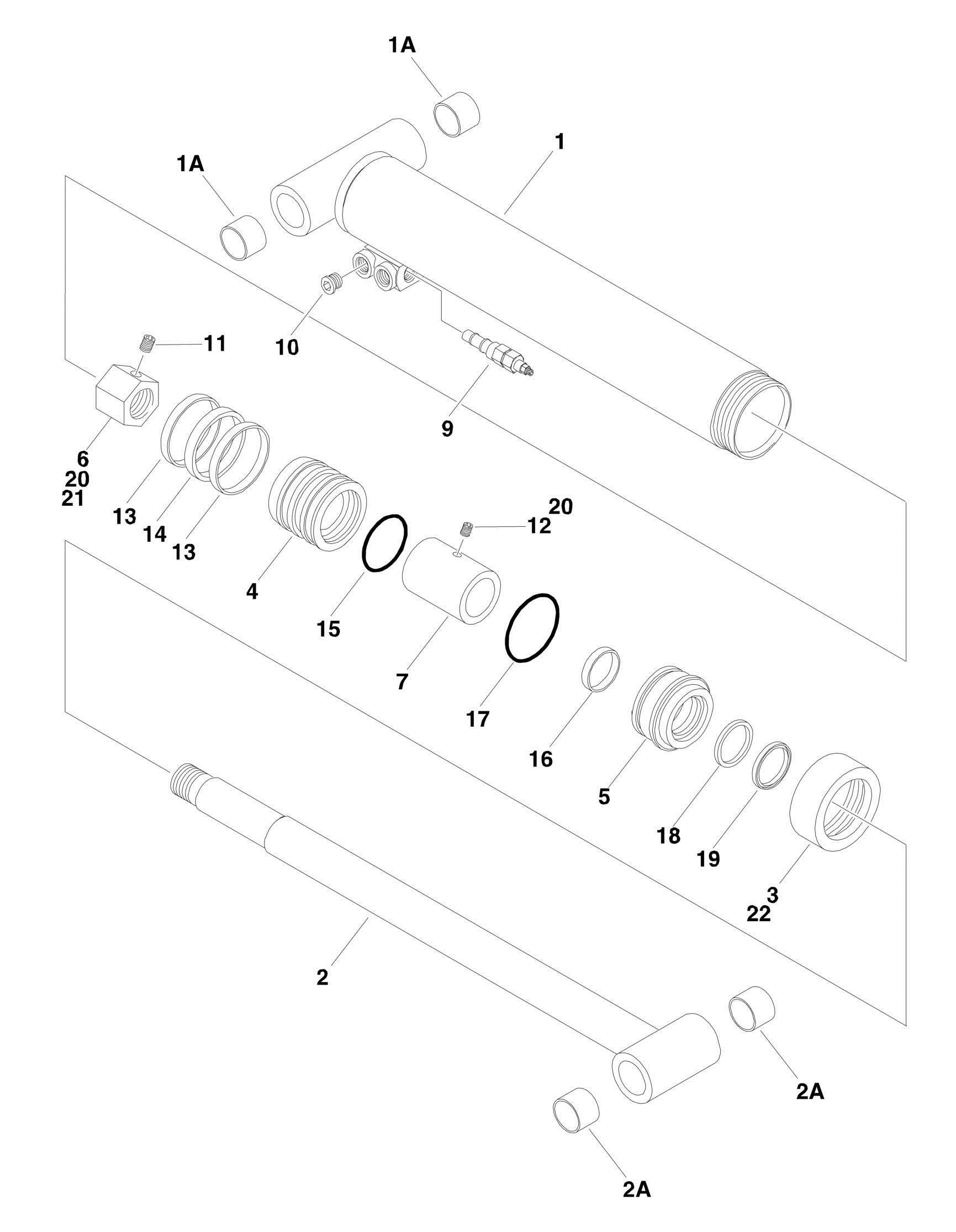

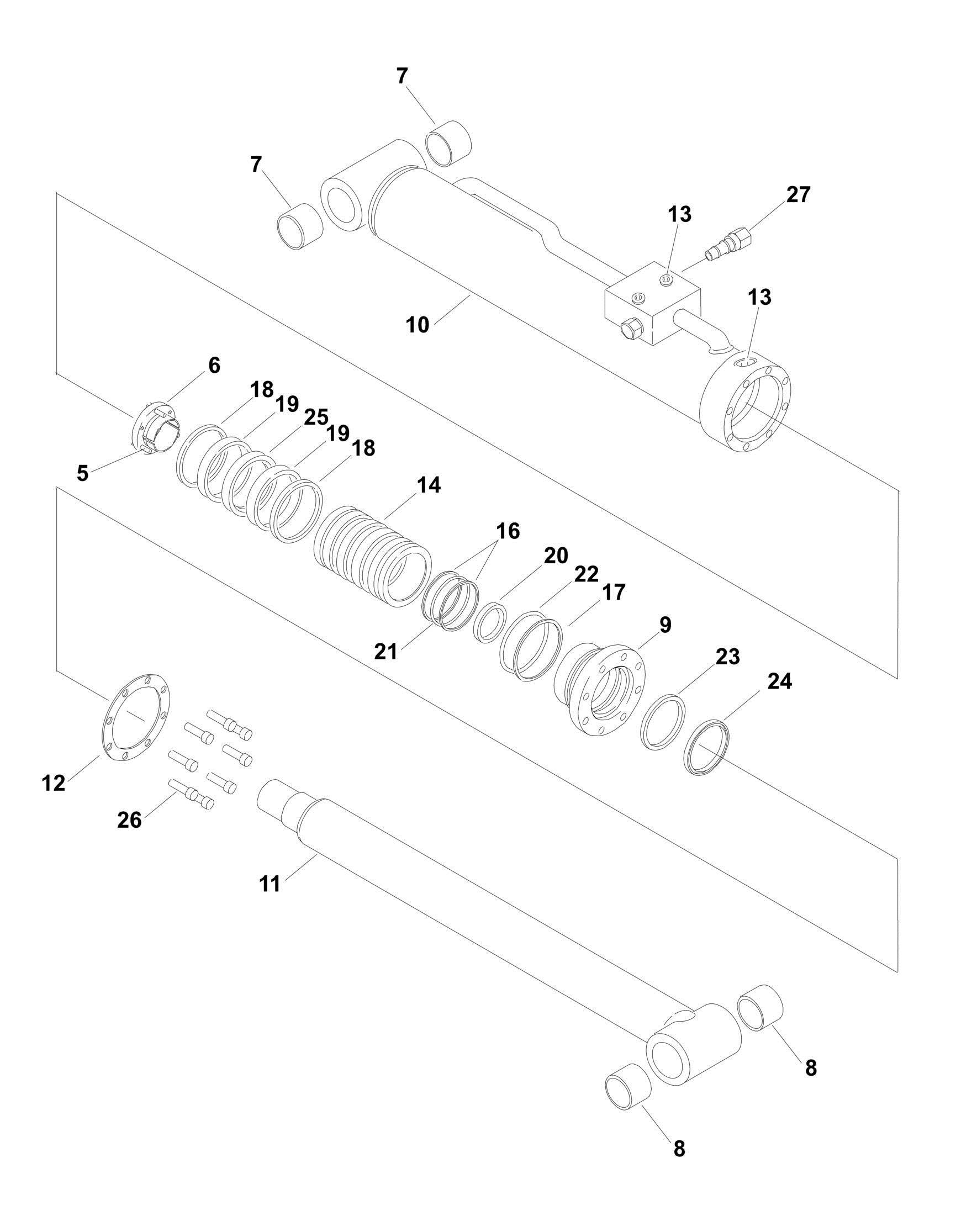

FIGURE 5 1. JIB CYLINDER ASSEMBLY (AJ & AJP

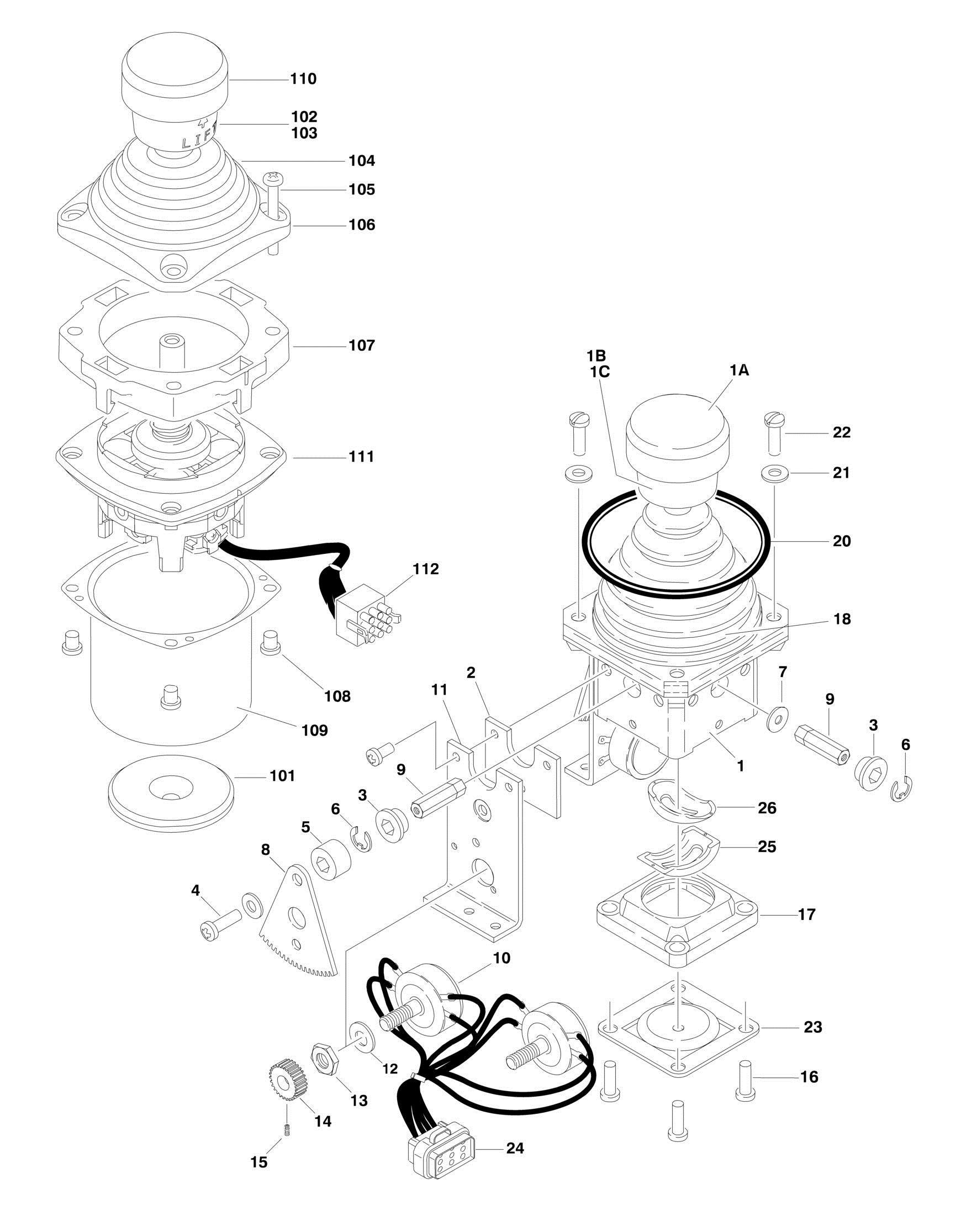

FIGURE 4 5. CONTROLLER ASSEMBLY (DRIVE AND STEER

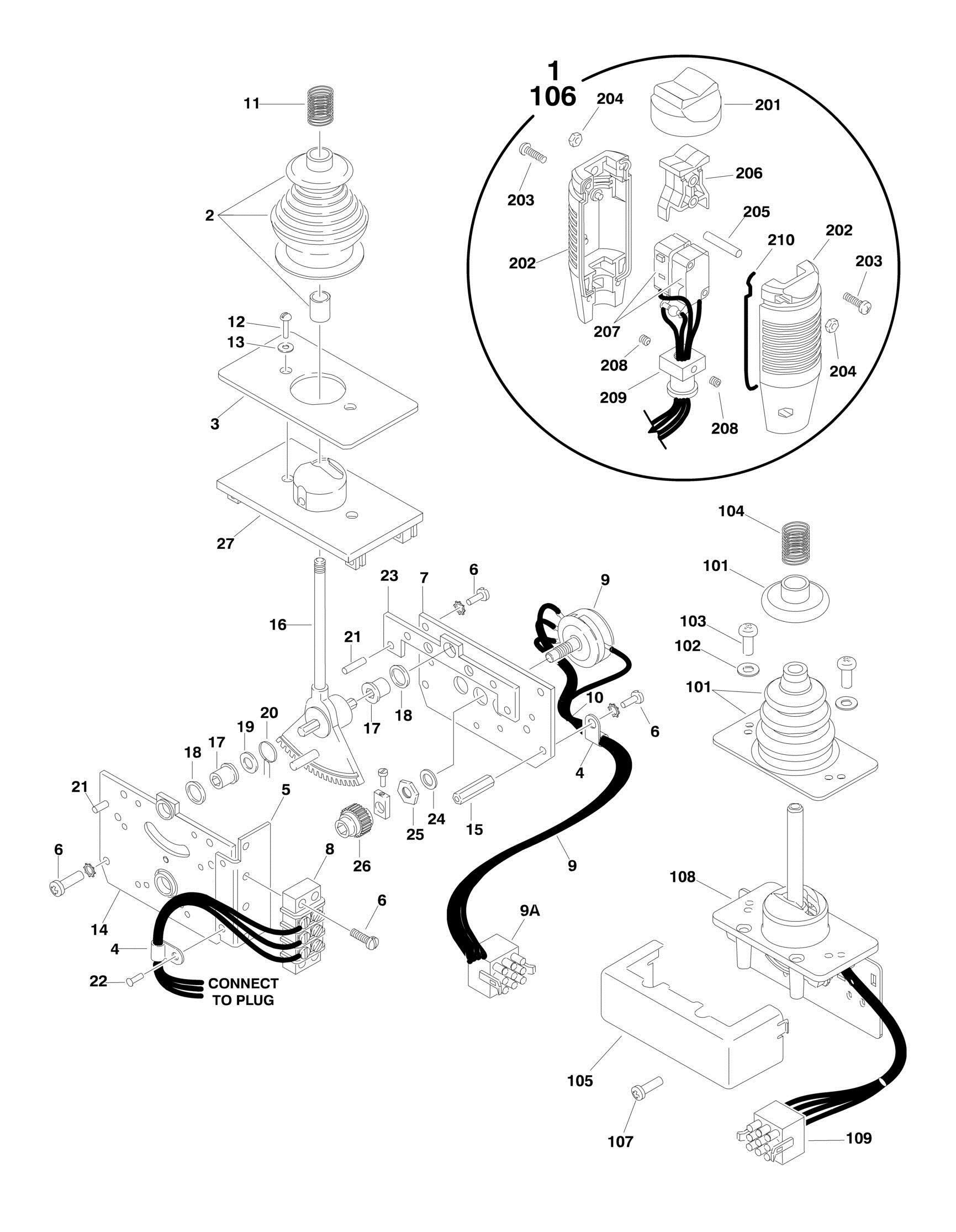

FIGURE 4 4. CONTROLLER ASSEMBLY (SWING AND LIFT

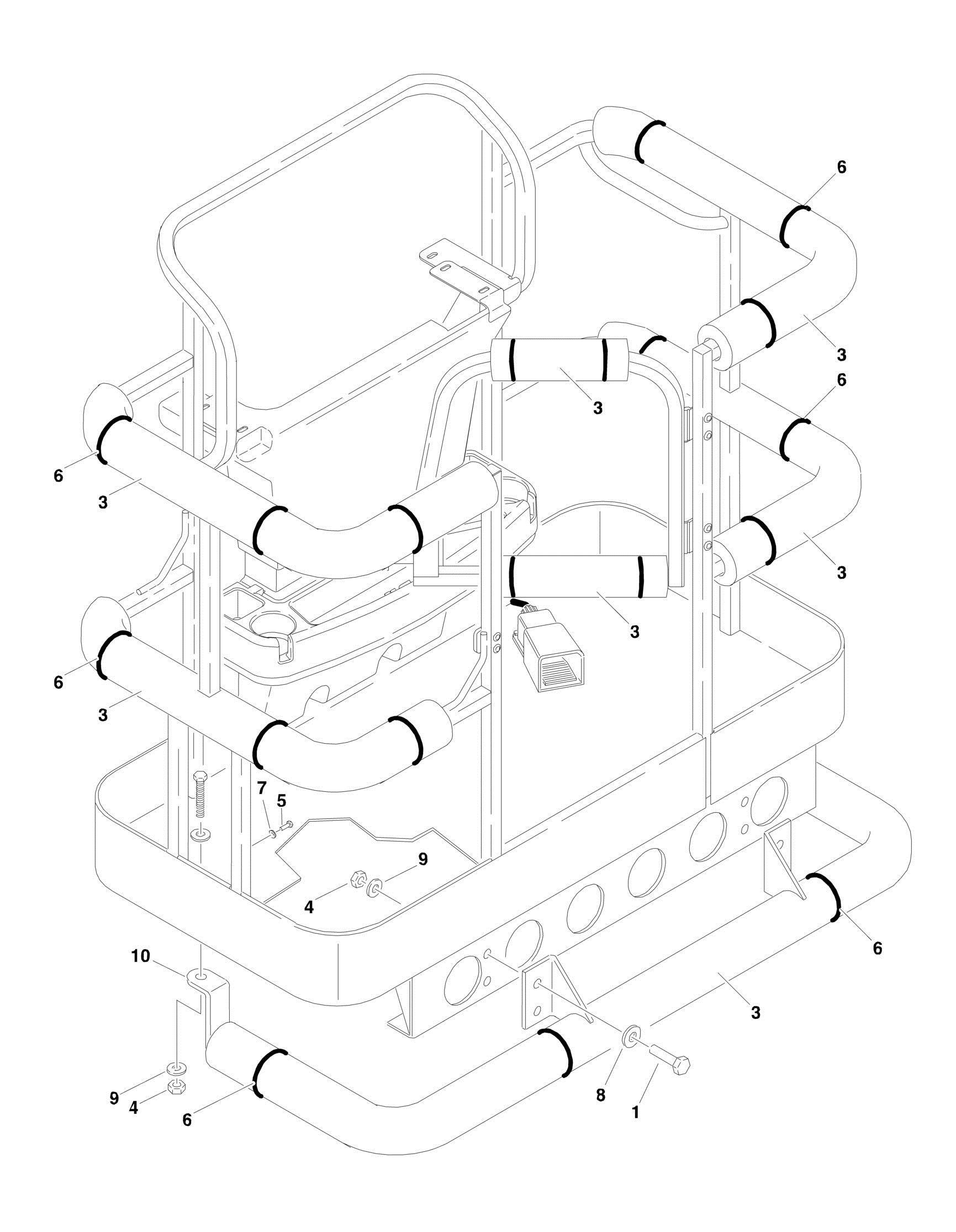

FIGURE 4 2. PLATFORM PADDING INSTALLATION

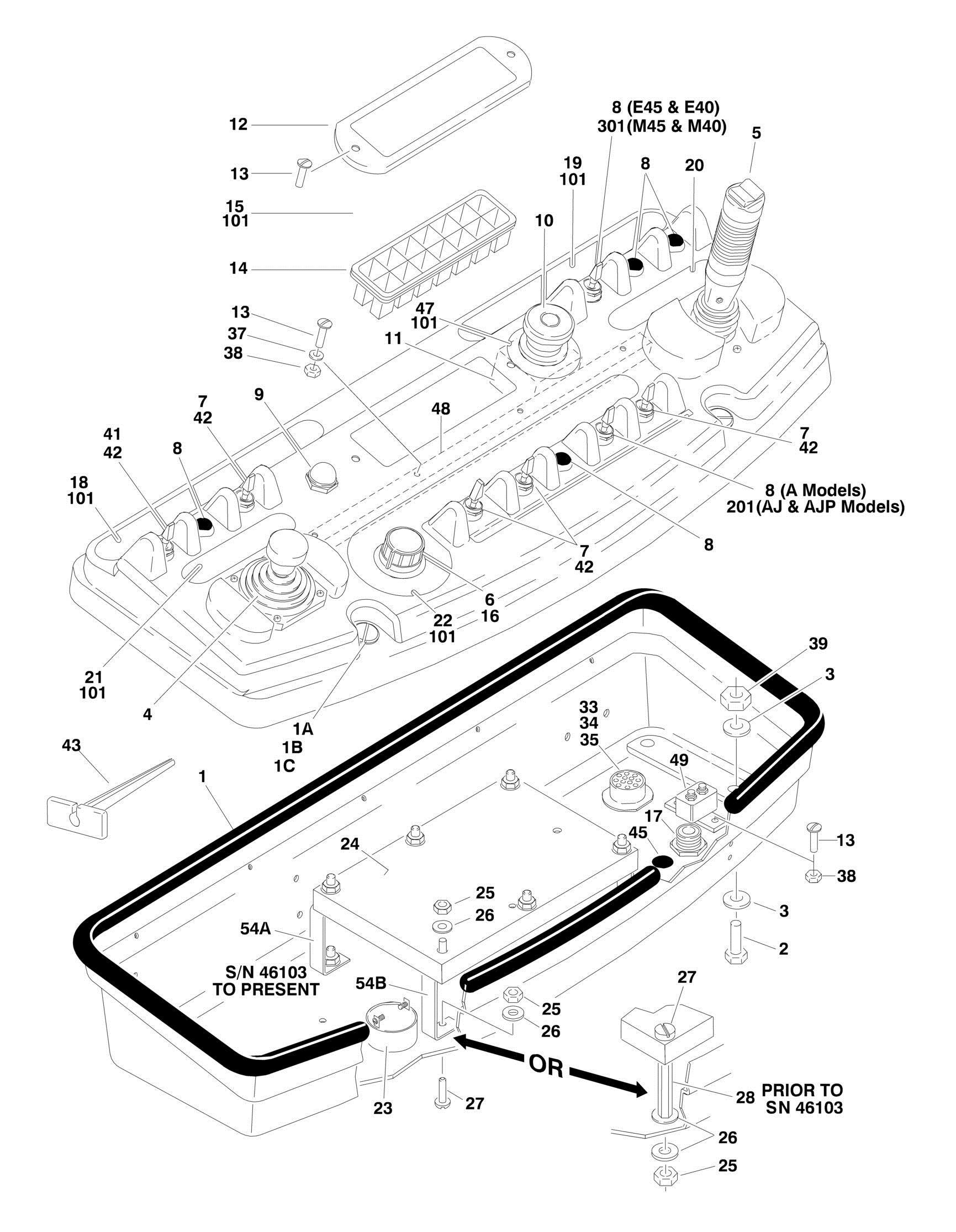

FIGURE 4 3. PLATFORM CONSOLE ASSEMBLY

FIGURE 3 7. SUPPORT/ROTATOR AND JIB ASSEMBLIES (AJ & AJP

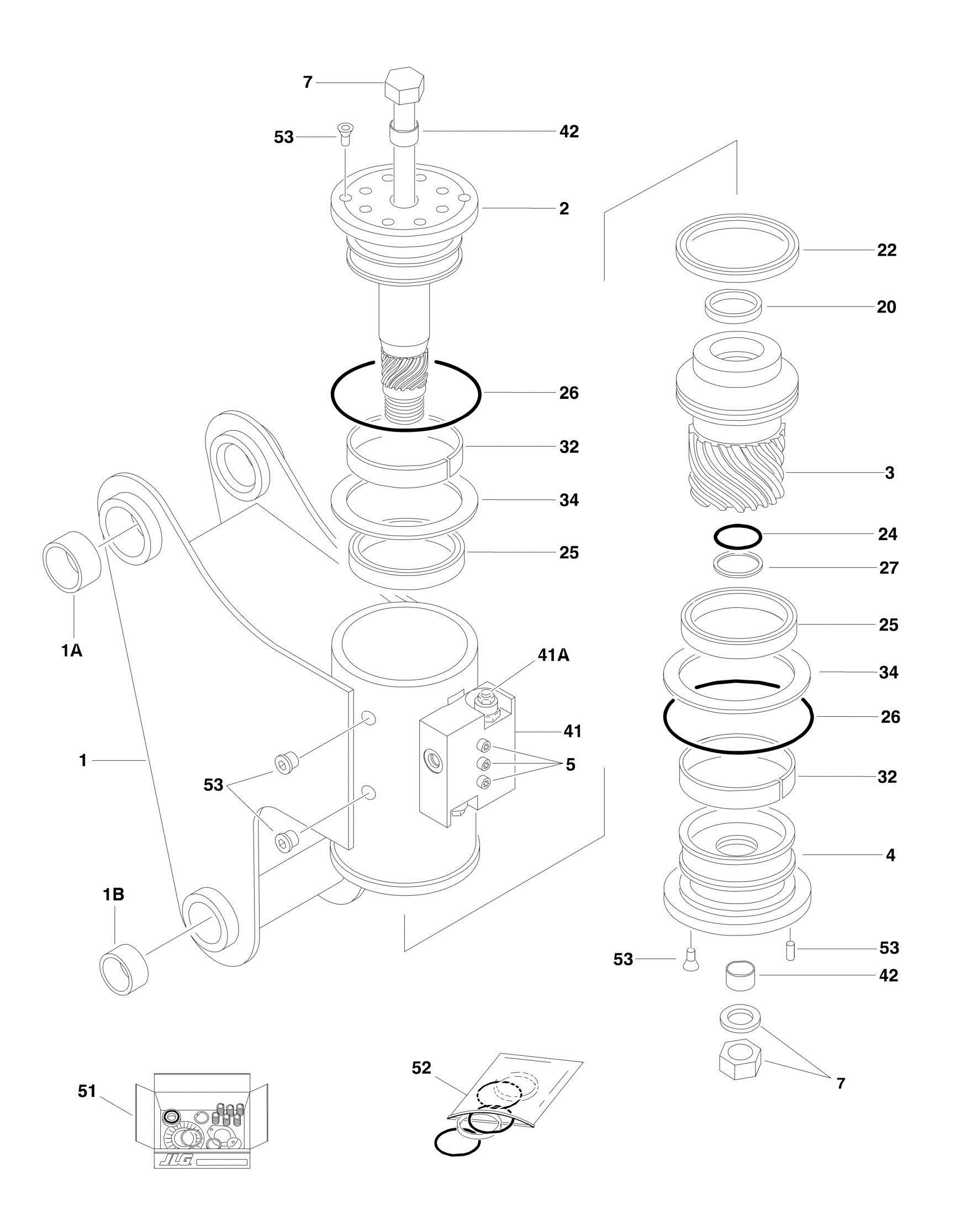

FIGURE 3 8. ROTATOR ASSEMBLY

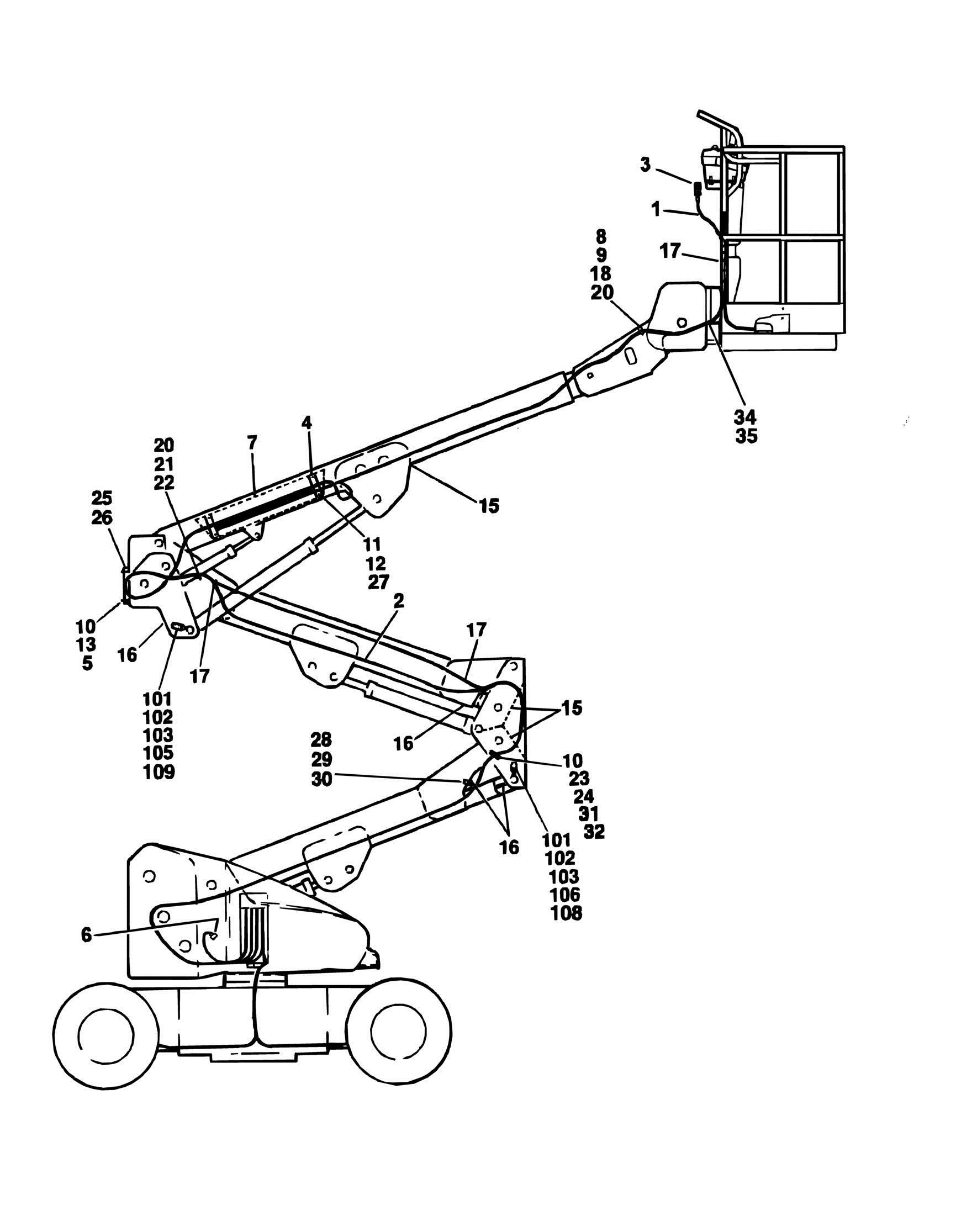

FIGURE 3 9. CABLES/CLAMPS AND LIMIT SWITCHES INSTALLATIONS

FIGURE 3 4. MAIN BOOM ASSEMBLY (E40AJP & M40AJP

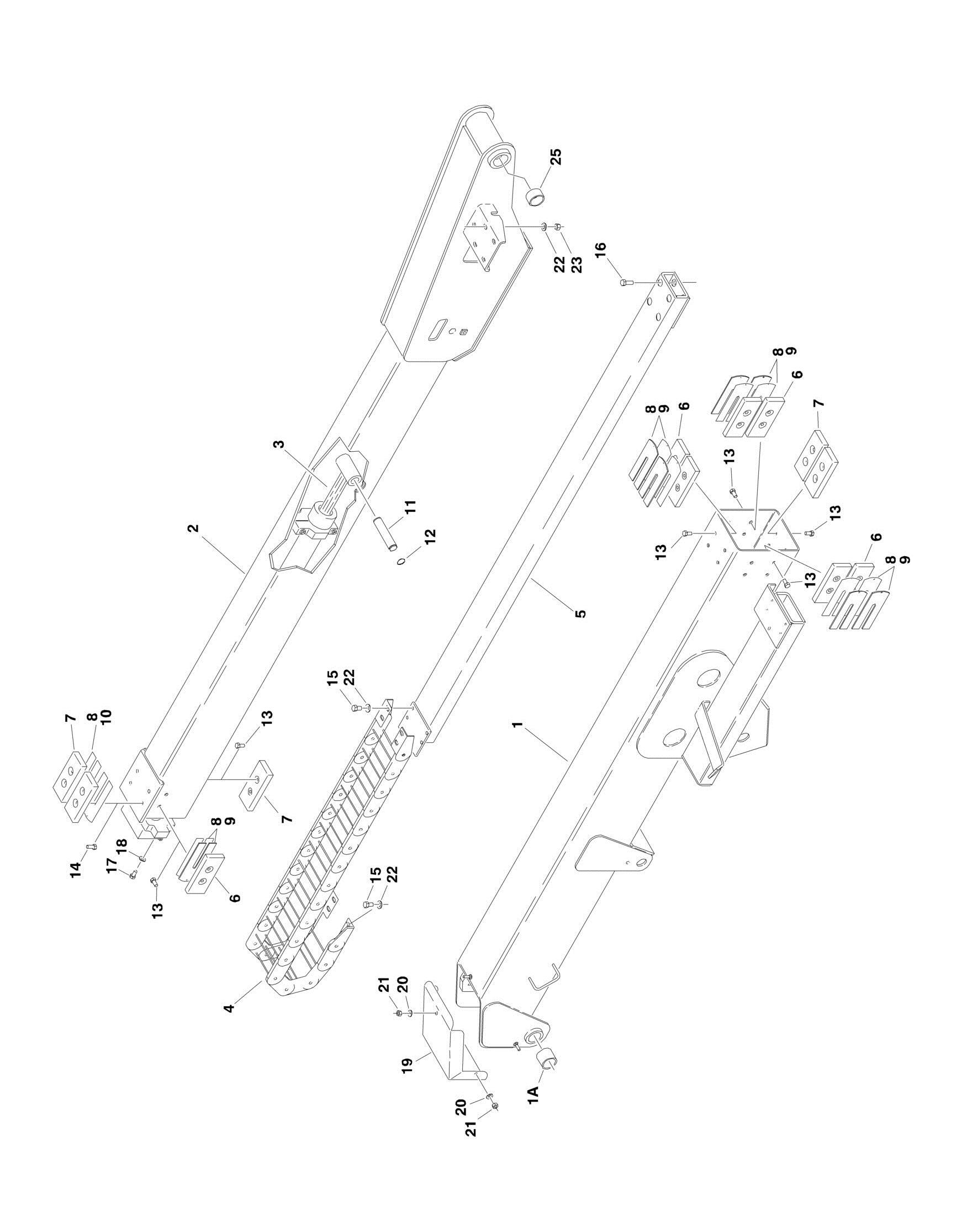

FIGURE 3 3. MAIN BOOM ASSEMBLY (E45AJ & M45AJ

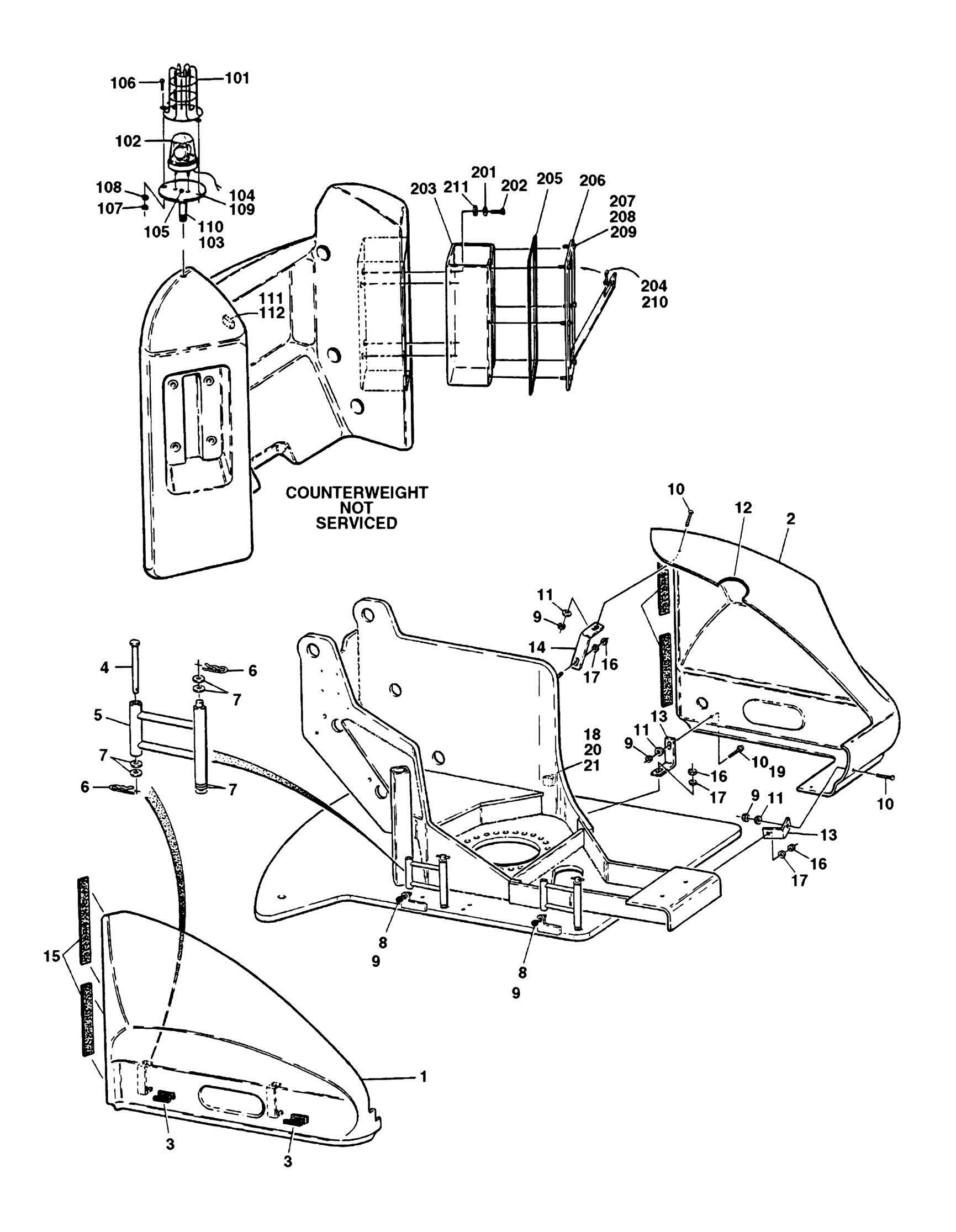

FIGURE 2 8. HOODS AND BEACON LIGHT INSTALLATIONS

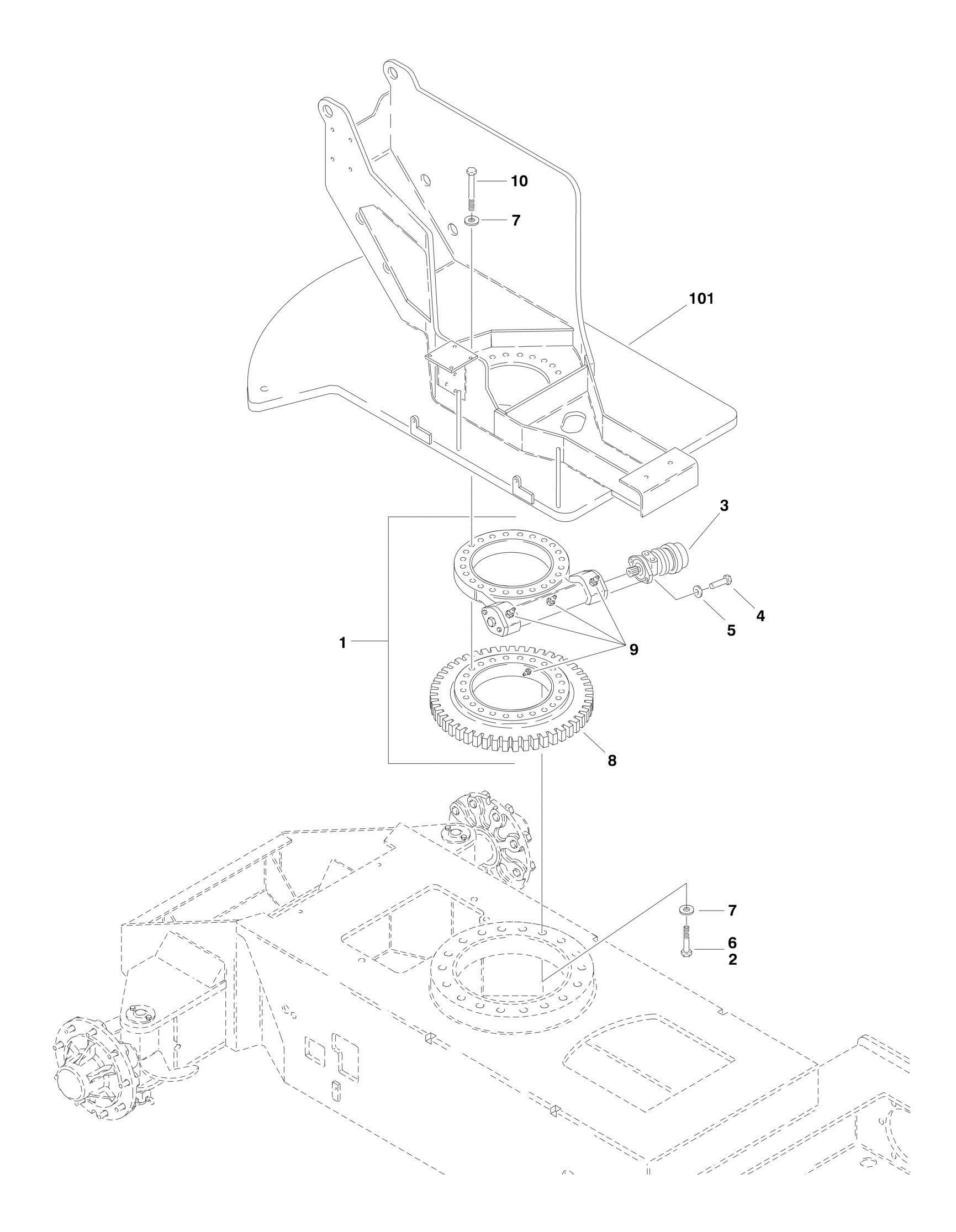

FIGURE 2 3. TURNTABLE AND SWING DRIVE INSTALLATION

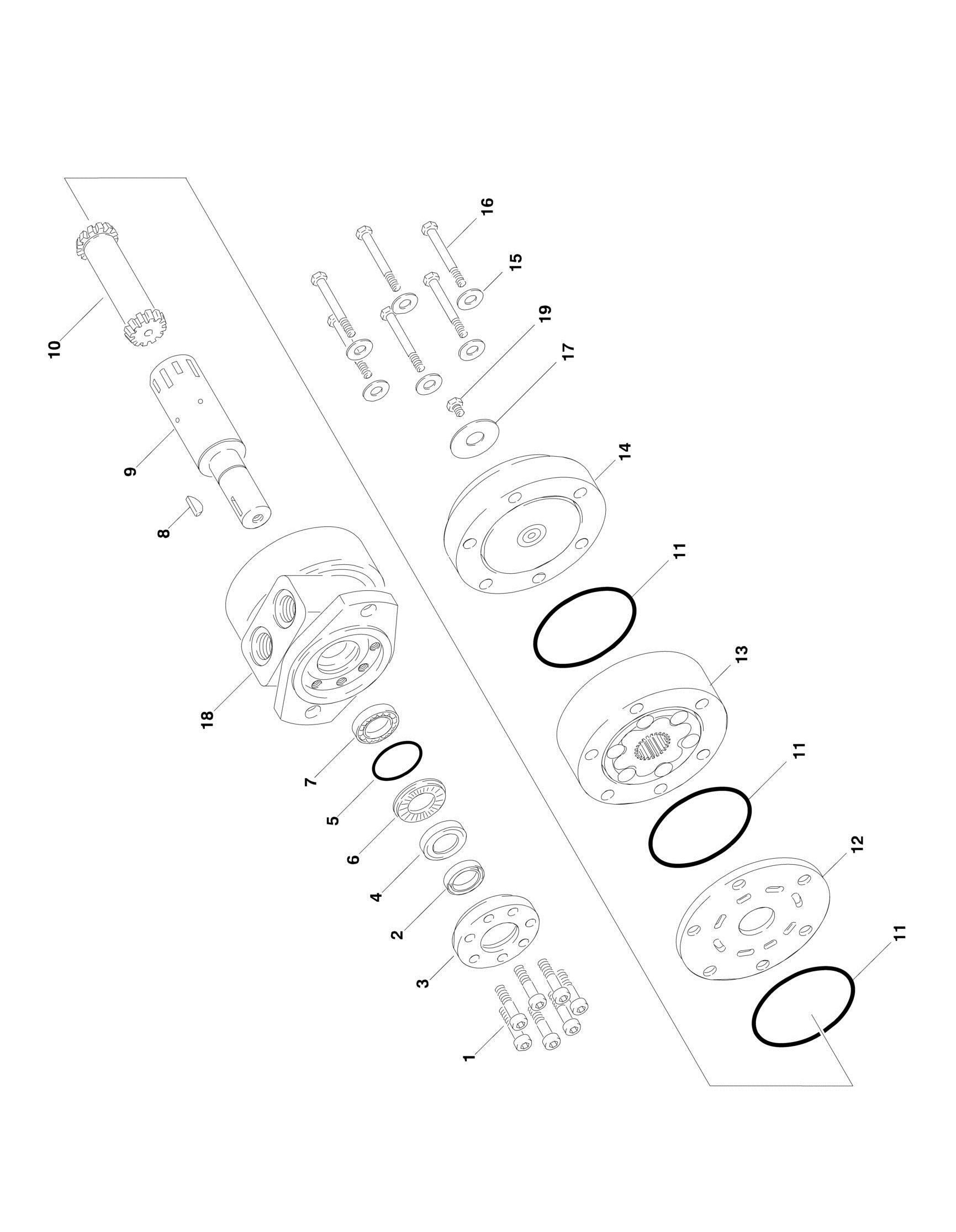

FIGURE 2 4. SWING MOTOR ASSEMBLY

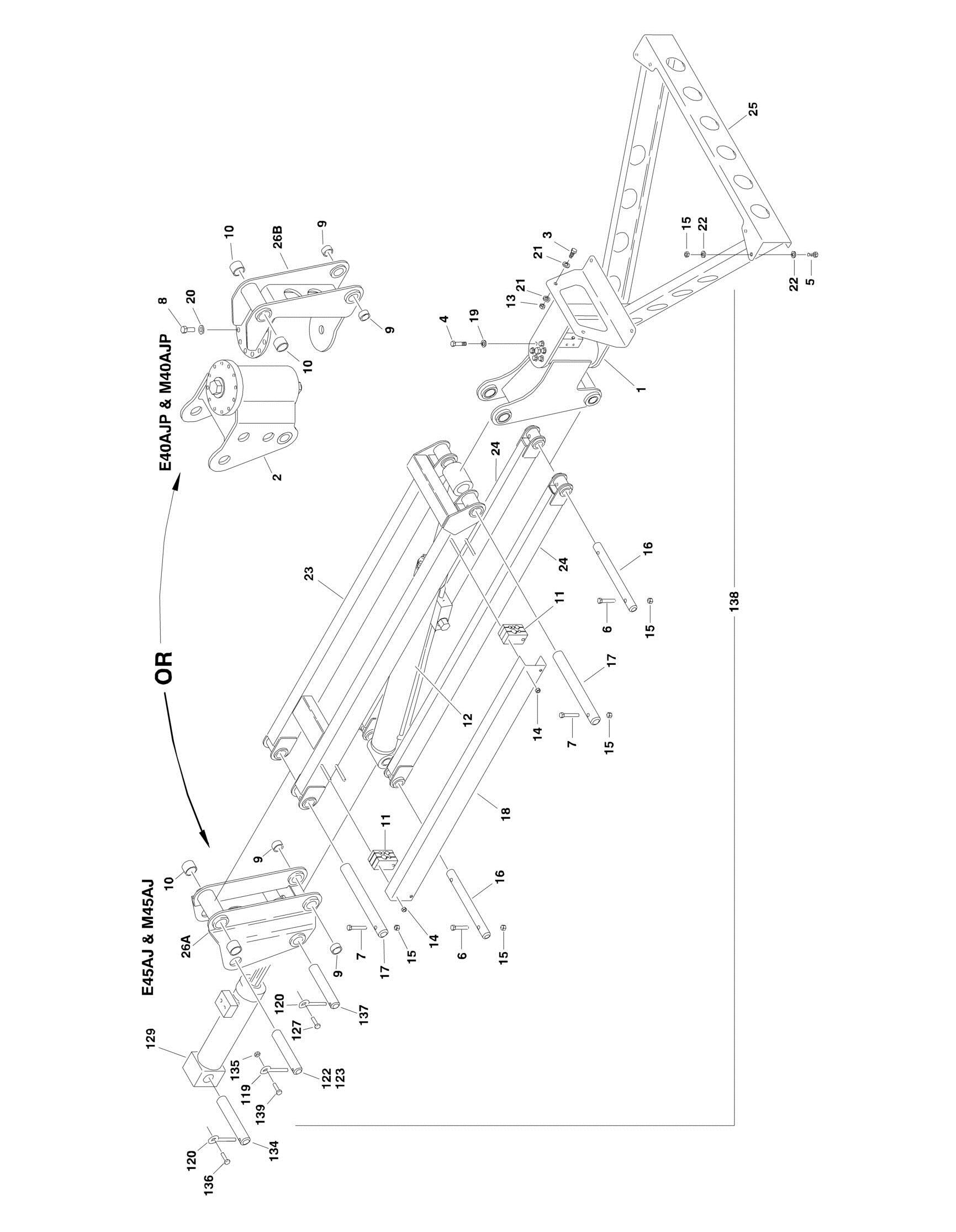

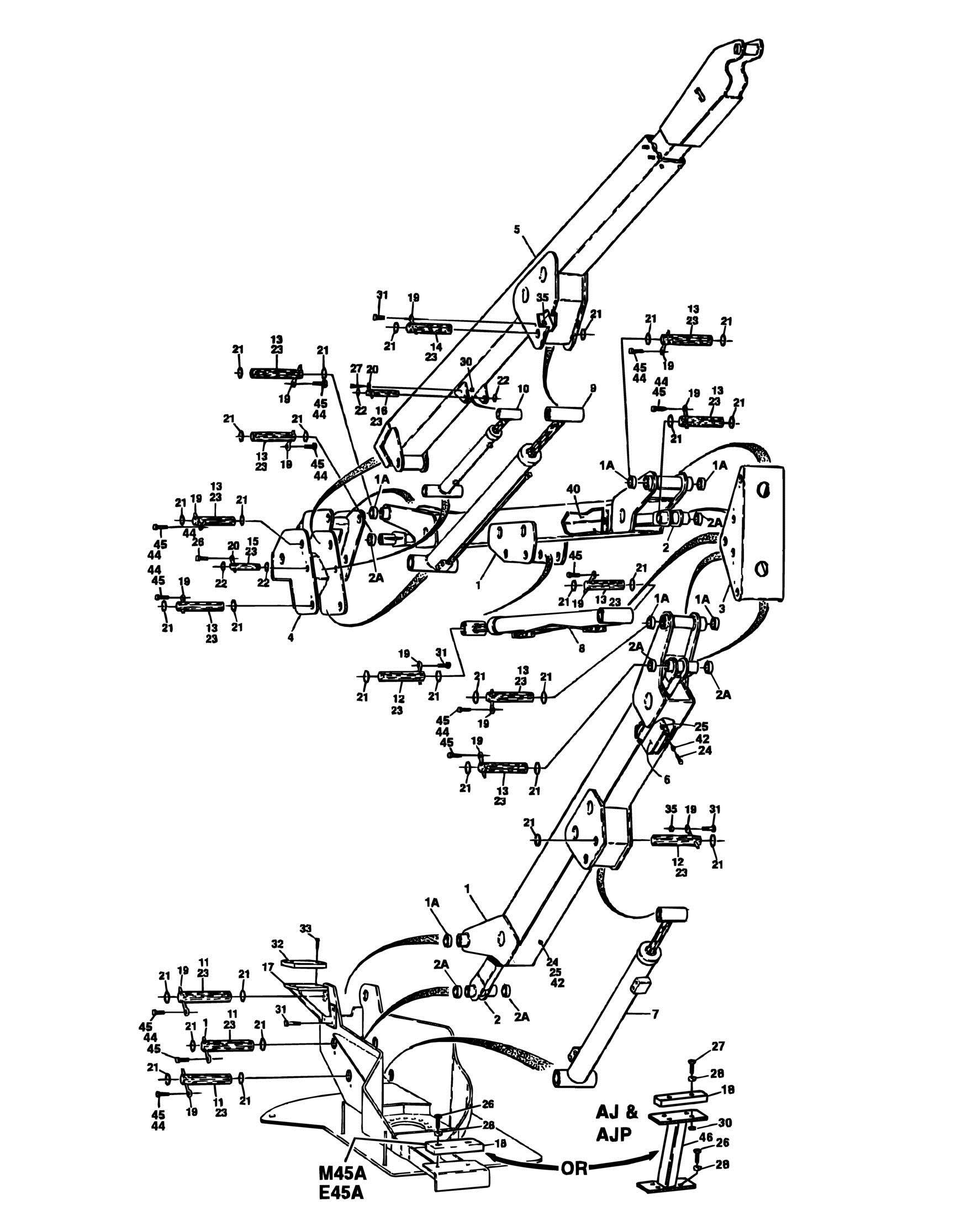

FIGURE 3 1. BOOMS INSTALLATION

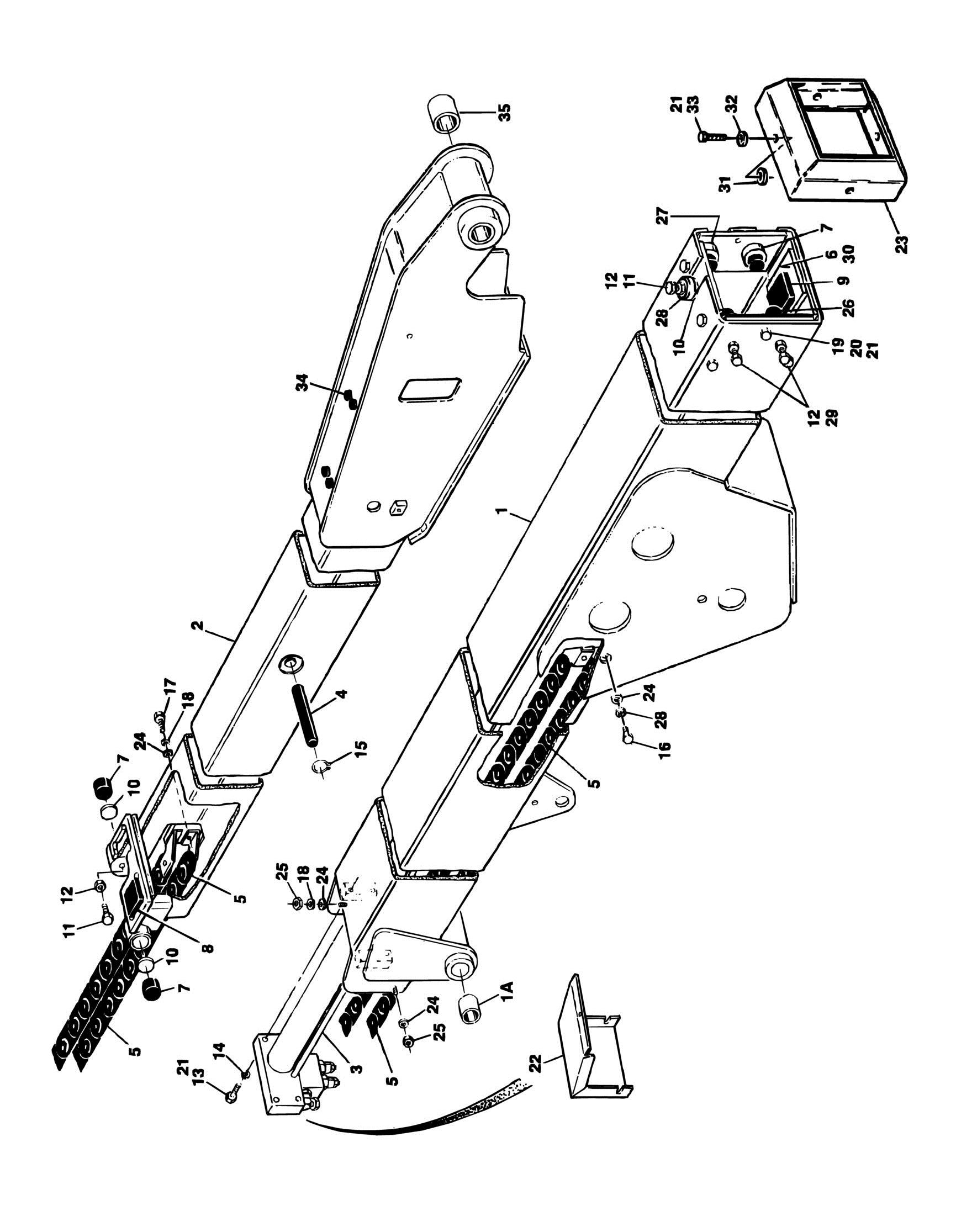

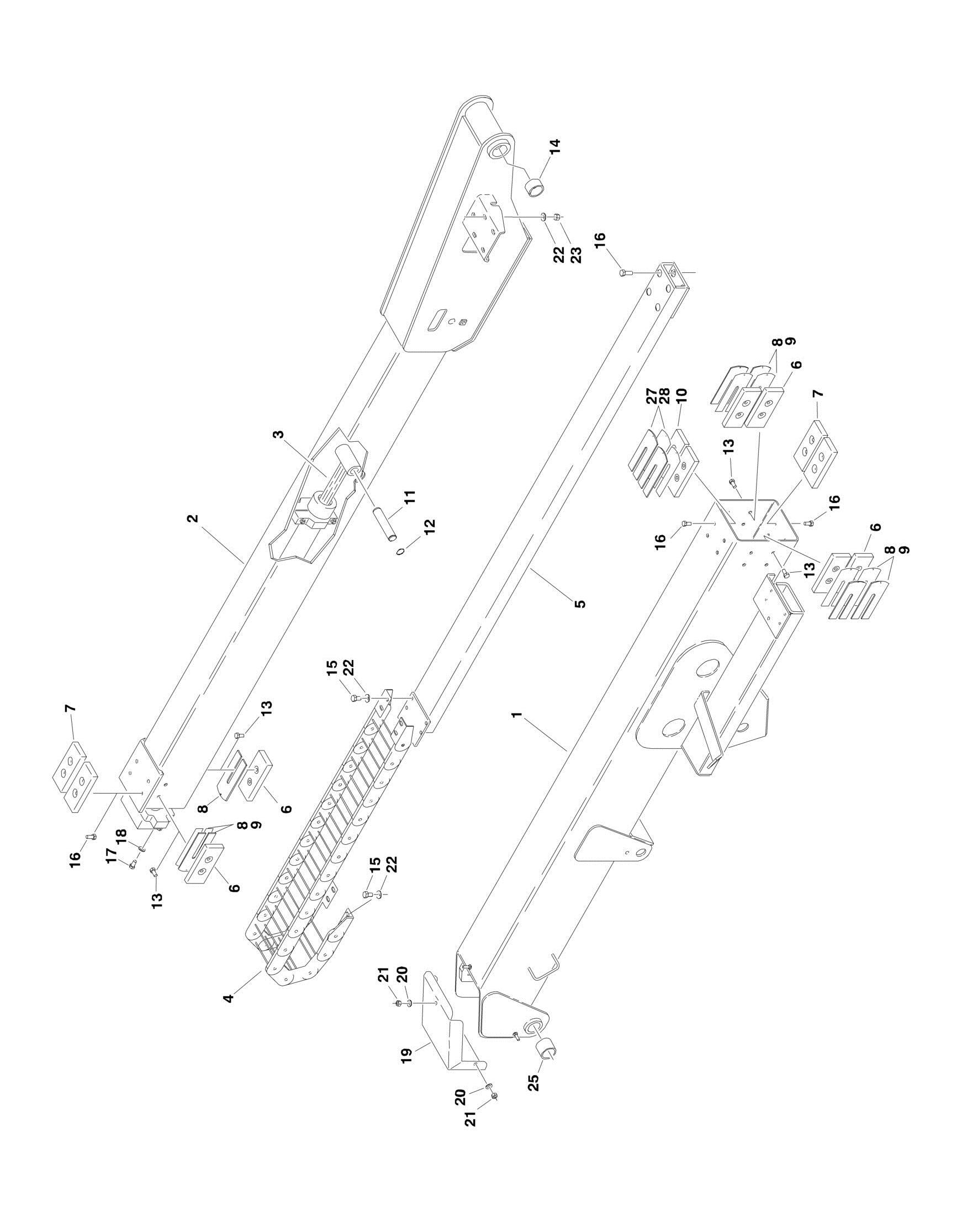

FIGURE 3 2. MAIN BOOM ASSEMBLY (E45A & M45A

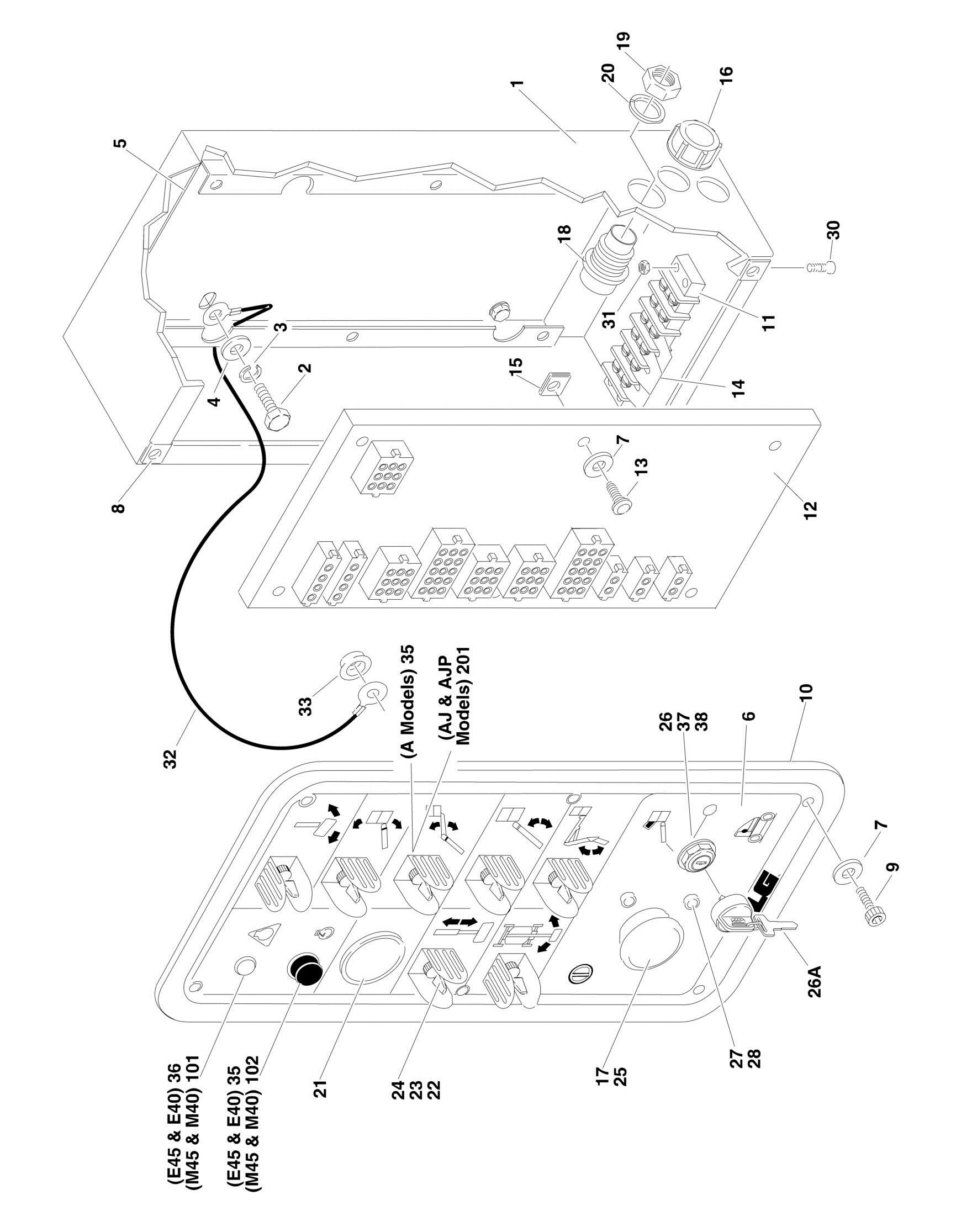

FIGURE 2 7. GROUND CONTROL BOX ASSEMBLY

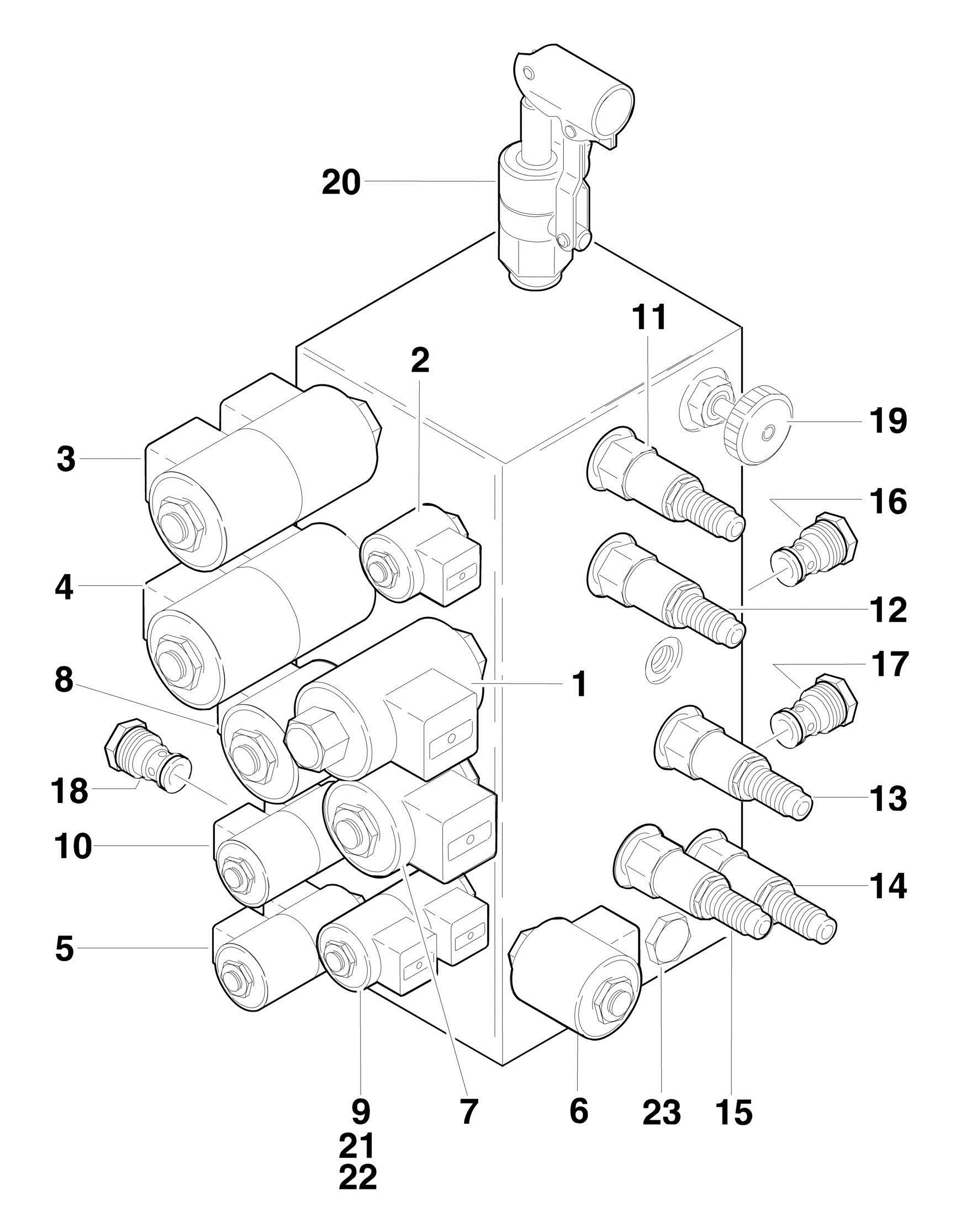

FIGURE 2 2. MAIN CONTROL VALVE ASSEMBLY

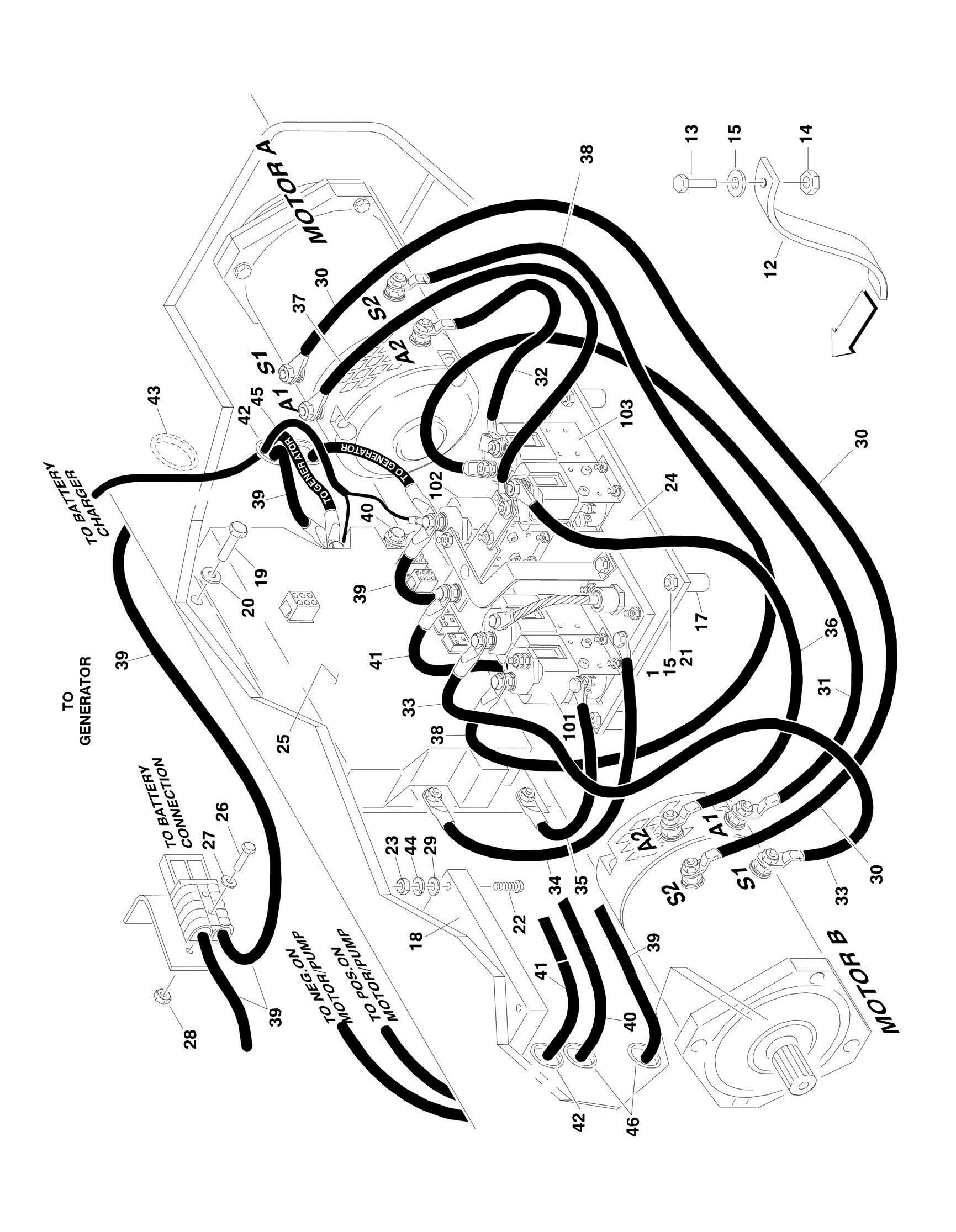

FIGURE 1 9. ELECTRICAL COMPONENTS INSTALLATION (FRAME MOUNTED

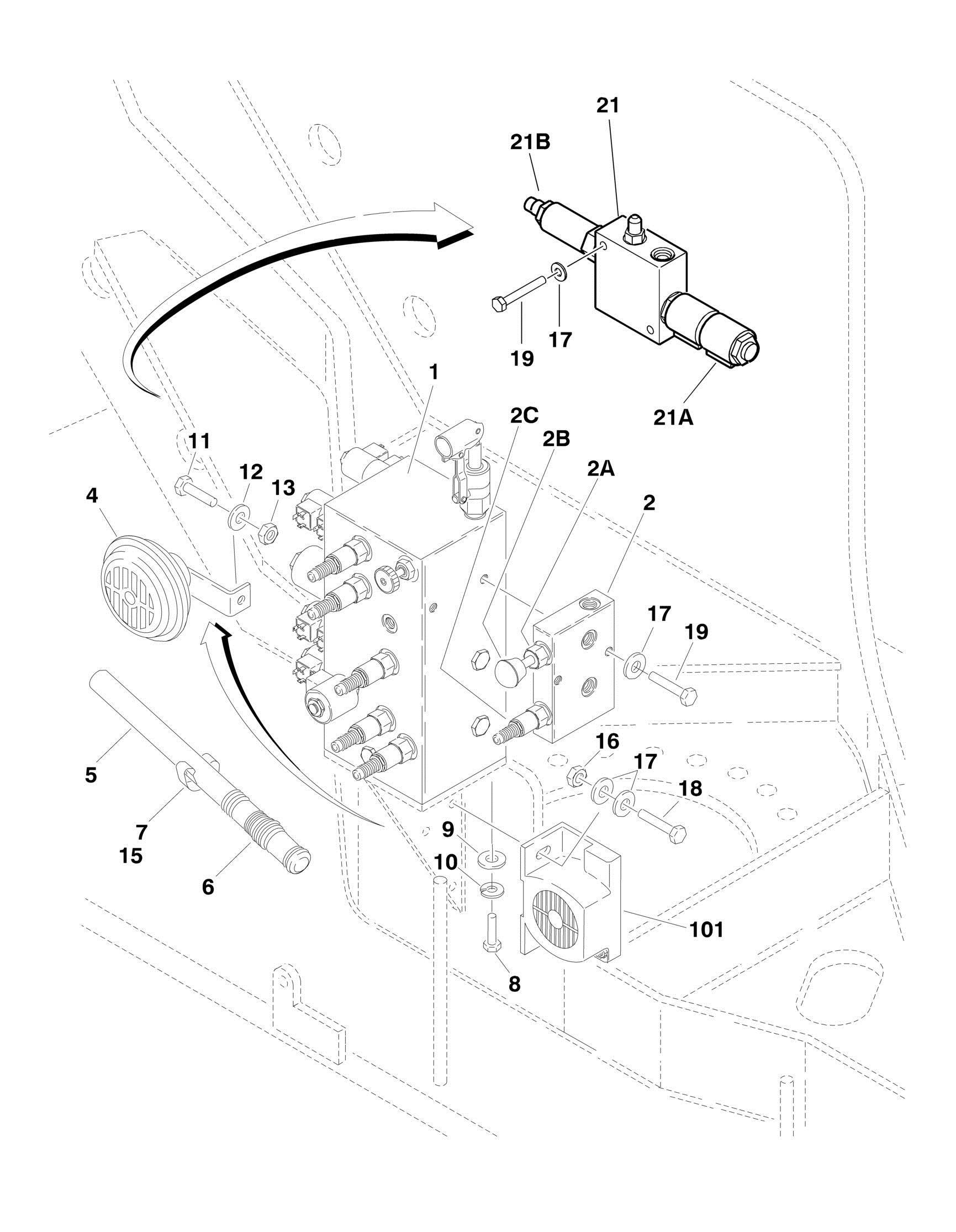

FIGURE 2 1. VALVES AND HORN INSTALLATIONS

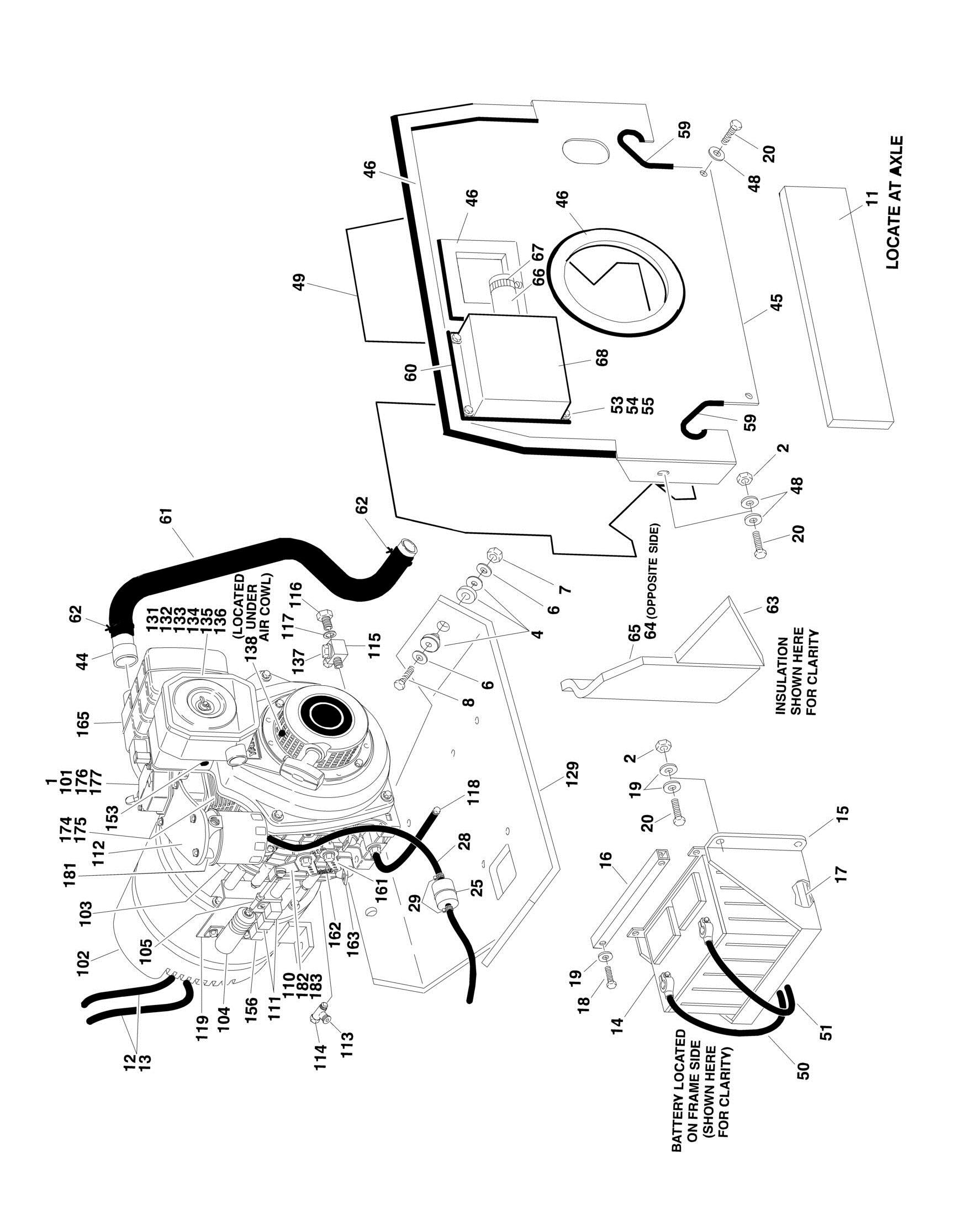

FIGURE 1 10. MOTOR/GENERATOR INSTALLATION (M45 & M40 ONLY

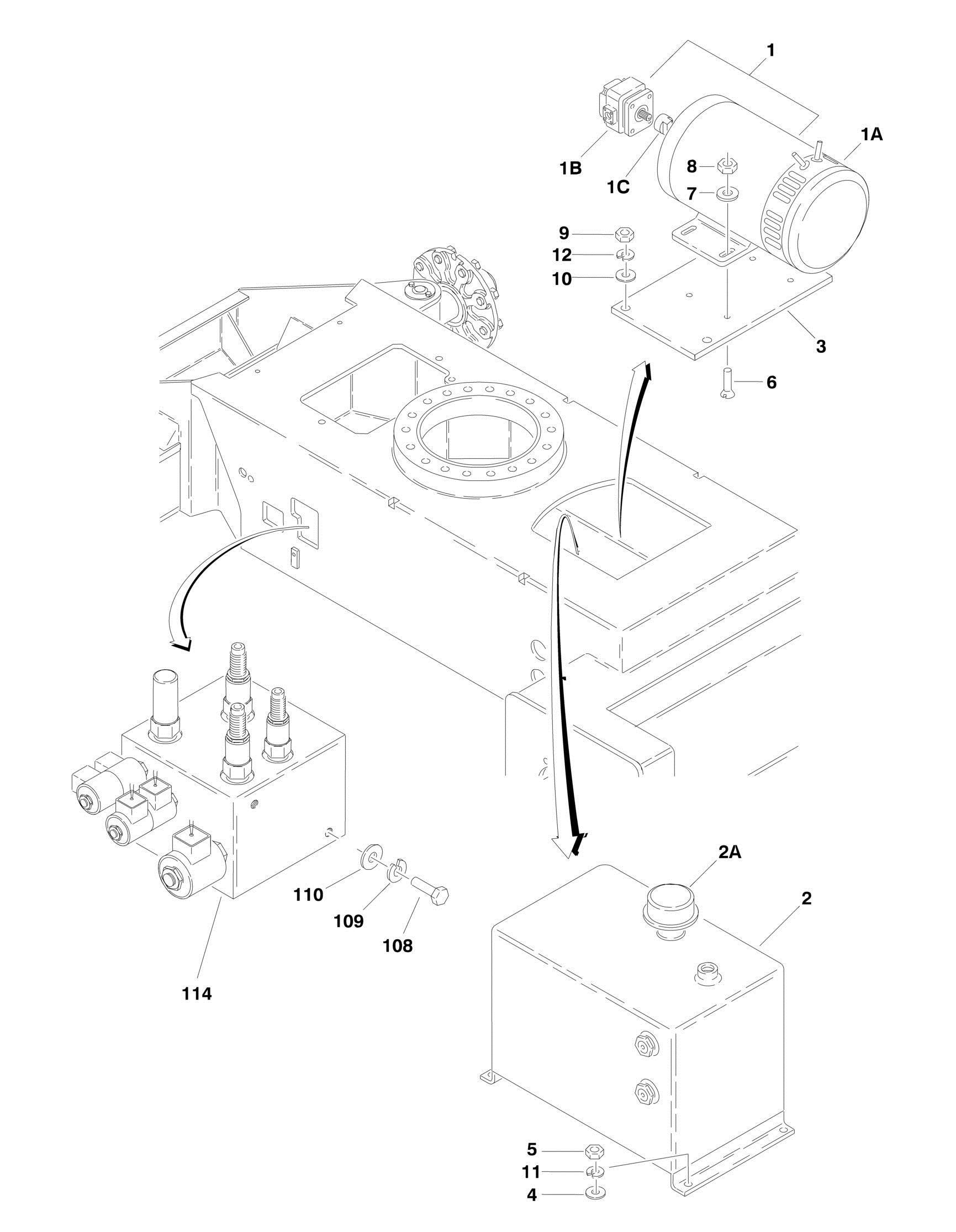

FIGURE 1 4. HYDRAULIC COMPONENTS INSTALLATION

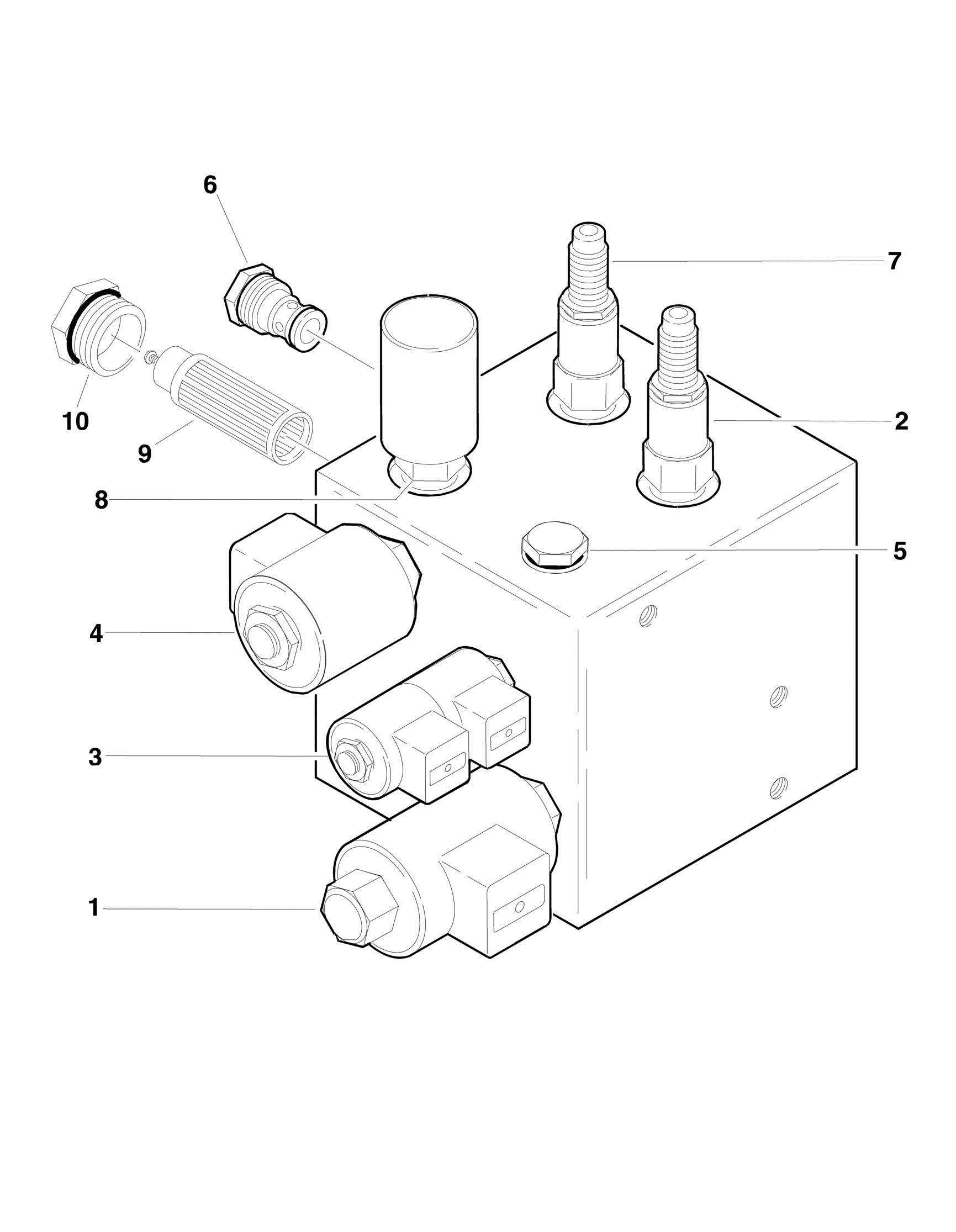

FIGURE 1 5. BRAKE/STEER VALVE ASSEMBLY

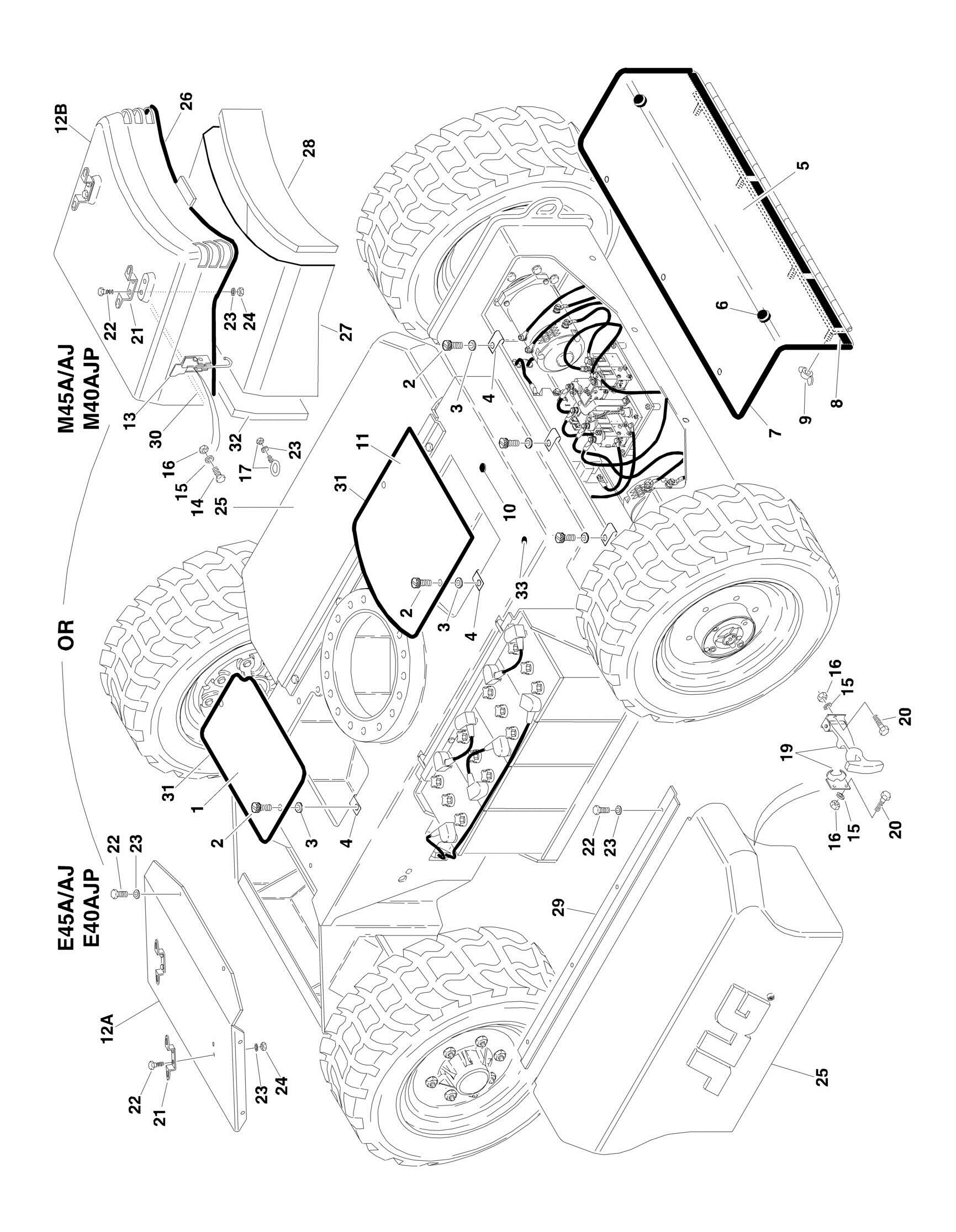

FIGURE 1 11. FRAME COVERS INSTALLATION

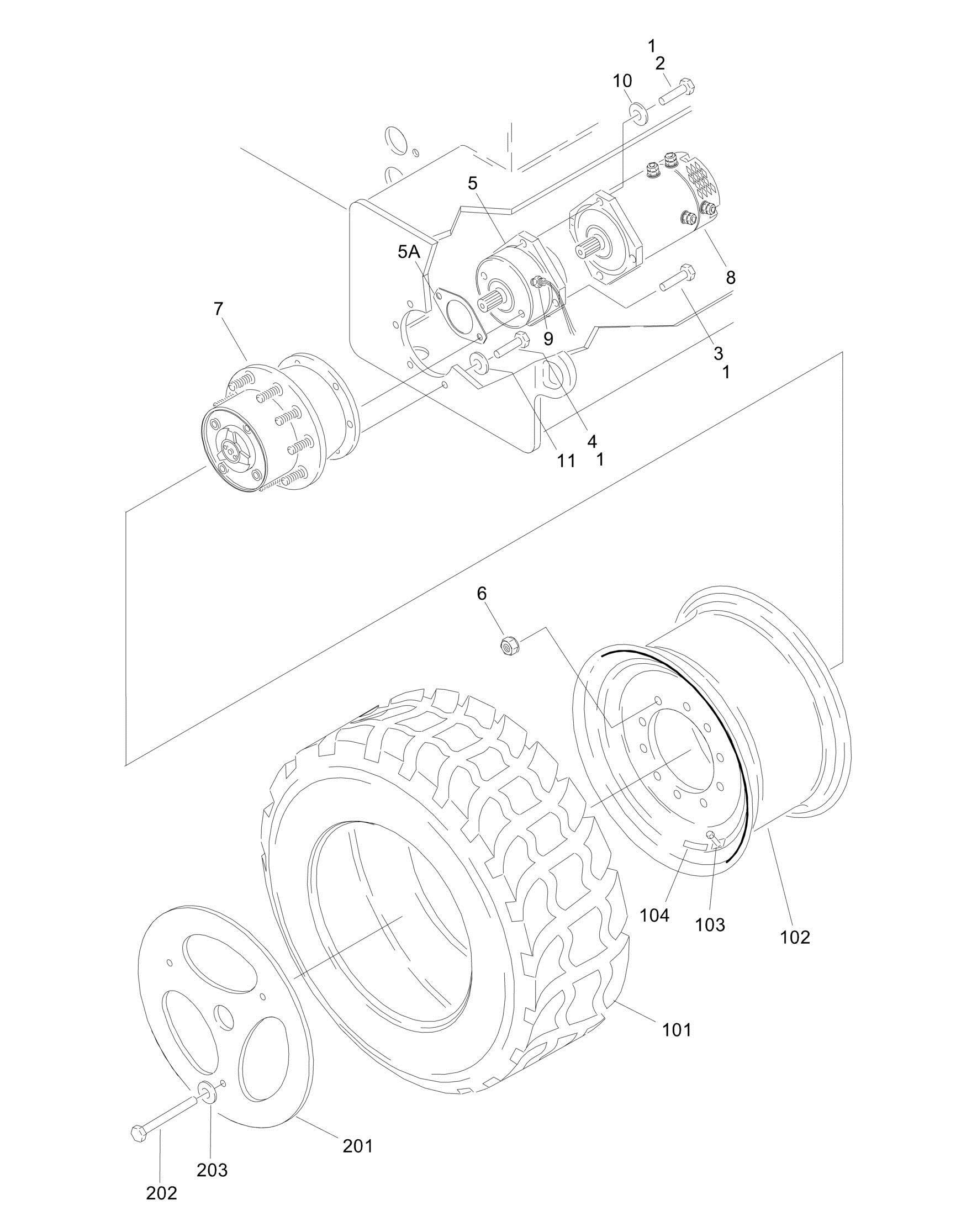

FIGURE 1 2. TIRE AND WHEEL DRIVE INSTALLATION

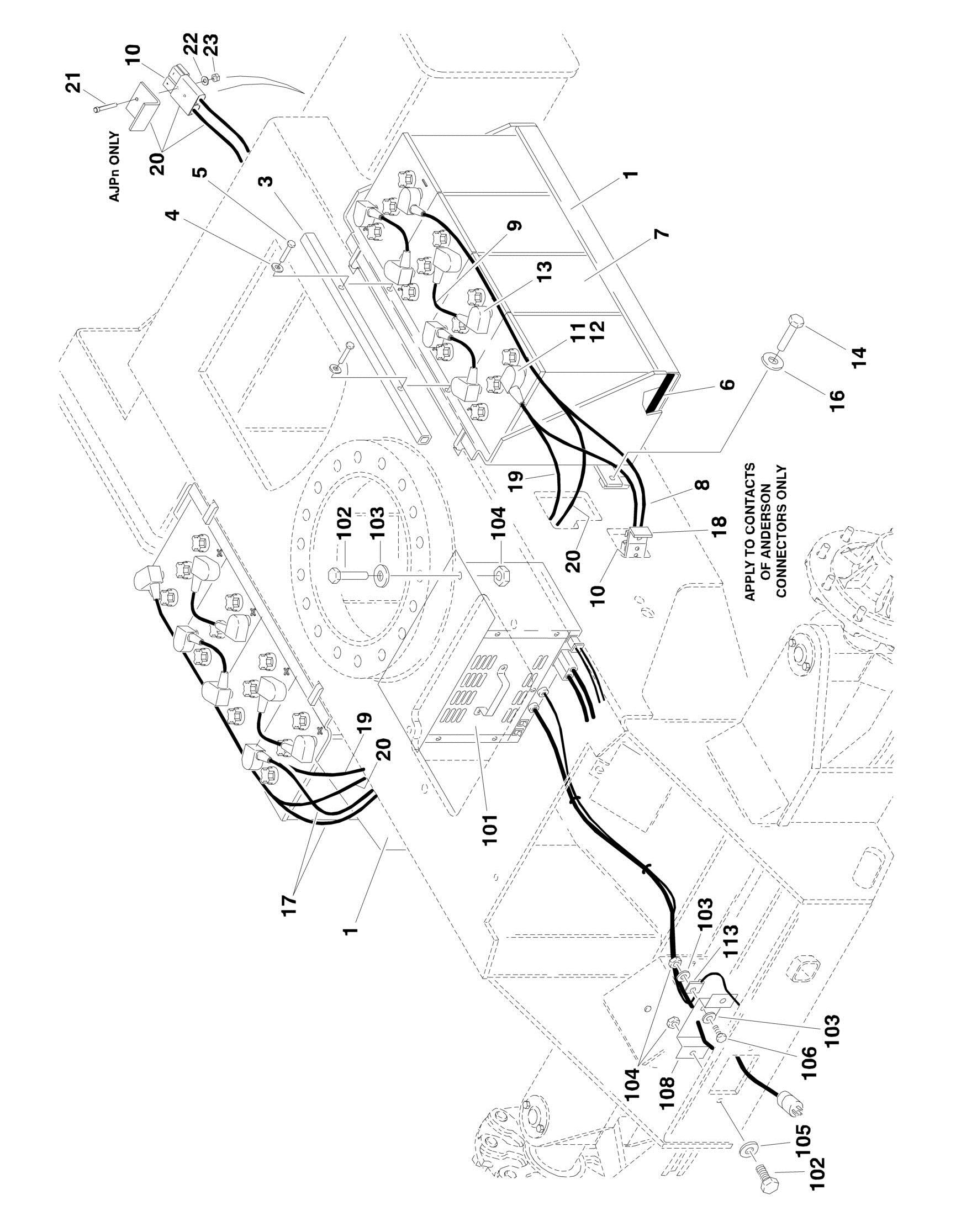

FIGURE 1 6. BATTERIES AND CHARGER INSTALLATIONS
