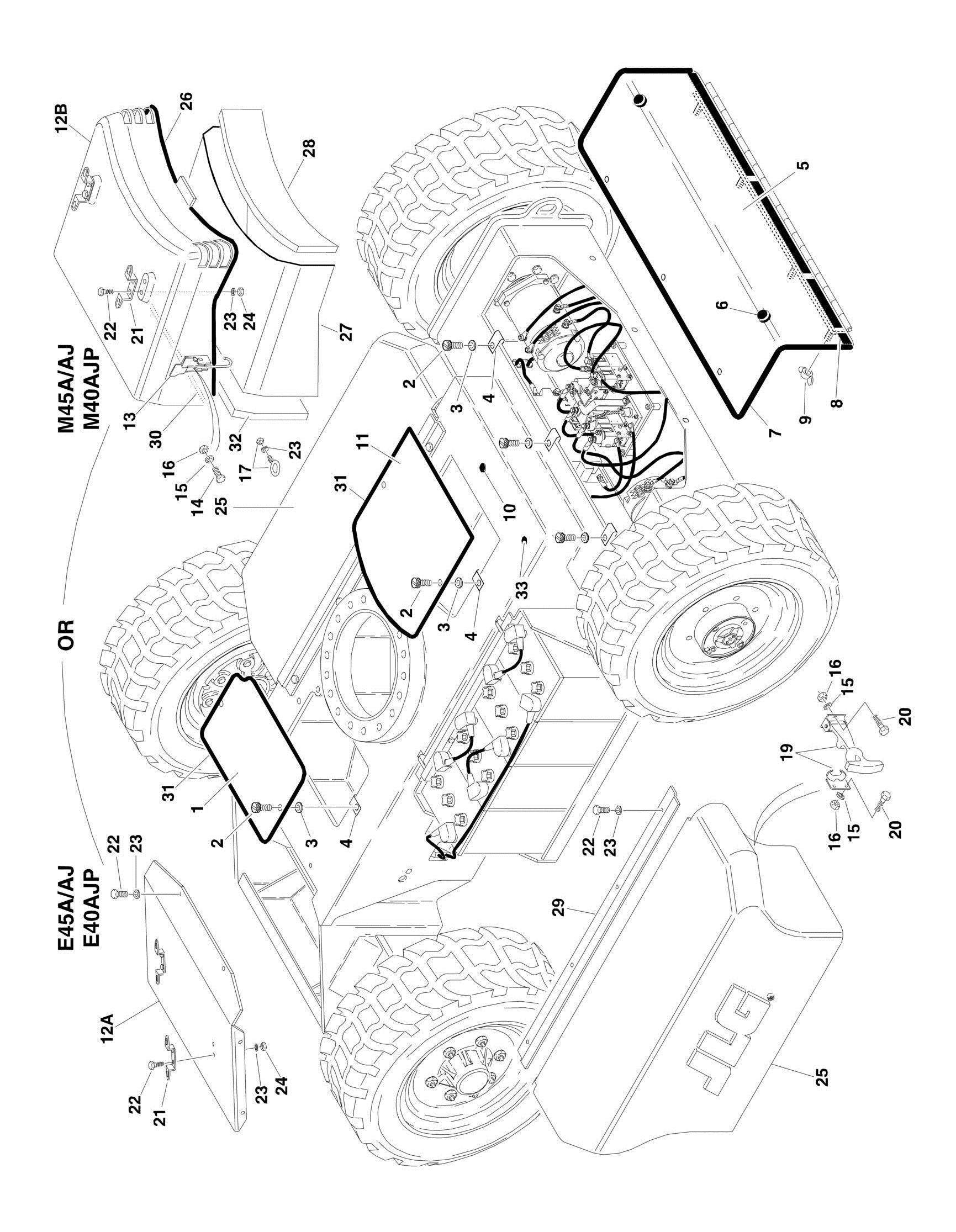

FIGURE 1 11. FRAME COVERS INSTALLATION
FIGURE 1-11. FRAME COVERS INSTALLATION
FIGURE 1-11. FRAME COVERS INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref FRAME COVERS INSTALLATIONS 0258974 Ref Frame Covers Installations E45A, E45AJ & E40AJP 0258035 Ref Frame Covers Installations M45A, M45AJ & M40AJP 0270100 Ref Frame Covers Installations M40AJPnarrow 0270101 Ref Frame Covers Installations E40AJPnarrow 1 3570572 1 Cover, Charger 2 3900174 7 Screw, Special 3 3760308 7 Retainer 4 1380138 1 Cup, Receptacle 5 Ref Axle Cover Options: 5 4844603 1 Axle Cover E45A, E45AJ, E40AJP, M45A, M45AJ & M40AJP 5 4846223 1 Axle Cover M40AJPnarrow & E40AJPnarrow 6 0940036 2 Bumper 7 3960447 93 in/2.4m Seal 8 3960433 39 in/1m Seal 9 3300371 4 Wingnut 10 3520026 2 Plug, Hole 11 3570573 1 Cover, Pump 12 Ref Cover Options: 12A 3571094 1 Cover E45A, E45AJ, E40AJP & E40AJPnarrow 12B 1670880 1 Cover M45A, M45AJ, M40AJP & M40AJPnarrow 13 Ref Latch Options: 13 Not Required 0 Latch E45A, E45AJ, E40AJP & E40AJPnarrow 13 2940115 2 Latch M45A, M45AJ, M40AJP & M40AJPnarrow 14 0721006 AR Screw, Machine #10-24NC x 3/4in 15 Ref Flatwasher Options: 15 4750800 8 Flatwasher E45A, E45AJ 15 4751000 12 Flatwasher M45A, M45AJ, M40AJP, E40AJP, M40AJPnarrow & E40AJPnarrow 16 3311005 12 Locknut #10-24NC 17 0630440 AR Eyebolt 18 0100011 AR Loctite #242 (Not Shown) 19 2940095 4 Latch 20 0721004 16 Screw, Machine #10-24NC x 1/2in 21 2700093 2 Hook 22 0641406 AR Bolt 1/4in-20NC x 3/4in 23 4751400 AR Flatwasher 1/4in 24 3311405 4 Locknut 1/4in-20NC 25 Ref Battery Cover Options: 25 1670879 2 Battery Cover E45A, E45AJ, E40AJP, M45A, M45AJ & M40AJP 25 1670951 2 Battery Cover M40AJPnarrow & E40AJPnarrow 26 Ref Flex-Trim Options: 26 Not Required 0 Flex-Trim E45A, E45AJ, E40AJP & E40AJPnarrow 26 4060804 6 ft/1.8m Flex-Trim M45A, M45AJ, M40AJP & M40AJPnarrow 27 Ref Flex-Trim Options: 27 Not Required 0 Flex-Trim E45A, E45AJ, E40AJP & E40AJPnarrow 27 2820105 1 Flex-Trim M45A, M45AJ, M40AJP & M40AJPnarrow 28 Ref Flex-Trim Options: 28 Not Required 0 Flex-Trim E45A, E45AJ, E40AJP & E40AJPnarrow
REV
4 7 1 2
ITEM PART NUMBER QTY
DESCRIPTION
28 2820106 1 Flex-Trim M45A, M45AJ, M40AJP & M40AJPnarrow 29 0902543 2 Strip, Mounting 30 Ref Seal Options: 30 Not Required 0 Seal E45A, E45AJ, E40AJP & E40AJPnarrow 30 3960389 2.5 Seal M45A, M45AJ, M40AJP & M40AJPnarrow ft/7.6m 31 Ref Seal Options: 31 Not Required 0 Seal E45A, E45AJ, E40AJP & E40AJPnarrow 31 3960417 10 ft/3m Seal M45A, M45AJ, M40AJP & M40AJPnarrow 32 Ref Insulation Options: 32 Not Required 0 Insulation E45A, E45AJ, E40AJP & E40AJPnarrow 32 2820110 1 Insulation M45A, M45AJ, M40AJP & M40AJPnarrow 33 3520082 1 Plug
