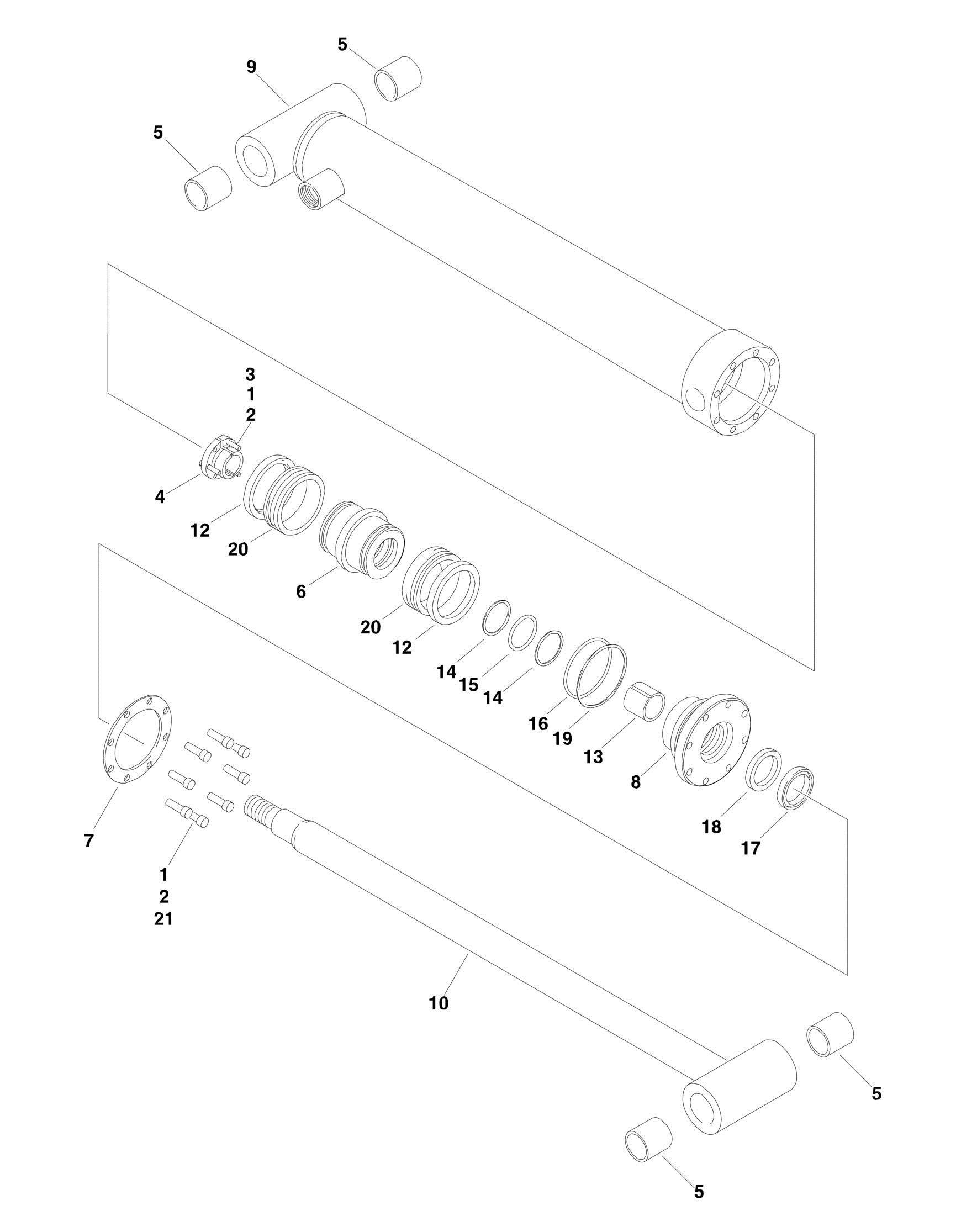

FIGURE 5 8. MASTER CYLINDER ASSEMBLY (AJ & AJP MODELS
ITEM PART NUMBER QTY
DESCRIPTION
Ref MASTER CYLINDER ASSEMBLIES (AJ & AJP MODELS) 1683773 Ref Master Cylinder Assemblies E45AJ & M45AJ 1683923 Ref Master Cylinder Assemblies E40AJP & M40AJP 1 0100011 AR LOCTITE #242 2 0100038 AR Primer, Locking 3 3931016 3 Bolt Socket Head #10-24NC x 1in 4 Ref Tapered Bushing Options: 4 0961900 1 Tapered Bushing E45A & M45A 4 0962185 1 Tapered Bushing E40AJP & M40AJP 5 0961951 4 Bushing, Garmax 6 Ref Piston Options: 6 3480247 1 Piston E45A & M45A 6 3480259 1 Piston E40AJP & M40AJP 7 3760368 1 Washer, Ring 8 Ref Head Options: 8 1683052 1 Head E45A & M45A 8 1683925 1 Head E40AJP & M40AJP 9 1683756 1 Barrel 10 1683772 Rod 12 Kit 2 Ring, Lock 13 Kit 1 Ring, Wear 14 Kit 2 Ring, Back-up 15 Kit 1 O-Ring 16 Kit 1 O-Ring 17 Kit 1 Wiper 18 Kit 1 Seal 19 Kit 1 Ring, Back-up 20 Kit 2 Seal 21 3931516 8 Bolt Socket Head 5/16in-18NC x 1in Ref Seal Kit Options: (Includes Items 12-20) 2901776 1 Seal Kit Options E45A & M45A 2901898 1 Seal Kit Options E40AJP & M40AJP
REV
B B
