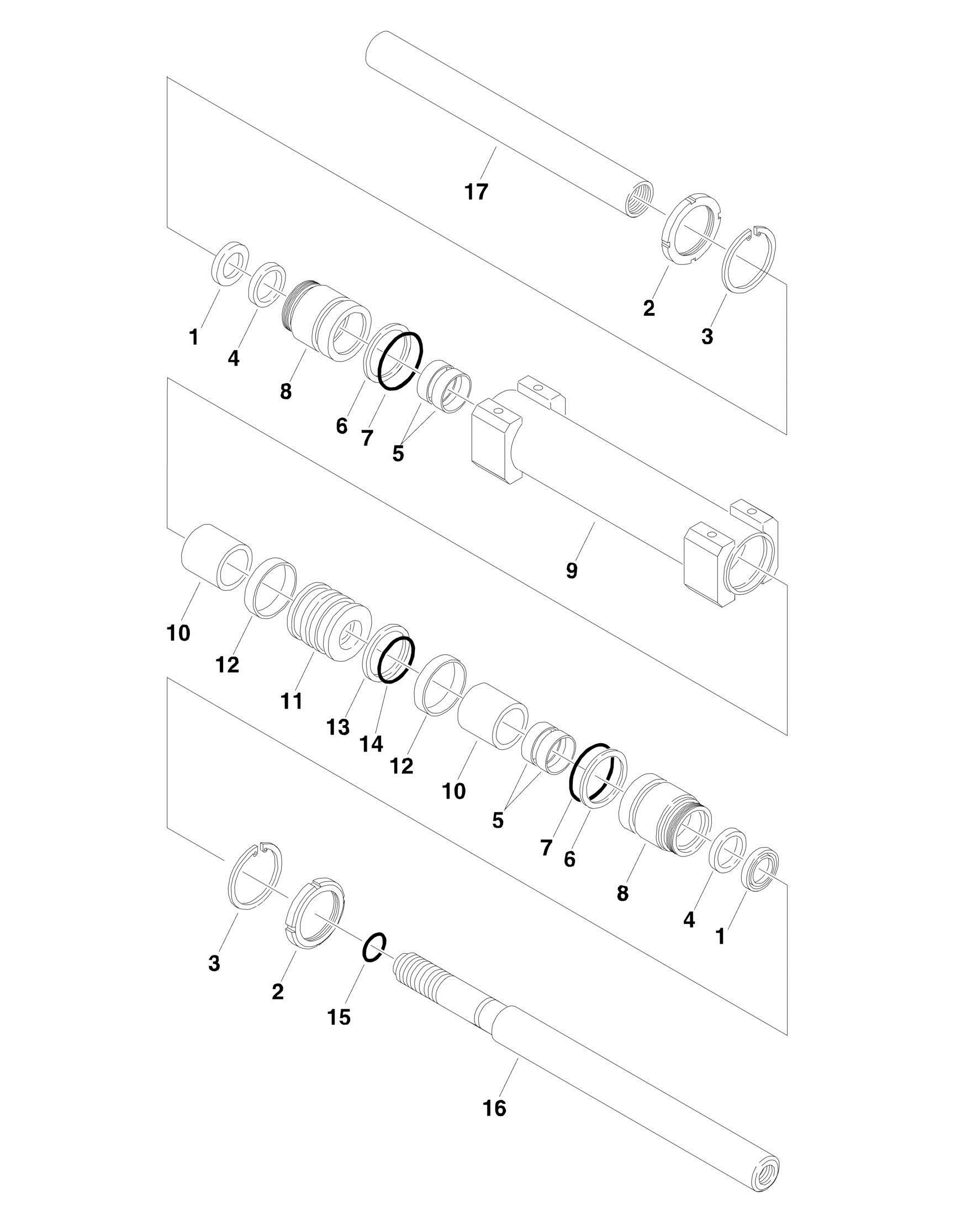

FIGURE 5 10. STEER CYLINDER ASSEMBLY
FIGURE 5-10. STEER CYLINDER ASSEMBLY
FIGURE 5-10. STEER CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1683591 Ref STEER CYLINDER ASSEMBLY 1 Kit 2 Wiper 2 7001630 2 Nut, Spanner 3 7017247 2 Ring, Retaining 4 Kit 2 Seal, Lip 5 Kit 4 Ring, Wear 6 Kit 2 Ring, Back-up 7 Kit 2 O-Ring 8 7017248 2 Guide 9 70003341 1 Barrel Weldment 10 7017249 2 Tube 11 7017250 1 Piston 12 Kit 2 Ring, Wear 13 Kit 1 Seal 14 Kit 1 O-Ring 15 Kit 1 O-Ring 16 7017251 1 Rod (Male End) 17 7017252 1 Rod (Female End) 7017246 1 Seal Kit (Includes Items 1, 4-7 & 12-15)
REV
B
