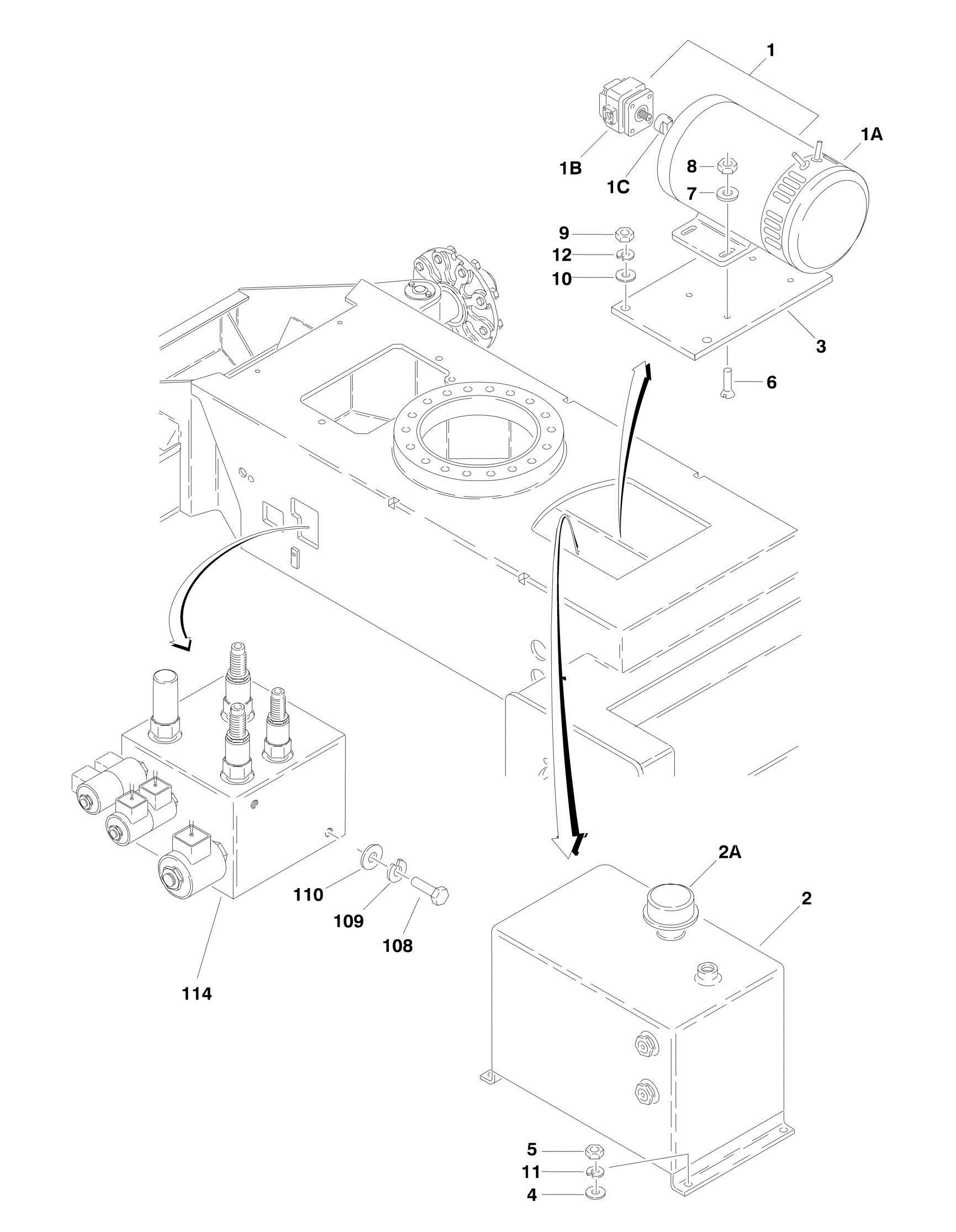

FIGURE 1 4. HYDRAULIC COMPONENTS INSTALLATION

FIGURE 1-4. HYDRAULIC COMPONENTS INSTALLATION

FIGURE 1-4. HYDRAULIC COMPONENTS INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

0257816 Ref HYDRAULIC MOTOR/PUMP/TANK INSTALLATION 1 3600289 1 Motor/Pump Assembly 1A 7021318 1 Motor Assembly 1A 7021368 1 Brush Kit 1B 7021319 1 Pump Assembly 1B Not Available 1 Seal Kit 1C 7021367 1 Coupling 2 4400416 1 Hydraulic Tank Assembly 2A 7021320 1 Cap 3 3571160 1 Plate, Mounting 4 4711400 4 Flatwasher 1/4in Narrow 5 3311405 4 Locknut 1/4in-20NC 6 0741506 4 Screw, Flathead Countersink 5/16in-18NC x 3/4in 7 4751500 4 Flatwasher 5/16in 8 3311505 4 Locknut 5/16in-18NC 9 3311605 2 Locknut 3/8in-16NC 10 4751600 2 Flatwasher 3/8in 11 4761400 4 Lockwasher 1/4in 12 4761600 2 Lockwasher 3/8in Ref VALVES INSTALLATIONS 0258034 Ref Valves Installations E45A & M45A 0259399 Ref Valves Installations E45AJ & M45AJ 0259951 Ref Valves Installations E40AJP, M40AJP, E40AJPnarrow &

M40AJPnarrow

108 0641608 2 Bolt 3/8in-16NC x 1in 109 4711600 2 Flatwasher 3/8in 110 4761600 2 Lockwasher 3/8in 114 Ref Brake/Steer Control Valve Assembly Options: 114 4641149 1 Brake/Steer Control Valve Assembly (was p/n 4641071) (Prior

to SN 47551)

114 4641149 1 Brake/Steer Control Valve Assembly (was p/n 464113) (SN

47551 through 50959)

114 4641149 1 Brake/Steer Control Valve Assembly (See BRAKE/STEER VALVE ASSEMBLY for Breakdown) (SN 50960 to Present) 120 Ref Harness Assembly - Brake/Steer Control Valve Options: (Not Shown -See ELECTRICAL SECTION for Breakdown) 120 4922069 1 Harness Assembly - Brake/Steer Control Valve (Prior to SN

47551)

120 4922328 1 Harness Assembly - Brake/Steer Control Valve (SN 47551 to

Present) REV

4-C

4-C 3-B 3-A
