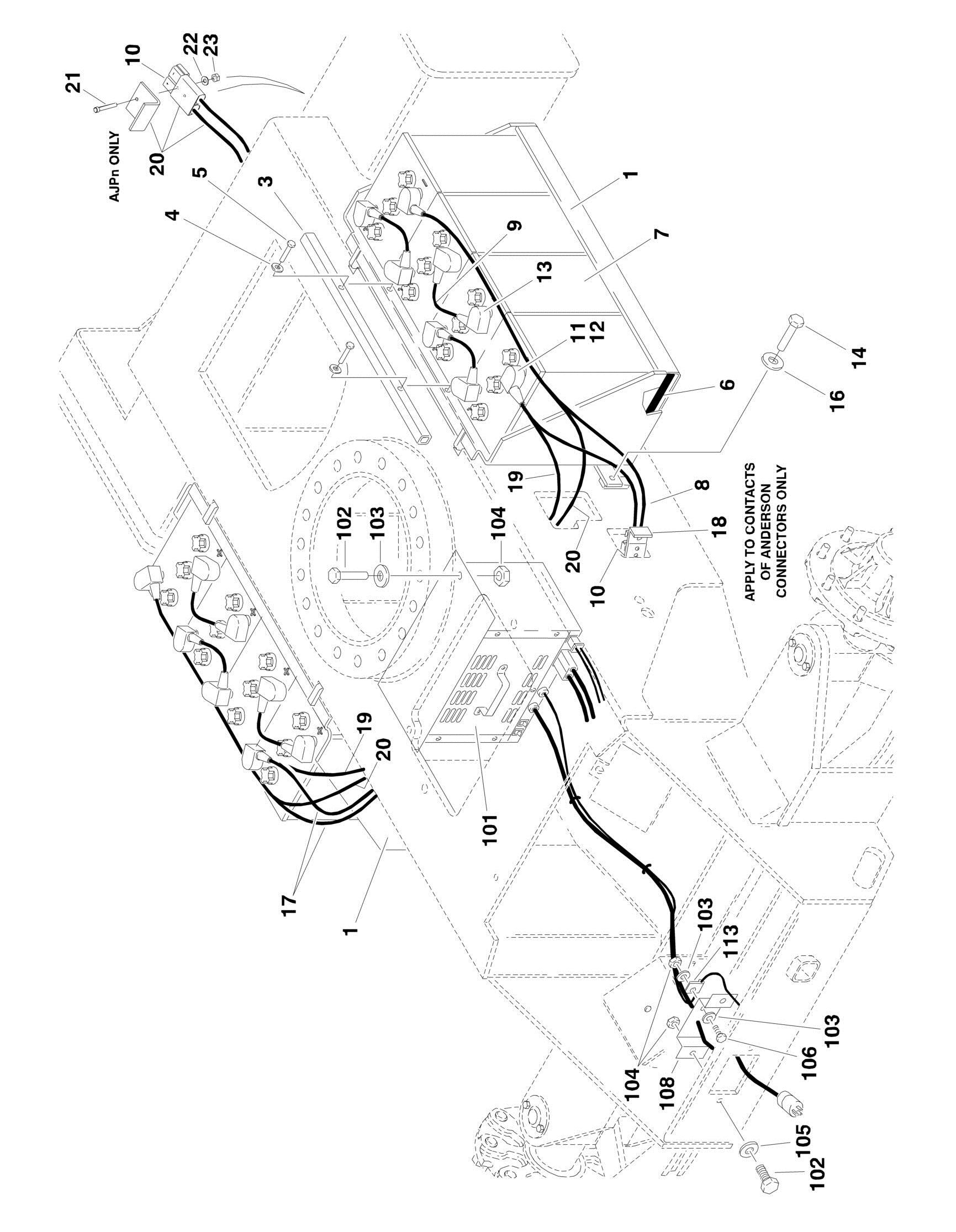

FIGURE 1 6. BATTERIES AND CHARGER INSTALLATIONS
FIGURE 1-6. BATTERIES AND CHARGER INSTALLATIONS
FIGURE 1-6. BATTERIES AND CHARGER INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref BATTERIES INSTALLATION 0258689 Ref Batteries Installation E45A, M45A, E45AJ, M45AJ, E40AJP &
M40AJP REV
2-C
0259763 Ref Batteries Installation E40AJPnarrow & M40AJPnarrow B 1 Ref Battery Box Weldment Options: 1 4845846 2 Battery Box Weldment All Models Except AJPnarrow 1 4846106 1 Battery Box Weldment AJPnarrow (Left Side) 1 4846107 1 Battery Box Weldment AJPnarrow (Right Side) 3 Ref Battery Hold Down Options: 3 4567679 2 Battery Hold Down All Models Except AJPnarrow 3 0182010 2 Battery Hold Dow AJPnarrow 4 4711500 4 Flatwasher 5/16in Narrow 5 0641514 4 Bolt 5/16in-18NC x 1 3/4in 6 3000003 2 Liner, Battery Box 7 Ref Battery Options: 7 0400055 6 Wet 7 7016177 6 Dry 8 Ref Cable, Battery (Left) 8 1060760 1 Cable, Battery (Left) All Models Except AJPnarrow 8 Not Required 0 Cable, Battery (Left) AJPnarrow 9 1060092 6 Cable, Battery 10 0100048 AR Adhesive, Silicone 11 0100051 AR Grease, Terminal 12 0840031 8 Boot, Terminal ("d" shape) 13 0840032 8 Boot, Terminal ("b" shape) 14 0641808 4 Bolt 1/2in-13NC x 1in 16 4711800 8 Flatwasher 1/2in Narrow 17 Ref Cable, Battery (Right) 17 1060761 1 Cable, Battery (Right) All Models Except AJPnarrow 17 Not Required 0 Cable, Battery (Right) AJPnarrow 18 1320172 2 Clamp, Cable 19 Ref Cable, Battery (Battery to Battery) 19 Not Required 0 Cable, Battery (Battery to Battery) All Models Except AJPnarrow 19 1060811 1 Cable, Battery (Battery to Battery) AJPnarrow 20 Ref Cable, Battery (Battery to Clamp) 20 Not Required 0 Cable, Battery (Battery to Clamp) All Models Except AJPnarrow 20 1060809 1 Cable, Battery (Battery to Clamp) AJPnarrow 21 3311405 2 Locknut 1/4in-20NC 22 3931430 2 Capscrew, Socket Head 1/4in-20NC x 1 7/8in 23 4711400 2 Flatwasher 1/4in Narrow Ref BATTERY CHARGER INSTALLATIONS 0259258 Ref CE Spec (110V/220V - 50Hz) (Prior to SN 49542) 2
0259826 Ref CE Spec (110V/220V - 50Hz) (SN 49542 to Present) 0259693 Ref Australian Spec (250V - 50Hz) 101 Ref Battery Charger Assembly Options: (See BATTERY CHARGER ASSEMBLY and BATTERY CHARGER ASSEMBLY for Breakdown) 101 0400192 1 CE Spec (110V/220V - 50Hz) (Prior to SN 49542) 101 0400197 1 CE Spec (110V/220V - Auto Seeking Volts and Hz) (SN 49542
to Present)
2 1
ITEM PART NUMBER QTY
DESCRIPTION
101 0400195 1 Australian Spec (250V - Auto Seeking Hz) 102 0641408 4 Bolt 1/4in-20NC x 1in 103 4711400 6 Flatwasher 1/4in Narrow 104 3311405 5 Locknut 1/4in-20NC 105 4761400 2 Lockwasher 1/4in 106 0641404 1 Bolt 1/4in-20NC x 1/2in 108 Ref Plate, Panel Options: 108 See Note 1 Plate, Panel (Note: Panel and Ammeter Supplied with Charger)
(Prior to SN 49542)
108 3571834 1 Plate, Panel (Uses LED Lights) (SN 49542 to Present) 113 1320136 1 Clamp, Insulated
