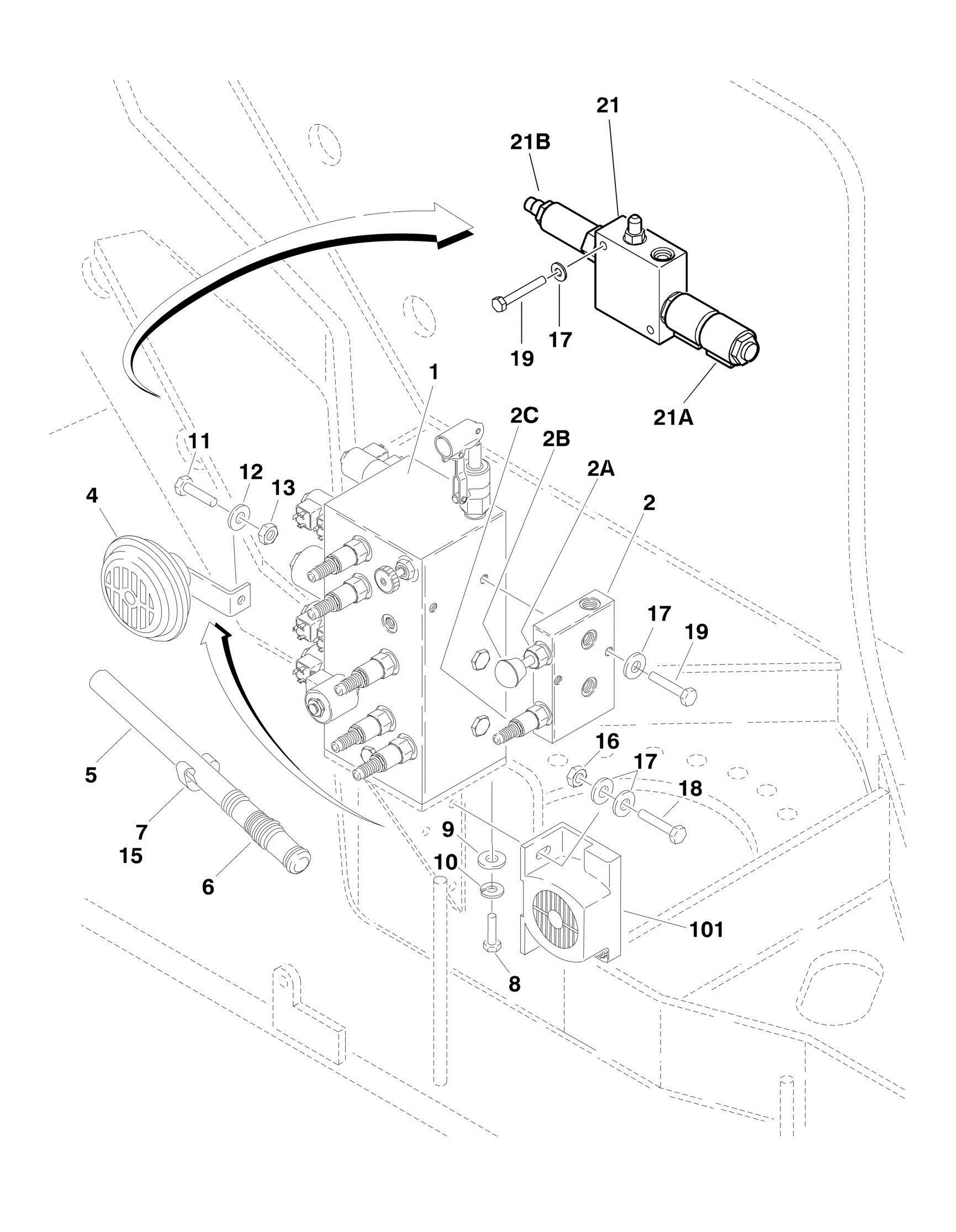

FIGURE 2 1. VALVES AND HORN INSTALLATIONS

FIGURE 2-1. VALVES AND HORN INSTALLATIONS

FIGURE 2-1. VALVES AND HORN INSTALLATIONS

ITEM PART NUMBER QTY

DESCRIPTION

Ref VALVE AND HORN INSTALLATIONS 0258034 Ref Valve and Horn Installations E45A & M45A 0259399 Ref Valve and Horn Installations E45AJ & M45AJ 0259951 Ref Valve and Horn Installations E40AJP, M40AJP, E40AJPnarrow

& M40AJPnarrow

1 4641070 1 Main Control Valve Assembly Options (See MAIN CONTROL VALVE ASSEMBLY for Breakdown) 2 4641029 1 Releveling Valve Assembly 2A 7017466 1 Cartridge 2A 2900708 1 Seal Kit - Cartridge 2B 7012959 1 Knob 2C 7012981 1 Cartridge 2C 7012998 1 Seal Kit - Cartridge 4 0140028 1 Horn 5 2560122 1 Handle 6 2560123 1 Grip, Handle 7 1380136 1 Clip 8 0641608 4 Bolt 3/8in-16NC x 1in 9 4711400 2 Flatwasher 3/8in Narrow 10 4761400 4 Lockwasher 3/8in 11 0641508 1 Bolt 5/16in-18NC x 1in 12 4711500 2 Flatwasher 5/16in Narrow 13 3311505 1 Locknut 5/16in-18NC 15 4300106 1 Stud 16 3311405 AR Locknut 1/4in-20NC 17 4711400 AR Flatwasher 1/4in Narrow 18 0641408 AR Bolt 1/4in-20NC x 1in 19 0641413 AR Bolt 1/4in-20NC x 1 5/8in 21 Ref Jib Valve Assembly Options: 21 Not Required 0 Jib Valve Assembly E45A & M45A 21 4641102 1 Jib Valve Assembly E45AJ & M45AJ 21 4641119 1 Jib Valve Assembly E40AJP, M40AJP, E40AJPnarrow & M40AJPnarrow 21A 7017452 1 Cartridge without Coils 21A 7017402 1 Seal Kit - 701452 Cartridge 21A 7021609 2 Coil 21B Ref Cartridge Options: 21B 7017460 1 Cartridge E45AJ & M45AJ 21B 7017460 1 Cartridge E40AJP, M40AJP, E40AJPnarrow & M40AJPnarrow (was p/n 7021623) 21B 7017461 1 Seal Kit - 7017460 & 7021623 Cartridges 22 0100011 AR Loctite #242 (Not Shown) Ref ALARM INSTALLATIONS 0259064 Ref Motion Alarm 101 0140031 1 Alarm, Motion (Remove ground strap before installation) 101 3311405 2 Locknut 1/4in-20NC 101 4711400 4 Flatwasher 1/4in Narrow 101 0641408 2 Bolt 1/4in-20NC 101 4460685 2 Terminal, Stud Mounted Tab

REV

4-C 3-B 3-A

1
