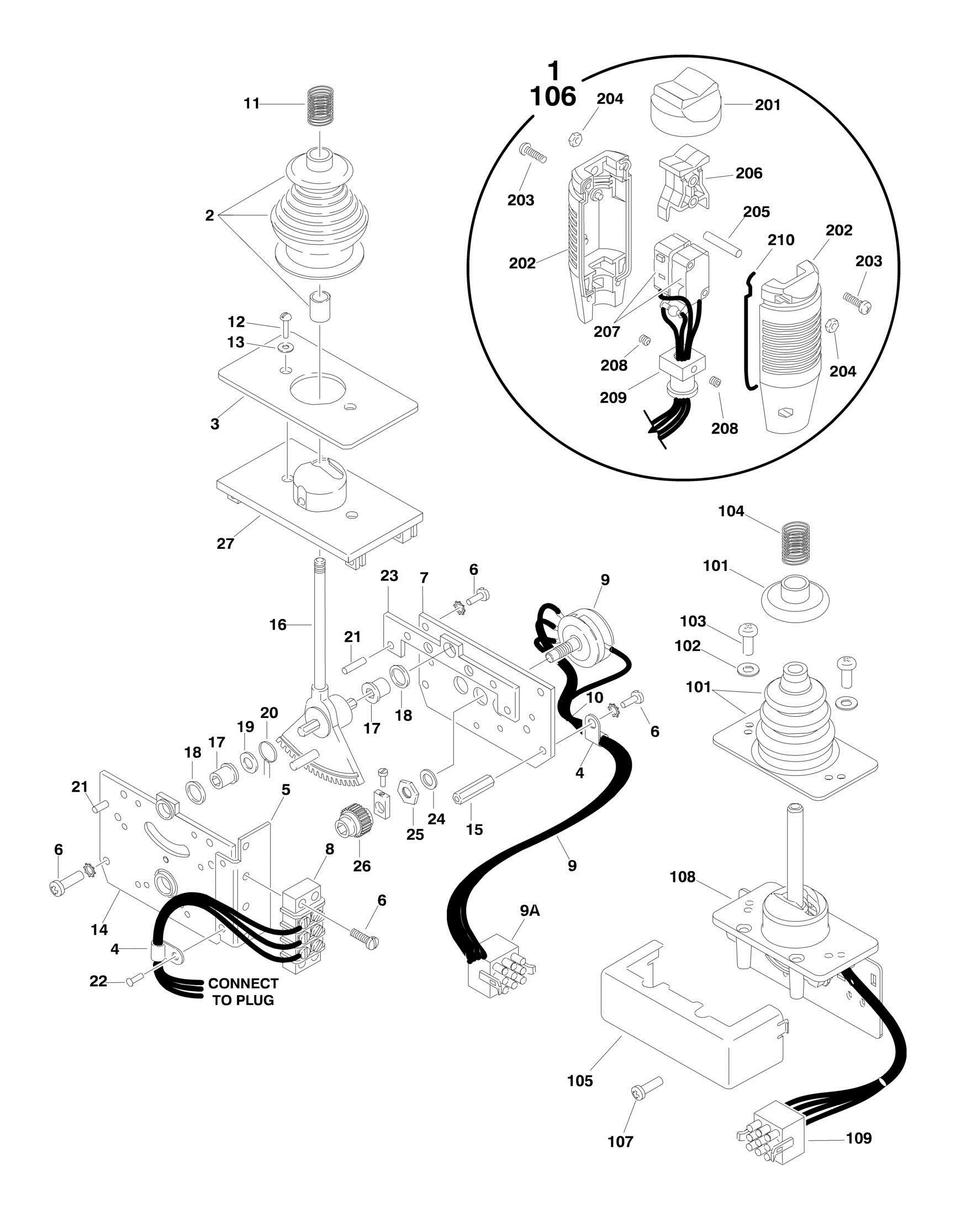

FIGURE 4 5. CONTROLLER ASSEMBLY (DRIVE AND STEER
FIGURE 4-5. CONTROLLER ASSEMBLY (DRIVE AND STEER)
FIGURE 4-5. CONTROLLER ASSEMBLY (DRIVE AND STEER)
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONTROLLER ASSEMBLY 1600273 Ref Controller Assembly (Original Equipment) 1 7022812 1 Handle Assembly (See Items 201-210 for Breakdown) 2 7019161 1 Boot and Sleeve 3 7003933 1 Gasket 4 7019154 2 Clamp, Wire 5 7019159 1 Bracket, Mounting 6 7003994 10 Screw 7 7019157 1 Plate, Pot Mounting 8 7003986 1 Strip, Terminal - 3 Position 9 7019191 1 Electric Assembly 9 7003974 1 Potentiometer 9A 4460265 1 Connector - 9 Position 9A 4460226 7 Socket, Female 10 7019151 AR Tie-Strap 11 7019162 1 Spring 12 7003969 NLA Screw (Note: Use p/n 7003940) 13 7003941 2 Washer 14 7019158 1 Plate, Mounting (Left Side) 15 7019115 2 Stand-Off 16 Not Serviced 1 Shaft 8mm 17 7019111 2 Bearing 18 7019110 2 Spacer, Head Gear 19 7019112 1 Washer 20 7003946 1 Spring, Return 21 7019103 4 Pin 22 Not Serviced 1 Rivet 23 7019168 1 Plate, Mounting (Right Side) 24 7003992 1 Washer 25 7003993 1 Nut 26 7003935 1 Gear, Slave 27 7019160 1 Base 1001118418 Ref Controller Assembly (Service Replacement) 101 70002724 1 Boot and Control Lock Assembly 102 7003941 2 Washer 103 70002725 2 Screw 104 7019162 1 Spring 105 70002726 1 Enclosure 106 70002736 1 Handle Assembly (See Items 201-210 for Breakdown) 107 70002728 1 Screw 108 Not Available 1 Mechanical Assembly 109 4460265 1 Connector - 9 Position 109 4460226 7 Socket, Female Ref HANDLE ASSEMBLIES 7022812 Ref Controller Assembly p/n 1600273 70002736 Ref Controller Assembly p/n 1001118418 201 7003972 1 Boot, Switch 202 7003973 2 Half, Handle 203 7003980 4 Screw 204 7019167 4 Nut
REV
G
B
ITEM PART NUMBER QTY DESCRIPTION
205 7019164 1 Axle 206 7019165 1 Rocker 207 Ref Wiring Assembly Options: 207 7019196 1 Controller Assembly p/n 1600273 207 7019166 2 Switch, Micro 207 70002737 1 Controller Assembly p/n 1001118418 207 7003982 2 Switch, Micro 208 7003983 2 Setscrew 209 7019194 1 Coupling 210 7003989 2 Gasket
