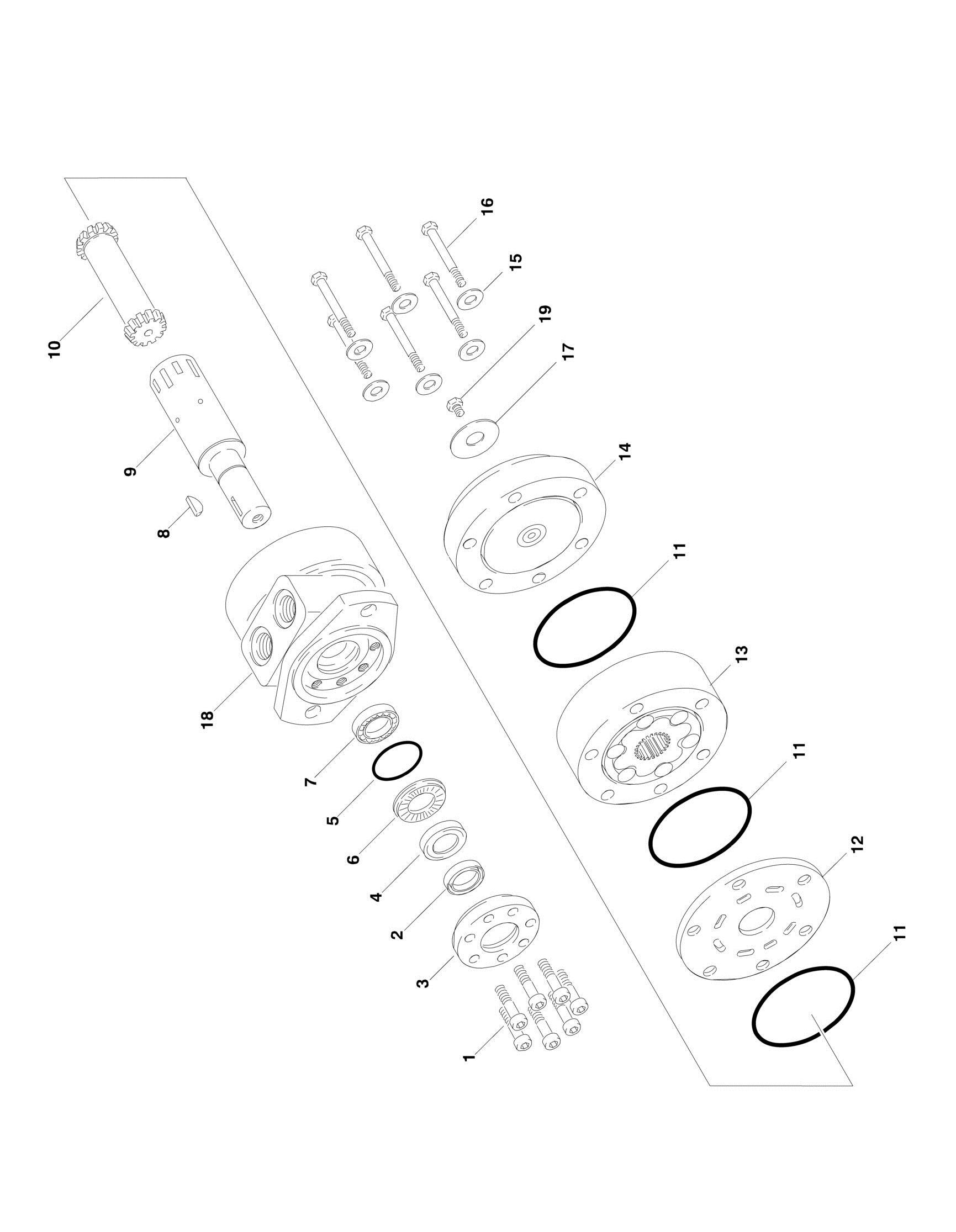

FIGURE 2 4. SWING MOTOR ASSEMBLY
FIGURE 2-4. SWING MOTOR ASSEMBLY
FIGURE 2-4. SWING MOTOR ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
3160233 Ref SWING MOTOR ASSEMBLY 1 Not Serviced 6 Screw, Metric M6 x 20mm 2 Not Serviced 1 Ring, Dust 3 Not Serviced 1 Flange, Spigot 4 Kit 1 Seal, Shaft 5 Kit 1 O-Ring 6 7020128 1 Race, Bearing 7 7020129 1 Bearing, Needle 8 7020126 1 Key, Woodruff 9 Not Available 1 Shaft, Output 10 7020130 1 Shaft 11 Kit 3 O-Ring 12 Not Serviced 1 Plate, Distributor 13 7020131 1 Gear Set 14 Not Serviced 1 Cover, End 15 Not Serviced 6 Washer 16 Not Serviced 6 Screw, Metric M8 x 35mm 17 Not Serviced 1 Nameplate 18 Not Serviced Housing 19 Not Serviced Plug, Drain 7/16in-20NF 7020127 1 Seal Kit (Includes Items 4, 5 & 11)
