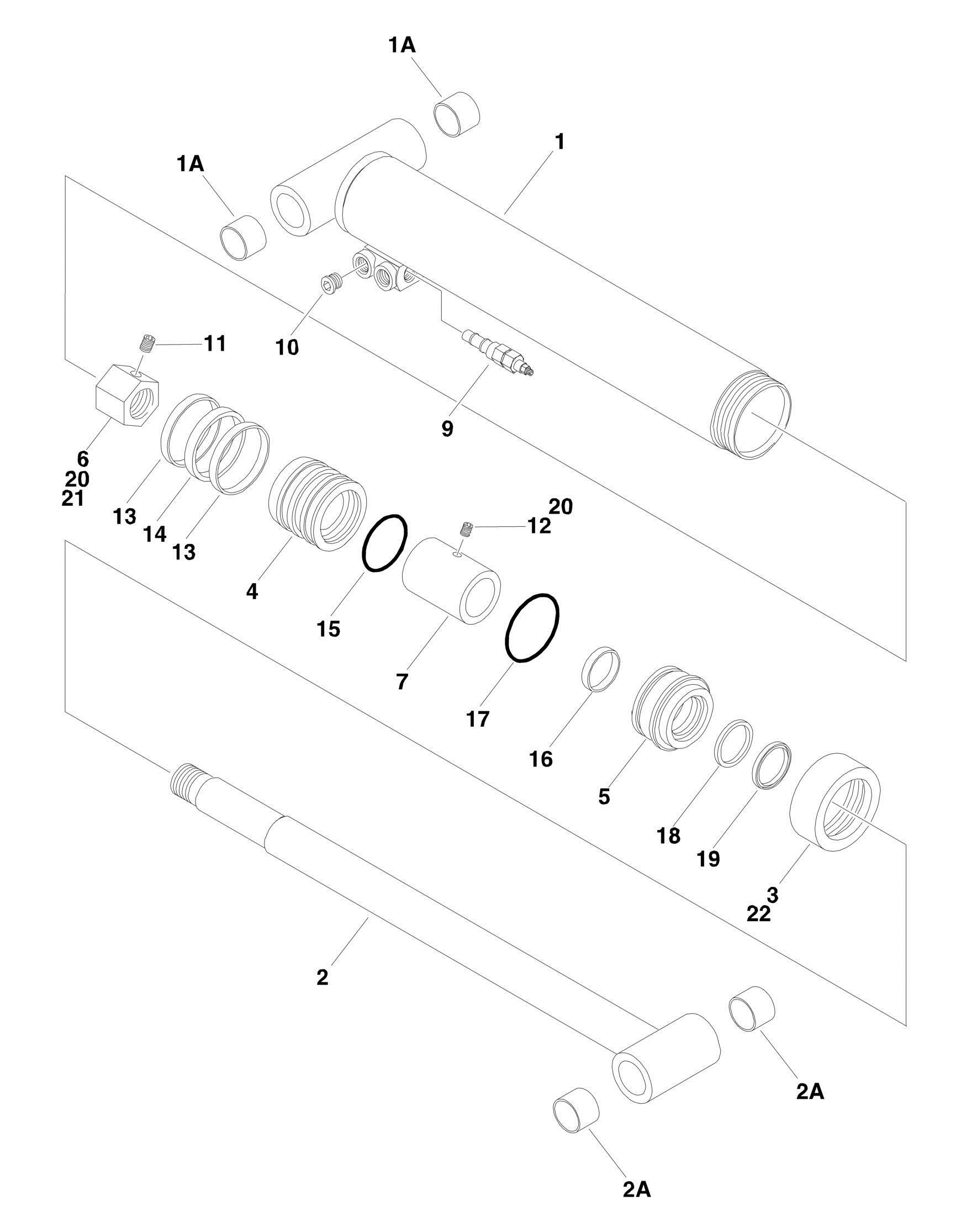

FIGURE 5 6. LIFT CYLINDER ASSEMBLY UPPER

FIGURE 5-6. LIFT CYLINDER ASSEMBLY - UPPER

FIGURE 5-6. LIFT CYLINDER ASSEMBLY - UPPER

ITEM PART NUMBER QTY

DESCRIPTION

Ref UPPER LIFT CYLINDER ASSEMBLIES 1683708 Ref Upper Lift Cylinder Assemblies E45A & M45A 1683813 Ref Upper Lift Cylinder Assemblies E45AJ & M45AJ 1683945 Ref Upper Lift Cylinder Assemblies E40AJP & M40AJP 1 Ref Barrel Weldment Options: 1 1683514 1 Barrel Weldment E45A & M45A 1 1683815 1 Barrel Weldment E45AJ & M45AJ 1 1683946 1 Barrel Weldment E40AJP & M40AJP 1A Ref Bushing Options: 1A 0961726 2 Bushing E45A & M45A 1A 0961950 2 Bushing E40AJP & M40AJP 2 Ref Rod Weldment Options: 2 1683505 1 Rod Weldment E45A & M45A 2 1683817 1 Rod Weldment E45AJ & M45AJ 2 1683947 1 Rod Weldment E40AJP & M40AJP 2A Ref Bushing Options: 2A 0961726 2 Bushing E45A & M45A 2A 0961950 2 Bushing E40AJP & M40AJP 3 1120108 1 Cap, End 4 3480240 1 Piston 5 1683709 1 Head 6 Ref Nut, Hex Options: 6 3300315 1 Nut, Hex E45A & M45A (Was p/n 3300279) (Prior to SN

45523)

6 3300315 1 Nut, Hex E45A & M45A (SN 45523 to Present) 6 3300279 1 AJ and AJP 7 Ref Spacer, Tube Options: 7 4567177 1 Spacer, Tube E45A & M45A 7 4567908 1 AJ and AJP 9 4640936 1 Cartridge, Valve 9 2900770 1 Seal Kit - 4640936 Valve 10 2220885 1 Plug, O-Ring 11 3900170 1 Setscrew 12 Ref Setscrew Options: 12 3951402 1 Setscrew E45A & M45A 12 3900142 1 AJ and AJP 13 Kit 2 Ring, Wear 14 Kit 1 Seal 15 Kit 1 O-Ring 16 Kit 1 Ring, Wear 17 Kit 1 O-Ring 18 Kit 1 Seal 19 Kit 1 Wiper 20 0100011 AR LOCTITE #242 21 0100038 AR Primer, Locking 22 0100035 AR Loctite 2901804 1 Seal Kit - Upper Lift Cylinder (Includes Items 13-19)

REV

2-B 1-A 1-A
