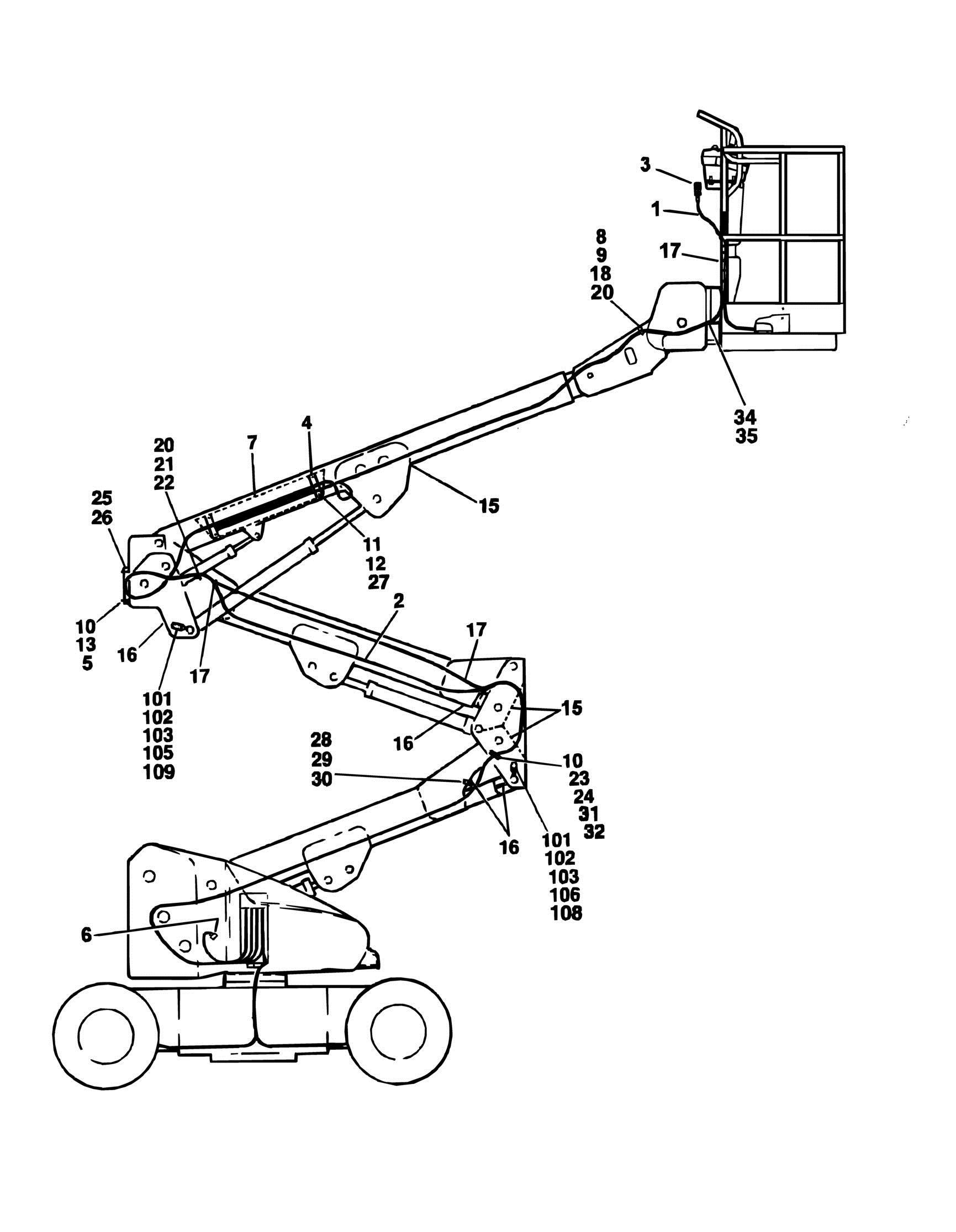

FIGURE 3 9. CABLES/CLAMPS AND LIMIT SWITCHES INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref CABLES AND CLAMPS INSTALLATION 0257735 Ref Cables and Clamps Installation E45A & M45A 0259367 Ref Cables and Clamps Installation E45AJ & M45AJ 0259970 Ref Cables and Clamps Installation E40AJP & M40AJP 1 Ref Harness Assembly - Upper Boom Options: (See ELECTRICAL SECTION for Breakdown) 1 4922178 1 Harness Assembly - Upper Boom E45A & M45A 1 4922364 1 Harness Assembly - Upper Boom E40AJP & M40AJP 2 Ref Harness Assembly - Lower Boom Options: (See ELECTRICAL SECTION for Breakdown) 2 4922179 1 Harness Assembly - Lower Boom E45A & M45A 2 4922363 1 Harness Assembly - Lower Boom E40AJP & M40AJP 3 4460754 1 Connector 4 1320260 2 Block, Hose Clamp 5 0561317 1 Block, Hose Clamp 6 4460753 1 Connector 7 Ref Shield Options: 7 3536999 1 Shield E45A & M45A 7 3571462 1 Shield E45AJ, M45AJ, E40AJP & M40AJP 8 Ref Cover, Clamp Options: 8 1320195 1 Cover, Clamp E45A & M45A 8 Not Required 0 Cover, Clamp E45AJ & M45AJ 9 Ref Clamp Options: 9 1320199 1 Clamp E45A & M45A 9 Not Required 0 Clamp E45AJ & M45AJ 10 4751500 5 Flatwasher 5/16in 11 4751400 12 Flatwasher 1/4in 12 3311401 6 Nut 1/4in-20NC 13 0641514 3 Bolt 5/16in-18NC x 1 3/4in 14 0100011 AR Loctite #242 (Not Shown) 15 4060805 3.6 Trim ft/1.1m 16 4060808 8 ft/2.4m Trim 1/2in 17 4240099 26 Tie-Strap 18 0641520 AR Bolt 5/16in-18NC x 2 1/2in 20 3311505 2 Locknut 5/16in-18NC 21 4566243 1 Roller 22 0641560 1 Bolt 5/16in-18NC x 7 1/2in 23 4300140 2 Stud, Weld 5/16in-18NC x 3 5/8in 24 Ref Hose Clamp Block Options: 24 0561359 1 Hose Clamp Block E45A & M45A (Prior to SN 56080) 24 0561384 1 Hose Clamp Block E45A & M45A (SN 56080 to Present) 24 0561359 1 Hose Clamp Block E45AJ & M45AJ 24 0561384 1 Hose Clamp Block E40AJP & M40AJP 25 1670697 1 Cover, Hose 26 0630467 4 Capscrew, Button 5/16in-18NC x 1/2in 27 3300151 6 Nut, Acorn 1/4in - 20NC 28 1320040 1 Clamp, Cable 29 0641410 1 Bolt 1/4in-20NC x 1 1/4in 30 3311405 1 Locknut 1/4in-20NC
REV
4-D 1-B 2-A
ITEM PART NUMBER QTY
DESCRIPTION
31 Ref Hose Clamp Block Options: 31 0561360 1 Hose Clamp Block E45A & M45A 31 0561385 1 Hose Clamp Block E40AJP & M40AJP 32 Ref Hose Clamp Block Options: 32 0561361 1 Hose Clamp Block E45A & M45A 32 0561386 1 Hose Clamp Block E40AJP & M40AJP 33 0100019 AR Loctite #271 (Not Shown) 34 Ref Clamp Options: 34 1320095 1 Clamp E45A, M45A, E45AJ & M45AJ (SN 45407 through
49944)
34 Not Required 0 Clamp E45A & M45A (SN 49945 to Present) 34 1320095 1 Clamp E45AJ & M45AJ (SN 49945 to Present) 34 Not Required 0 Clamp E40AJP & M40AJP 35 Ref Sleeve Options: 35 Not Required 0 Sleeve E45A, M45A, E45AJ & M45AJ (Prior to SN 49945) 35 4100065 1 Sleeve E45A & M45A (SN 49945 to Present) 35 Not Required 0 Sleeve E45AJ & M45AJ (SN 49945 to Present) 35 Not Required 0 Sleeve E40AJP & M40AJP Ref LIMIT SWITCHES INSTALLATION 0254875 Ref Limit Switches Installation E45A & M45A 0253704 Ref Limit Switches Installation E40AJP & M40AJP 101 4360321 2 Switch, Limit 102 4460428 2 Connector, Strain Relief 103 3311005 4 Locknut #10-24NC 105 3900246 2 Screw, Filister Head #10-24NC x 1 3/4in 106 3900104 2 Screw, Filister Head #10-24NC x 2 1/4in 107 1060341 AR Cable, Electrical - 16/2 108 1670832 1 Cover, Switch Lower Only (SN 33795 to Present) 109 1670833 1 Cover, Switch Upper Only (SN 33795 to Present)
REV
4 5
