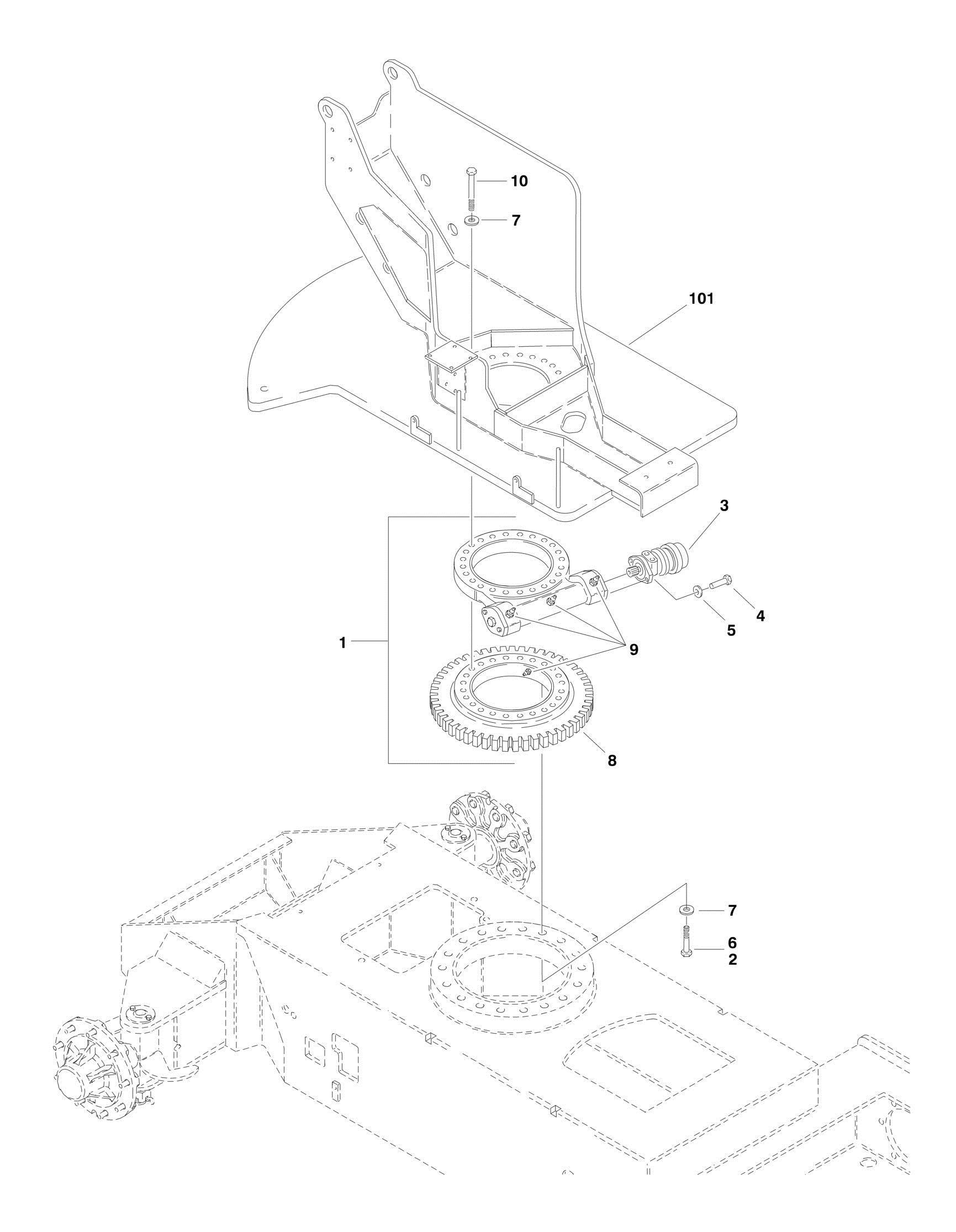

FIGURE 2 3. TURNTABLE AND SWING DRIVE INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
0258653 Ref TURNTABLE BEARING AND SWING INSTALLATION 1 0440203 1 Turntable Bearing and Rotation Box Assembly (See SWING BEARING ASSEMBLY for Breakdown) 2 0100019 AR Loctite 3 3160233 1 Swing Motor Assembly (See SWING MOTOR ASSEMBLY for Breakdown) 4 0681814 2 Bolt 1/2in-13NC x 1 3/4in (Grade 8) 5 4740171 2 Washer, Hardened 6 0682026 18 Bolt 5/8in-11NC x 3 1/4in (Grade 8) 7 4740393 42 Washer, Hardened 8 3020036 AR Lube 9 3020029 AR Grease, Bearing 10 0682028 24 Bolt 5/8in-11NC x 3 1/2in (Grade 8) 101 Ref TURNTABLE WELDMENTS 101 4620118 1 Turntable Weldments E45A & M45A 101 4620124 1 Turntable Weldments E45AJ, M45AJ, E40AJP, E40AJPnarrow, M40AJP & M40AJPnarrow
REV
1-A
