FIGURE 3 3. MAIN BOOM ASSEMBLY (E45AJ & M45AJ

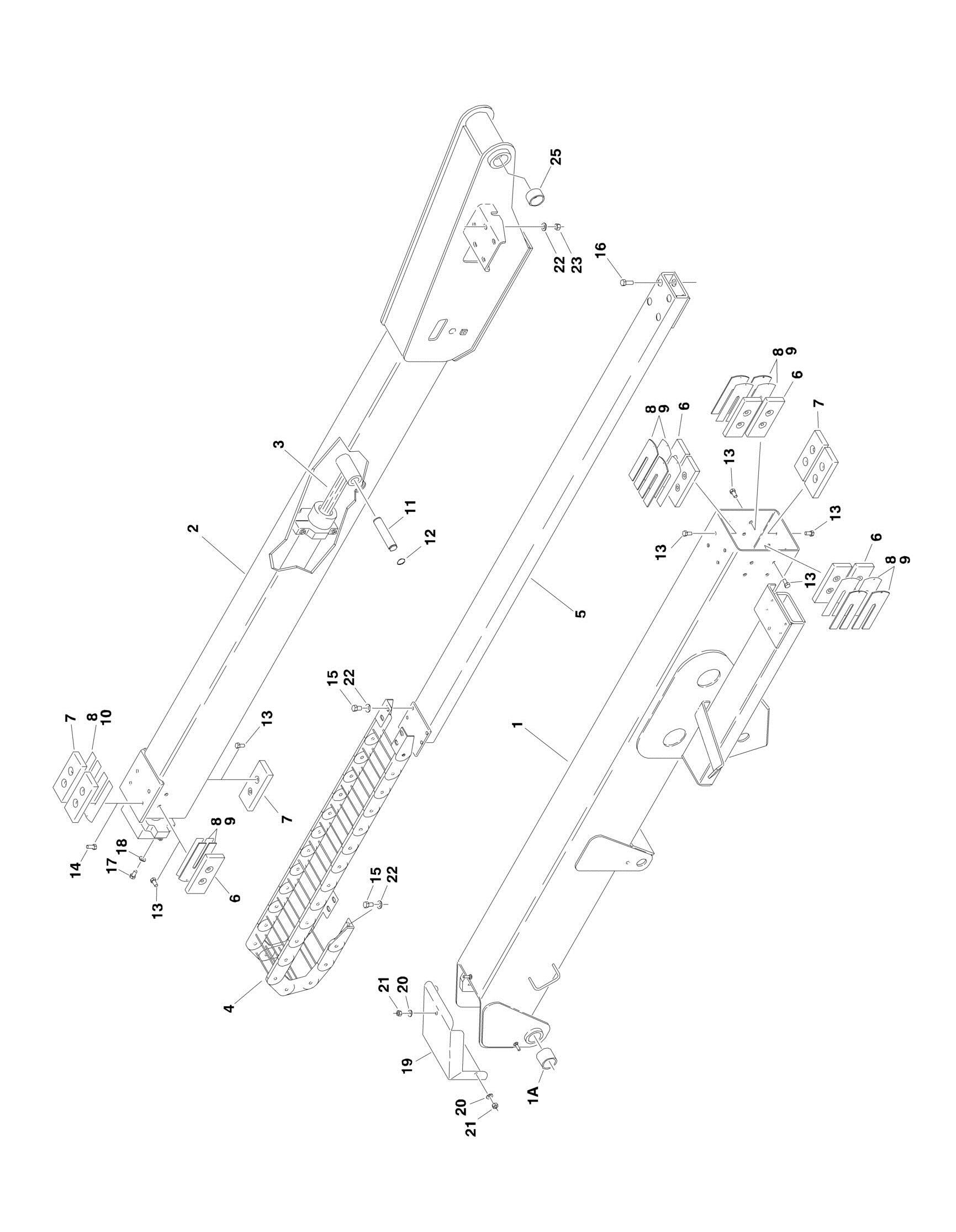

FIGURE 3-3. MAIN BOOM ASSEMBLY (E45AJ & M45AJ)

FIGURE 3-3. MAIN BOOM ASSEMBLY (E45AJ & M45AJ)

ITEM PART NUMBER QTY

DESCRIPTION

0801197 Ref MAIN BOOM ASSEMBLY (E45AJ & M45AJ) 1 0801198 1 Base Weldment 1A 0961726 2 Bearing 2 0801192 1 Fly Weldment 3 1683798 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) 4 1180352 1 Powertrack Assembly 4 7006139 AR 1ft Repair Section 4 7006151 AR Feet, Mounting 4 7006152 AR Pin Kit (Includes 1 Link Pin, 4 Different Size Washers and 1 Retaining Ring) 5 4846033 1 Pushtube Weldment 6 3340756 8 Pad, Wear (Base Front Top and Sides/Fly Rear Sides) 7 3340837 5 Pad, Wear (Base Bottom/Fly Rear Top and Bottom) 8 4070897 10 Shim 18 Gauge 9 4070898 8 Shim 16 Gauge 10 4070982 2 Shim 11 Gauge 11 3422804 1 Pin 12 3760115 2 Ring, Snap 13 0641606 22 Bolt 3/8in-16NC x 3/4in 14 0641607 4 Bolt 3/8in-16NC x 7/8in 15 0641605 8 Bolt 3/8in-16NC x 5/8in 16 0641608 24 Bolt 3/8in-16NC x 1in 17 0641818 4 Bolt 1/2in-13NC x 2 1/4in 18 4761800 4 Lockwasher 1/2in 19 1670678 1 Cover, Boom 20 4761600 3 Lockwasher 3/8in 21 3311401 3 Nut 1/4in-20NC 22 4711600 12 Flatwasher 3/8in 23 3311605 4 Locknut 3/8in-16NC 24 0100011 AR Loctite #242 (Not Shown) 25 0961948 4 Bearing, Garmax

REV

2-B
