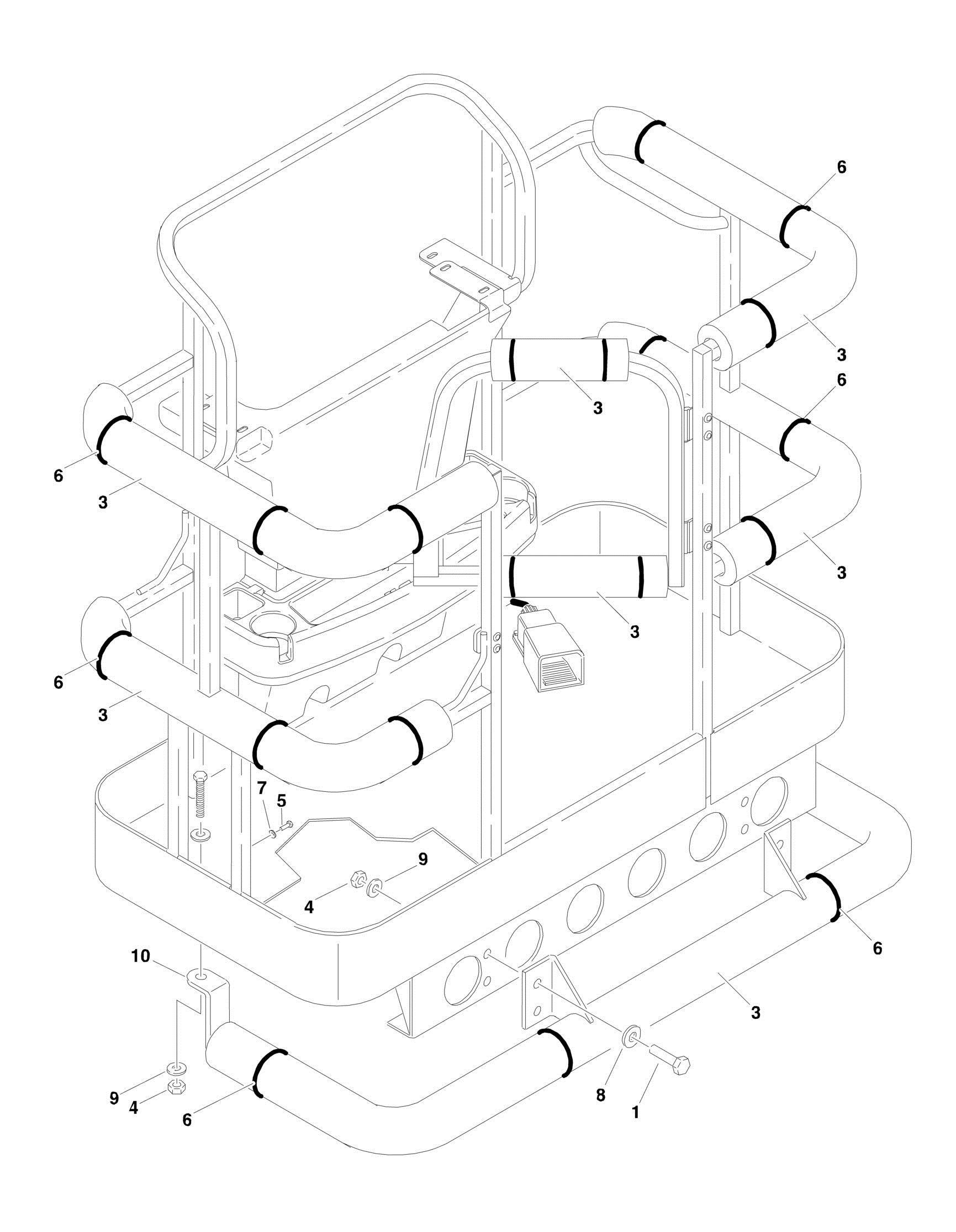

FIGURE 4 2. PLATFORM PADDING INSTALLATION

FIGURE 4-2. PLATFORM PADDING INSTALLATION

FIGURE 4-2. PLATFORM PADDING INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

0270338 Ref PLATFORM PADDING INSTALLATION 1 0641508 4 Bolt 5/16in-18NC x 1in 2 0641516 2 Bolt 5/16in-18NC x 2in 3 0940038 24 ft/7.3m Padding 4 3311501 6 Nut 5/16in-18NC 5 3941405 2 Screw, Self Tapping 1/4in-20NC x 5/8in 6 4240099 AR Tie, Wire 7 4711400 2 Flatwasher 1/4in 8 4751500 6 Flatwasher 5/16in (Wide) 9 4761500 6 Lockwasher 5/16in 10 4844917 1 Rail, Bumper
