FIGURE 5 1. JIB CYLINDER ASSEMBLY (AJ & AJP

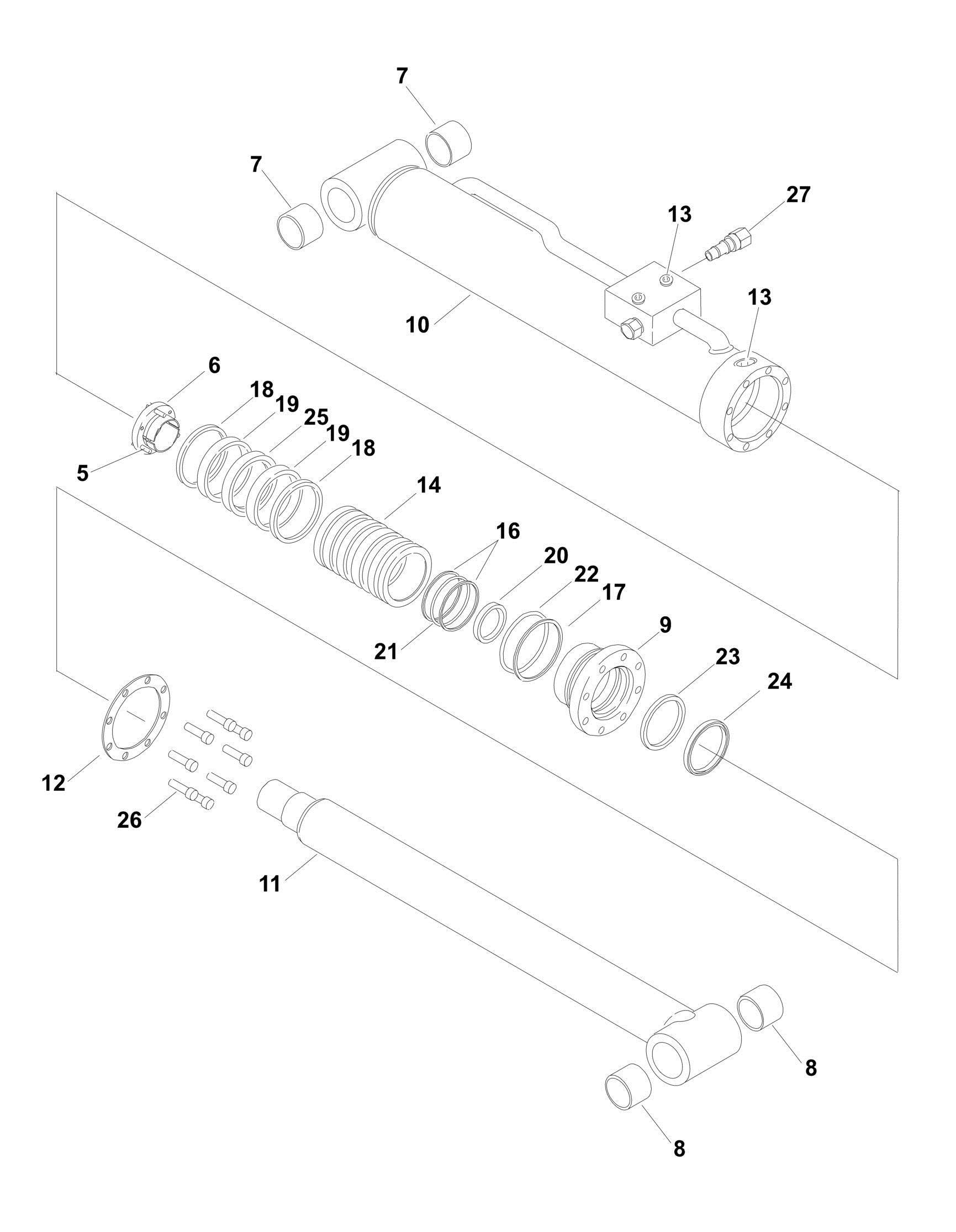

FIGURE 5-1. JIB CYLINDER ASSEMBLY (AJ & AJP)

FIGURE 5-1. JIB CYLINDER ASSEMBLY (AJ & AJP)

ITEM PART NUMBER QTY

DESCRIPTION

1683779 Ref JIB CYLINDER ASSEMBLY (AJ & AJP) 1 0100011 AR Loctite #242 (Not Shown) 2 0100035 AR Loctite #222 (Not Shown) 3 0100038 AR Primer #7471 (Not Shown) 4 0100063 AR Loctite RC 609 (Not Shown) 5 3931016 3 Bolt #10-24NC x 1in 6 0961893 1 Bushing, Tapered 7 0961947 2 Bearing, Garmax 8 0961951 2 Bushing, Garmax 9 1683051 1 Head, Cylinder 10 1683780 1 Barrel 11 1683783 1 Rod 12 3760367 1 Ring, Washer 13 2220885 3 O-Ring Plug 14 3480249 1 Piston, Head 16 Kit 2 Back-Up 17 Kit 1 Back-Up 18 Kit 2 Ring, Seal 19 Kit 2 Ring, Wear 20 Kit 1 Ring, Wear 21 Kit 1 O-Ring 22 Kit 1 O-Ring 23 Kit 1 Seal 24 Kit 1 Wiper 25 Kit 1 Seal 26 3931516 8 Bolt 5/16in-18NC x 1in 27 4640509 2 Cartridge, Valve 27 2900792 2 Seal Kit- 4640509 Valve (1 Per Cartridge) 2901810 1 Seal Kit (Includes Items 16-25)

REV

B
