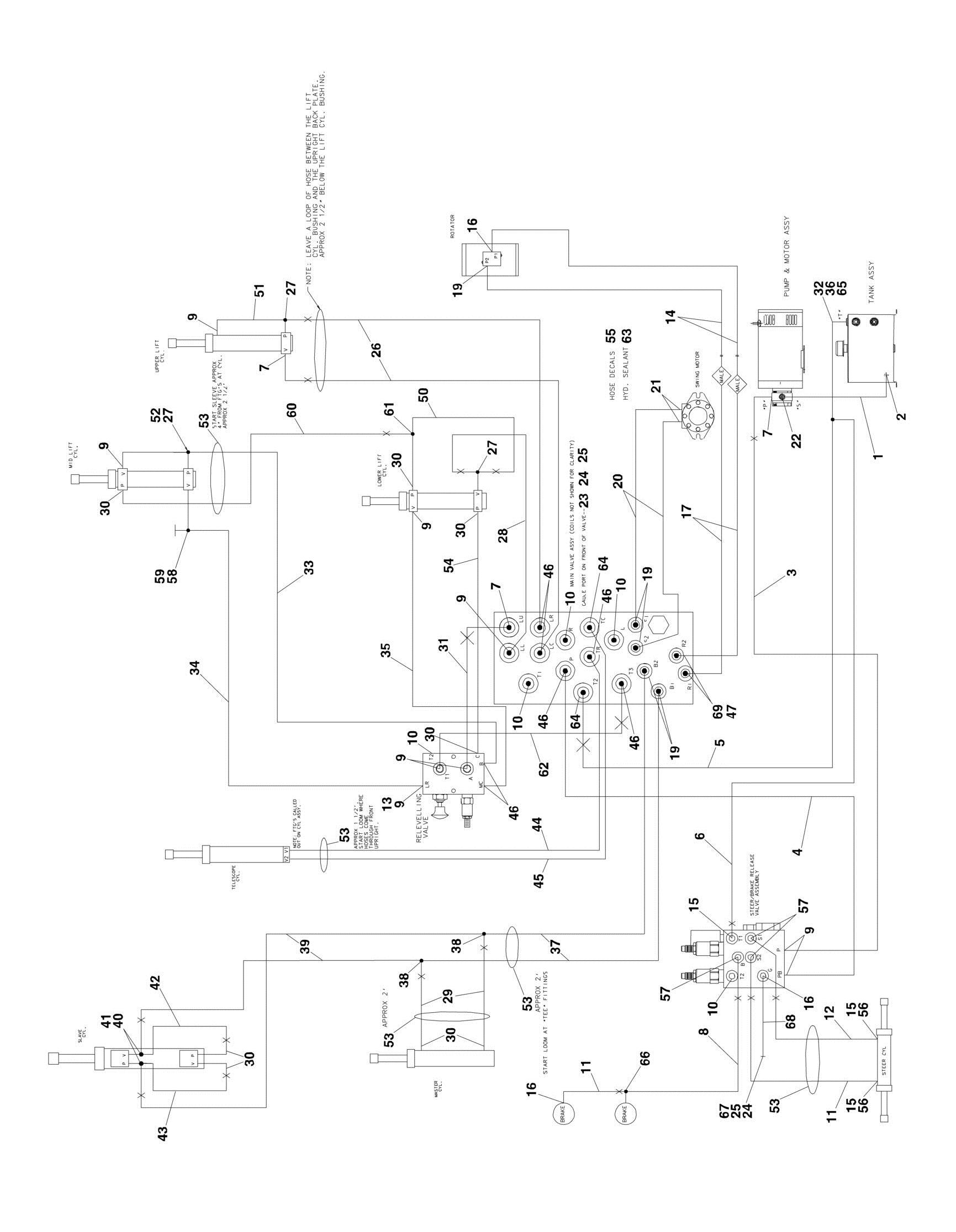

FIGURE 6 1. STANDARD HYDRAULIC DIAGRAM (E45A & M45A
ITEM PART NUMBER QTY
DESCRIPTION
2792334 Ref STANDARD HYDRAULIC DIAGRAM (E45A & M45A) 1 2752675 1 Hose 2 1320033 1 Clamp 3 2752487 1 Hose 4 2752488 1 Hose 5 2751498 1 Hose 6 2752476 1 Hose 7 2220371 3 Fitting, Straight 8 2752600 1 Hose 9 2220473 9 Fitting, 90 10 2220885 5 Plug 11 2752595 2 Hose 12 2752446 1 Hose 13 2220507 1 Fitting, 90 14 2753326 2 Hose 15 2220998 2 Fitting, Straight 16 2220466 2 Fitting, 90 17 2752795 2 Hose 19 2220502 4 Fitting, 45 20 2752459 2 Hose 21 2221033 2 Fitting, Straight 22 2220593 1 Fitting, Straight 23 2220873 1 Fitting, Straight 24 2220428 2 Fitting, Quick Coupling 25 2220429 2 Dust Cap 26 2753050 2 Hose 27 2220899 3 Fitting, Tee 28 2752620 1 Hose 29 2752580 2 Hose 30 2220472 8 Fitting, 90 31 2752910 1 Hose 32 2220999 1 Fitting, Tee 33 2751127 1 Hose 34 2751126 1 Hose 35 2752475 1 Hose 36 2220386 1 Fitting, 90 37 2752585 2 Hose 38 2220504 2 Fitting, Tee 39 2752572 2 Hose 40 2220727 2 Fitting, Straight 41 2220684 2 Fitting, Tee 42 2752435 1 Hose 43 2752573 1 Hose 44 2750996 1 Hose 45 2751508 1 Hose 46 2220501 7 Fitting, 45 47 2220502 2 Fitting, 45 50 2752581 1 Hose 51 4566188 1 Tube 52 4566623 1 Tube
REV
6-F
ITEM PART NUMBER QTY
53 4100026 5 Nylon, Sleeve 54 2752983 1 Hose 55 1702124 1 Hose, Tags 56 2220609 1 Fitting, Reducer 57 2220923 3 Fitting, Adapter 58 2220934 1 Fitting, Tee 59 4640861 1 Bleeder, Kit 60 2752440 1 Hose 61 2220605 1 Fitting, Tee 62 2752463 1 Hose 63 0100020 AR Sealant 64 2220600 2 Fitting, Straight 65 2220619 1 Fitting, Reducer 66 2220711 1 Fitting, Tee 67 2220414 1 Fitting, Straight 68 2790900 1 Hose 69 2220909 2 Fitting, Restrictor
