FIGURE 2 8. HOODS AND BEACON LIGHT INSTALLATIONS

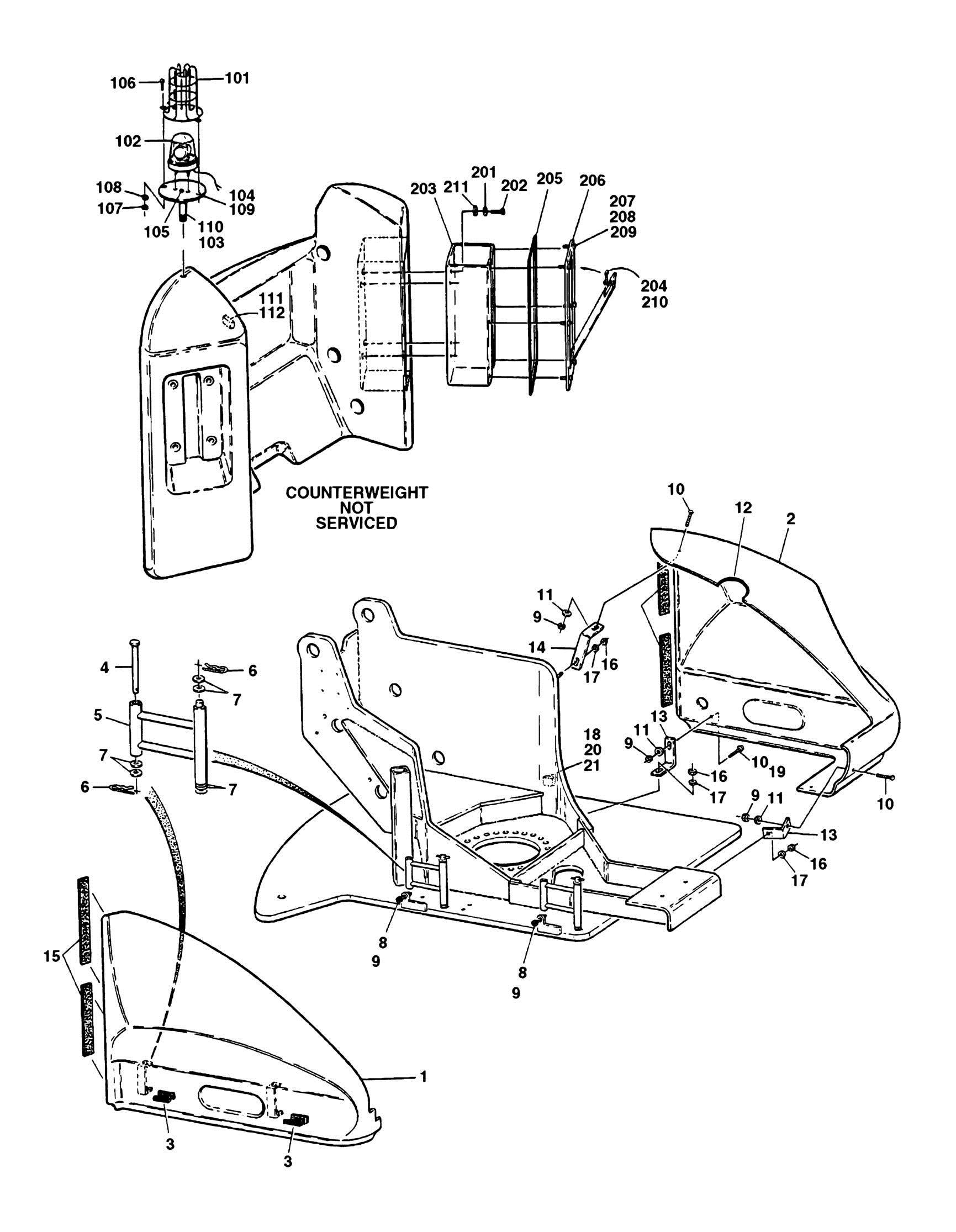

FIGURE 2-8. HOODS AND BEACON LIGHT INSTALLATIONS

FIGURE 2-8. HOODS AND BEACON LIGHT INSTALLATIONS

ITEM PART NUMBER QTY DESCRIPTION

Ref HOODS INSTALLATION 0258953 Ref Hoods Installation M45A & M40AJP Models 0253709 Ref Hoods Installation E45A & E40AJP Models Ref NOTE: REPLACEMENT DECALS MUST BE ORDERED

SEPARATELY - (See DECALS SECTION for Breakdown)

1 Ref Hood, LH Options: 1 2680473 1 Hood, LH (Was p/n 2680410) (Prior to SN 48133) 1 2680473 1 Hood, LH (SN 48133 to Present) 2 Ref Hood Options: 2 2680474 1 Hood M45A & M40AJP Models (Was p/n 2680453) (Prior to

SN 48133)

2 2680474 1 Hood M45A & M40AJP Models (SN 48133 to Present) 2 2680475 1 Hood E45A & E40AJP Models (Was p/n 2680411) (Prior to SN

48133)

2 2680475 1 Hood E45A & E40AJP Models (SN 48133 to Present) 3 2940071 2 Latch 4 3430840 2 Pin, Clevis 5 0253687 2 Hinge, Swing 6 3420156 4 Pin, Hair Cotter 7 4751800 AR Flatwasher 1/2in 8 0940049 2 Bumper Only (Prior to SN 48133) 9 3311501 AR Nut 5/16in-18NC 10 0630468 3 Bolt 5/16in-18NC x 1in 11 4751500 5 Flatwasher 5/16in 12 4060803 AR Shield, Flex Trim 13 0901923 2 Bracket, Hood Mounting 14 0901921 1 Bracket, Hood Mounting 15 3960453 5 ft/1.5m Seal, Door 16 3311601 AR Nut 3/8in-16NC 17 4751600 AR Flatwasher 3/8in 18 1320043 1 Clamp, Insulated Cable 3/8in 19 0641510 AR Bolt 5/16in-18NC x 1 1/4in 20 4751400 1 Flatwasher 1/4in 21 3311401 1 Nut 1/4in-20NC 22 0100011 AR Loctite #242 (Not Shown) 0259305 Ref STROBE LIGHT INSTALLATION (OPTIONAL) 101 4060865 1 Guard, Light 102 2920146 1 Light, Strobe (Amber) 102 7016319 1 Bulb, Light 102 7016372 1 Amber Lens 103 0630491 1 Bolt, Special 104 3537903 1 Plate, Mounting 105 0741606 1 Screw, Flathead 3/8in-16NC x 3/4in 106 0721008 2 Bolt #10-24NC x 1in 107 3311005 2 Locknut #10-24NC 108 4751000 4 Flatwasher #10 109 4220162 1 Spacer 110 0100011 AR LOCTITE #242 111 4240032 1 Tie-Strap 112 4460234 1 Clamp

REV

2-B 7-G

1

ITEM PART NUMBER QTY DESCRIPTION

113 2820036 16 in/41cm Loom (Not Shown)

0253984 Ref STORAGE COMPARTMENT INSTALLATION ONLY (Prior to SN

48133)

201 4761600 4 Lockwasher 3/8in 202 0641605 4 Bolt 3/8in-16NC x 5/8in 203 3536691 1 Box, Storage 204 2940042 1 Latch 205 3960438 50 in/1.3m Seal 206 4844404 1 Door Front Weldment 207 4740120 6 Washer, Nylon 208 0630464 6 Screw, Button Head #10-24NC x 1/2in 209 3300365 6 Retainer, Nut #10-24NC 210 0100011 AR LOCTITE #242 211 4751600 4 Flatwasher 3/8in

REV

B
