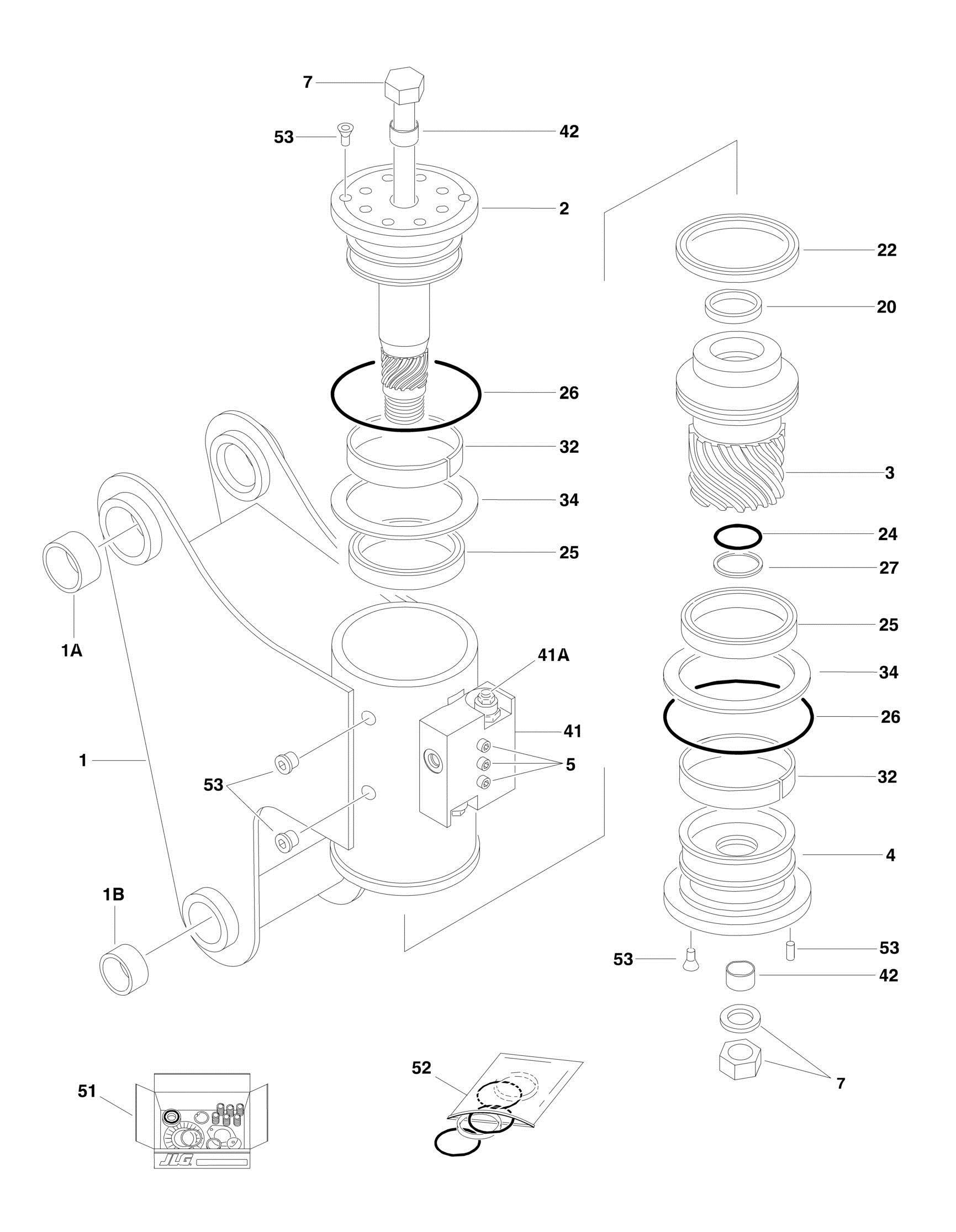

FIGURE 3 8. ROTATOR ASSEMBLY

FIGURE 3-8. ROTATOR ASSEMBLY

FIGURE 3-8. ROTATOR ASSEMBLY

ITEM PART NUMBER QTY DESCRIPTION REV

Ref ROTATOR ASSEMBLIES 0060044 Ref Rotator Assemblies E45AJ & M45AJ D 0060052 Ref Rotator Assemblies E45A & M45A Only (SN 49945 to Present) F 0060046 Ref Rotator Assemblies E40AJP & M40AJP (Note: There are 2 C

different versions each of Rotators p/n 0060044 & 0060052. No s/n break exists. Order parts by the Helac Control #.)

1 Not Serviced 1 Case/Bracket Weldment (Purchase Complete Assembly) 1A 0962257 2 Bushing, Garmax (0060044 Rotator Only) 1B 0961947 2 Bushing, Garmax (0060044 Rotator Only) 2 Ref Shaft Options: 2 7017120 1 0060052 Rotators with Helac Control #26409 2 7017196 1 0060052 Rotators with Helac Control #26966 2 7017120 1 0060044 Rotators with Helac Control #25928 2 7017196 1 0060044 Rotators with Helac Control #26962 2 7017130 1 0060046 Rotator 3 Ref Piston Sleeve Options: 3 7017121 1 0060052 Rotators with Helac Control #26409 3 7027900 1 0060052 Rotators with Helac Control #26966 3 7017121 1 0060044 Rotators with Helac Control #25928 3 7027900 1 0060044 Rotators with Helac Control #26962 3 7017131 1 0060046 Rotator 4 Ref Cap, End Options: 4 7017153 1 0060052 Rotators with Helac Control #26409 4 7027901 1 0060052 Rotators with Helac Control #26966 4 Not Available 0060044 Rotators with Helac Control #25928 4 7027901 1 0060044 Rotators with Helac Control #26962 4 Not Available 0060046 Rotator 5 Not Available 3 Capscrew 1/4in-20NC (Grade 8) 7 Ref Bolt and Nut Assembly Options: 7 7017126 1 0060044 & 0060052 Rotators 7 7017135 1 0060046 Rotator 20 See Note 1 Seal, Rod (Note: Use Items 100A-102B) 22 See Note 1 Seal, Piston (Note: Use Items 100A-102B) 24 See Note 1 Seal, Cap (Note: Use Items 100A-102B) 25 See Note 2 Packing, Bearing (Note: Use Items 100A-102B) 26 See Note 2 Seal (Note: Use Items 100A-102B) 27 See Note 1 Ring, Back-Up Cap (Note: Use Items 100A-102B) 32 Item 51 2 Bearing, Shaft 34 Item 51 2 Washer, Thrust 41 Ref Counterbalance Valve Assembly Options: 41 7017172 1 Helac p/n 24327 Stamped beside Mounting Screws (Was p/n 7017125) 41 7017172 1 Helac p/n 26553 or 26554 Stamped beside Mounting Screws 41A Ref Valve, Cartridge Options: 41A 7011323 2 Valve, Cartridge for Helac p/n 24327 Valve 41A 2900770 2 Seal Kit - 7011323 Cartridge (1 Per Assembly) 41A 7017192 2 Valve, Cartridge Helac p/n 26553 or 26554 (No Seal Kit Available) 42 Not Available 2 Bushing, Shaft 51 Ref Bearing Kit Options (Includes Items 32 - 34):

ITEM PART NUMBER QTY

DESCRIPTION

51 7017122 1 0060044 & 0060052 Rotators 51 7017134 1 0060046 Rotator 52 Ref Seal Kit Options (Includes Items 20, 22, 24, 25, 26 & 27): 52 Ref 0060044 & 0060052 Rotators Options: 52 7017127 1 Standard 52 70000341 1 Low Temperature 52 Ref 0060046 Rotator Options: 52 7017165 1 Standard (was p/n 7017133) 52 Not Available Low Temperature 53 Ref Hardware Kit Options: 53 7017123 1 0060044 & 0060052 Rotators 53 7017132 1 0060046 Rotator

REV
