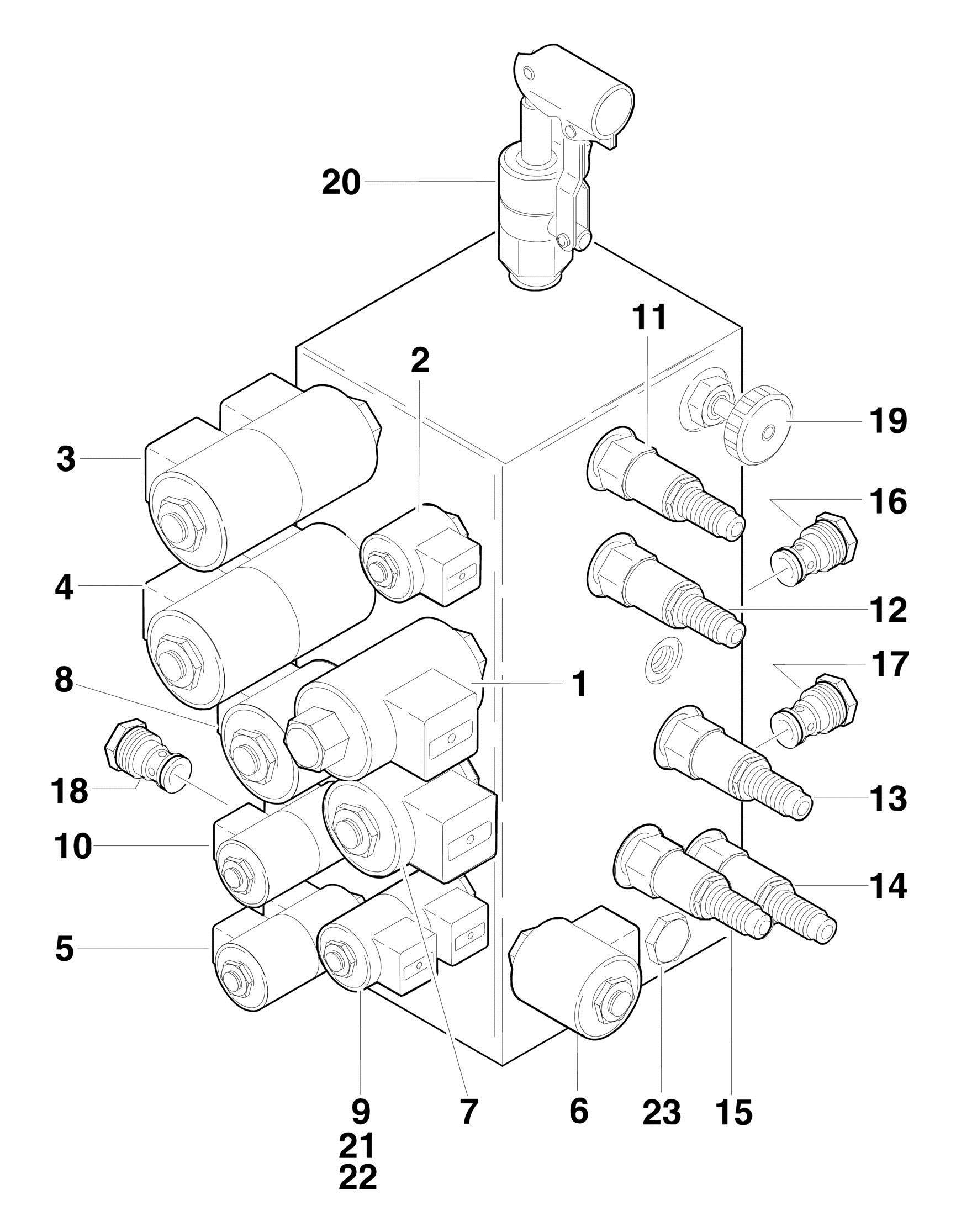

FIGURE 2 2. MAIN CONTROL VALVE ASSEMBLY
FIGURE 2-2. MAIN CONTROL VALVE ASSEMBLY
FIGURE 2-2. MAIN CONTROL VALVE ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
4641070 Ref MAIN CONTROL VALVE ASSEMBLY 1 7021611 1 Cartridge without Coil (Flow Regulator) 1 7012518 1 Seal Kit - 7021611 Cartridge 1 7021618 1 Coil 2 7017410 1 Cartridge without Coil (Bypass Unloading) 2 7012967 1 Seal Kit - 7017410 Cartridge 2 7021609 2 Coil 3 7021603 1 Cartridge without Coil (Lower Lift) 3 7012903 1 Seal Kit - 7021603 Cartridge 3 7021610 2 Coil 4 7021603 1 Cartridge without Coil (Upper Lift) 4 7012903 1 Seal Kit - 7021603 Cartridge 4 7021610 2 Coil 5 7017433 1 Cartridge without Coil (Swing) 5 7017402 1 Seal Kit - 7017433 Cartridge 5 7021609 1 Coil 6 7021604 1 Cartridge without Coil (Swing Restrictor) 6 7012953 1 Seal Kit - 7021604 Cartridge 6 7021609 1 Coil 7 7017479 1 Cartridge without Coil (Telescope Out) 7 7012518 1 Seal Kit - 7017479 Cartridge 7 7021610 1 Coil 8 7017479 1 Cartridge without Coil (Telescope In) 8 7012518 1 Seal Kit - 7017479 Cartridge 8 7021610 1 Coil 9 7017452 1 Cartridge without Coil (Platform Level) 9 7017402 1 Seal Kit - 7017452 Cartridge 9 7021609 2 Coil 10 7017452 1 Cartridge without Coil (Rotator) 10 7017402 1 Seal Kit - 7017452 Cartridge 10 7021609 2 Coil 11 7017423 1 Cartridge, (Lower Lift Down) 11 7012998 1 Seal Kit - 7017423 Cartridge 12 7021606 1 Cartridge, (Upper Lift Down) 12 7012998 1 Seal Kit - 7021606 Cartridge 13 7021607 1 Cartridge (Telescope) 13 7012998 1 Seal Kit - 7021607 Cartridge 14 7017421 1 Cartridge (Platform Level Backward Piston End) 14 7012998 1 Seal Kit - 7017421 Cartridge 15 7017422 1 Cartridge (Platform Level Forward Rod End) 15 7012998 1 Seal Kit - 7017422 Cartridge 16 10837580 1 Cartridge (Telescope) 16 7010543 1 Seal Kit - 10837580 Cartridge 17 7012914 1 Cartridge (Platform Level Piston Side) 17 7012918 1 Seal Kit - 7012914 Cartridge 18 7012914 1 Cartridge (Platform Level Rod Side) 18 7012918 1 Seal Kit - 7012914 Cartridge 19 7012947 1 Cartridge, (Emergency Descent) 19 7012518 1 Seal Kit - 7012947 Cartridge 19 7012949 1 Knob
REV
G
ITEM PART NUMBER QTY
DESCRIPTION
20 7012694 NLA Pump, Manual (Note: Use p/n 70004019) 20 7017496 1 Seal Kit - 7012694 Cartridge (was p/n 2900708) 21 Not Available 1 Plug, Orifice (.031in) 22 Not Available 1 Disc, Orifice (.028in) 23 70000381 1 Cartridge, Plug
