FIGURE 4 4. CONTROLLER ASSEMBLY (SWING AND LIFT

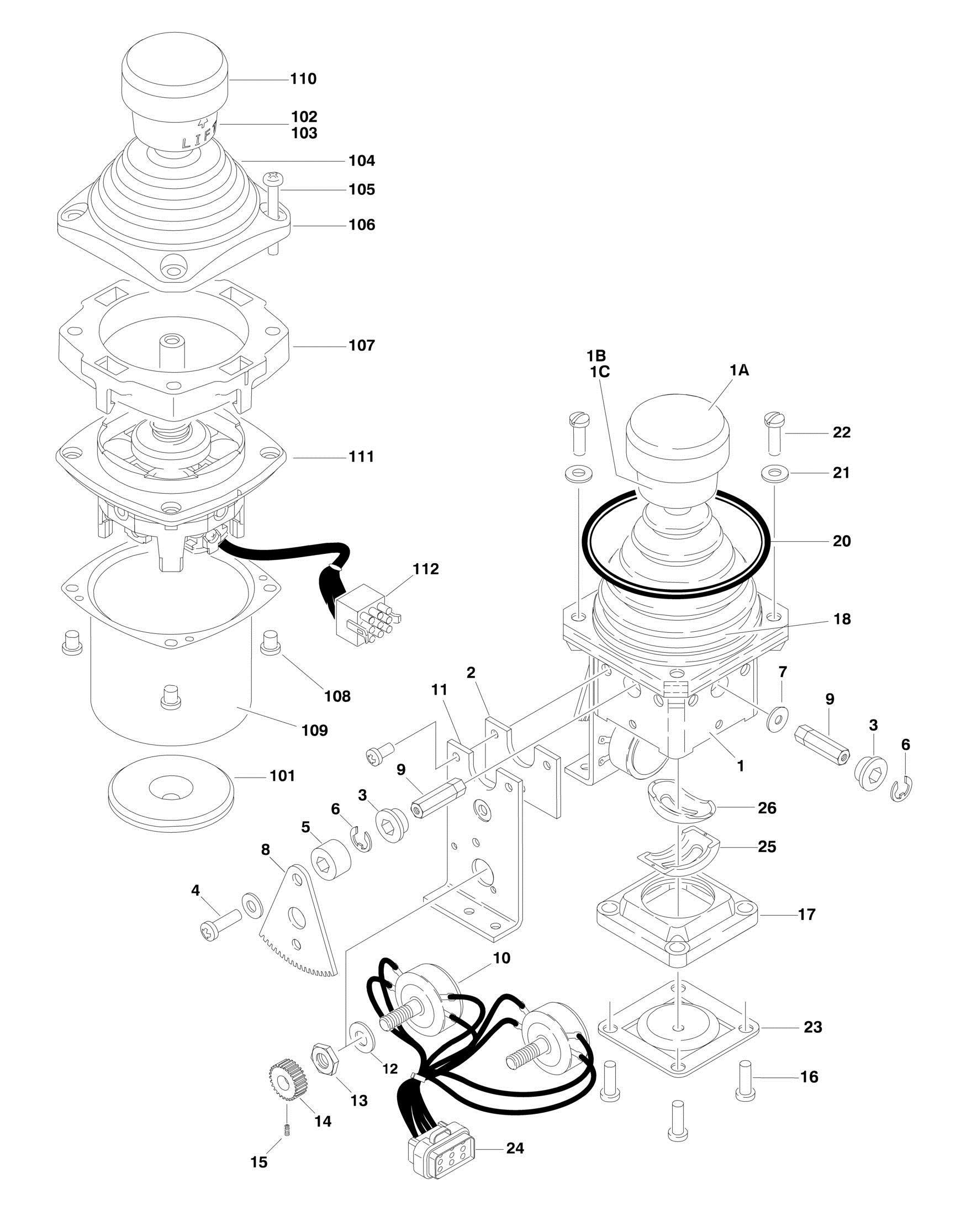

FIGURE 4-4. CONTROLLER ASSEMBLY (SWING AND LIFT)

FIGURE 4-4. CONTROLLER ASSEMBLY (SWING AND LIFT)

ITEM PART NUMBER QTY

DESCRIPTION

Ref CONTROLLER ASSEMBLY 1600274 Ref Controller Assembly (Original Equipment) 1 7019141 1 Mechanical Assembly (Includes Base, Handle Stem and Items 18, 1A, 1B & 1C) 1A 7019197 1 Handle Cap and Rod 1B 7003928 1 Spring 1C 7022808 1 Cap, Lift 2 7019142 2 Plate 3 7019111 4 Bearing, Gear 4 7019143 2 Screw 5 7019144 2 Spacer 6 7019145 4 E-Clip 7 7019174 2 Spacer, Cam 8 7003977 2 Gear, Drive 9 7019147 4 Shaft 10 7019195 2 Potentiometer Assembly 10 7003974 1 Potentiometer 11 7019142 2 Plate 12 7003992 2 Washer 13 7003993 2 Nut 14 7003976 2 Gear, Slave 15 7019149 2 Setscrew 16 7003952 4 Screw 17 7019150 1 Gate 18 7022813 1 Boot (was p/n 7003955) 19 7022813 1 Plate, Plastic (was p/n 7003954) 20 7003956 1 O-Ring 21 7003953 4 Washer 22 7019137 4 Screw 23 7019170 1 Center, Detent 24 4460265 1 Connector - 9 Position 24 4460226 8 Socket, Female 25 7019122 1 Gimble, Outer 26 7019123 1 Gimble, Inner 1001118419 Ref Controller Assembly (Service Replacement) 101 70002730 1 Gasket 102 7003928 1 Spring 103 7022808 1 Cap, Lift 104 70002731 1 Boot 105 70002732 4 Screw 106 7022815 1 Bezel 107 70002733 1 Adapter 108 70002734 4 Screw 109 70002735 1 Can, Enclosure 110 70002906 1 Cap 111 Not Available 1 Mechanical Assembly 112 4460265 1 Connector - 9 Position 112 4460226 8 Socket, Female
