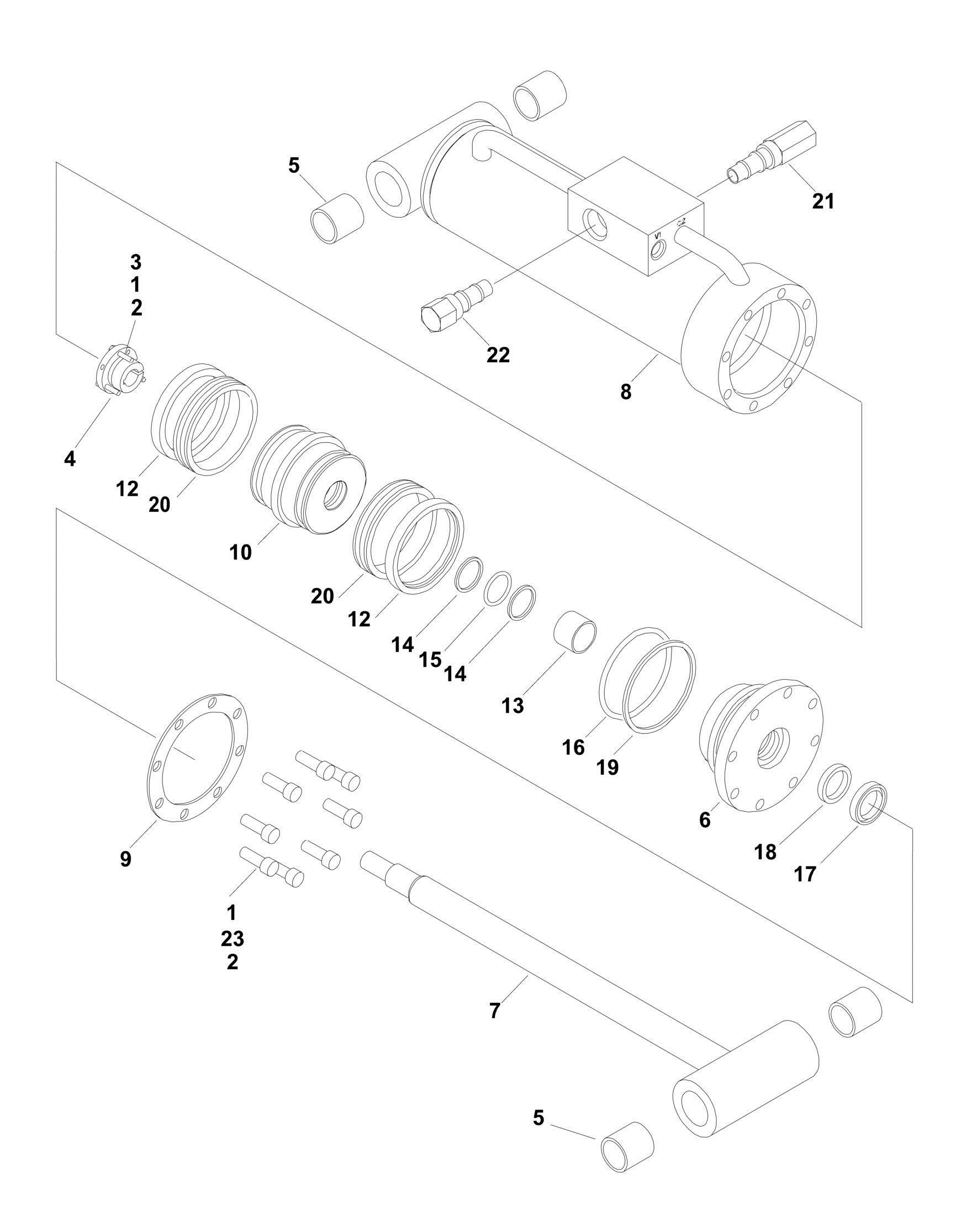

FIGURE 5 3. PLATFORM LEVEL CYLINDER ASSEMBLY (AJ & AJP
ITEM PART NUMBER QTY DESCRIPTION REV
Ref PLATFORM LEVEL CYLINDER ASSEMBLY (AJ & AJP) 1683760 Ref Platform Level Cylinder Assembly E45AJ & M45AJ B 1683924 Ref Platform Level Cylinder Assembly E40AJP & M40AJP B 1 0100011 AR LOCTITE #242 2 0100038 AR Primer, Locking #7471 3 3931016 3 Bolt, Socket Head #10-24NC x 1in 4 Ref Tapered Bushing Options: 4 0961900 1 Tapered Bushing E45AJ & M45AJ 4 0962185 1 Tapered Bushing E40AJP & M40AJP 5 0961951 4 Bushing, Garmax 6 Ref Head Options: 6 1683052 1 Head E45AJ & M45AJ 6 1683925 1 Head E40AJP & M40AJP 7 1683759 1 Rod 8 1683761 1 Barrel 9 3760368 1 Washer, Ring 10 Ref Piston Options: 10 3480247 1 Piston E45AJ & M45AJ 10 3480259 1 Piston E40AJP & M40AJP 12 Kit 2 Ring, Lock 13 Kit 1 Ring, Wear 14 Kit 2 Ring, Back-up 15 Kit 1 O-Ring 16 Kit 1 O-Ring 17 Kit 1 Wiper 18 Kit 1 Seal 19 Kit 1 Ring, Back-up 20 Kit 2 Seal 21 4640932 1 Cartridge, Valve (Counterbalance Vented) 21 7011112 1 Seal Kit-4640932 Valve 22 4641086 1 Cartridge, Valve (Counterbalance Non vented) 22 2900792 1 Seal Kit-4641086 Valve 23 3931516 8 Bolt, Socket Head 5/16in-18NC x 1in Ref Seal Kit Options: (Includes Items 12-20) 2901776 1 Seal Kit E45AJ & M45AJ 2901898 1 Seal Kit E40AJP & M40AJP
