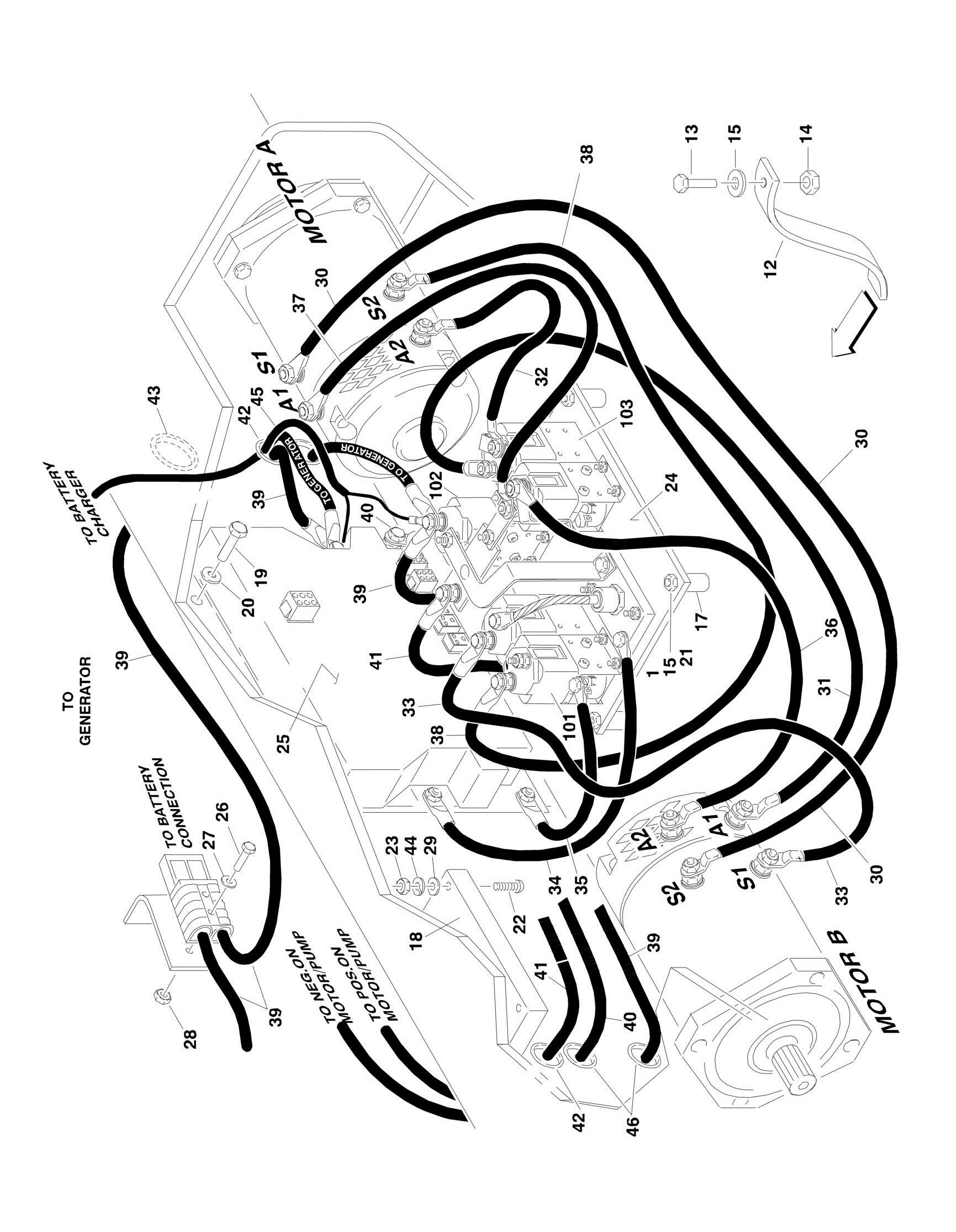

FIGURE 1 9. ELECTRICAL COMPONENTS INSTALLATION (FRAME MOUNTED
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONTACTOR INSTALLATION OPTIONS: 0259069 Ref Contactor Installation E45A, M45A, E45AJ, M45AJ, E40AJP &
M40AJP REV
6-G
0270103 Ref Contactor Installation E40AJPnarrow & M40AJPnarrow 4-B 1 0100019 AR Loctite #242 (Not Shown) 12 4240084 1 Strap, Static 13 0641508 1 Bolt 5/16in-18NC x 1in 14 3311505 1 Locknut 5/16in-15NC 15 4751500 10 Flatwasher 5/16in 17 4300135 4 Stud, Stand-Off 18 1600293 1 Module (Positrac/Tilt) (Note: Calibration required when replaced) 19 0641406 6 Bolt 1/4in-20NC x 3/4in 20 4761400 6 Lockwasher 1/4in 21 3311501 8 Locknut 5/16in-18NC 22 3910636 4 Screw #6-32NC x 2 1/4in 23 3310601 4 Nut #10-24NC 24 1600294 1 Contactor Plate Assembly (See Items 101-103 for Breakdown) 25 1600292 1 Module, Power 26 3931430 AR Capscrew, Socket Head 1/4in-20NC x 2in 27 4711400 AR Flatwasher 1/4in 28 3311405 AR Locknut 1/4in-20NC 29 4750600 4 Flatwasher #6 30 1060717 1 Cable, Electrical (Motor B S1 to Motor A S2) 31 1060718 1 Cable, Electrical (Motor B A1 to Contactor Plate MB1) 32 1060719 1 Cable, Electrical (Motor A A2 to Contactor Plate MA2) 33 1060720 1 Cable, Electrical (Motor B A2 to Contactor Plate SB1) 34 1060721 1 Cable, Electrical (Power Module A to Contactor Plate) 35 1060722 1 Cable, Electrical (Power Module B+ to Contactor Plate) 36 1060723 1 Cable, Electrical (Motor B S2 to Contactor Plate MB2) 37 1060724 1 Cable, Electrical (Motor A A1 to Contactor Plate MA1) 38 1060725 1 Cable, Electrical (Motor A S1 to Contactor Plate SA1) 39 Ref Cable, Electrical Options: (Contactor Plate to Batteries) 39 1060726 1 Cable, Electrical E45A, M45A, E45AJ, M45AJ, E40AJP & M40AJP 39 1060810 1 Cable, Electrical E40AJPnarrow & M40AJPnarrow 40 1060727 1 Cable, Electrical (Module to Hydraulic Pump Motor -) 41 1060728 1 Cable, Electrical (Contactor Plate to Hydraulic Pump Motor +) 42 2540019 4 Grommet 43 2540021 1 Grommet 44 4760600 4 Lockwasher #6 45 4922103 1 Cable, Electrical (Contactor/Module to Charger) 45 4460444 1 Connector, DC 46 2540020 3 Grommet 47 Ref Clamp, Cable Options (Not Shown - Located on Item 39): 47 Not Required 0 Clamp, Cable E45A, M45A, E45AJ, M45AJ, E40AJP & M40AJP 47 1320172 1 Clamp, Cable E40AJPnarrow & M40AJPnarrow 1600294 Ref CONTACTOR PLATE ASSEMBLY B 7022003 1 Harness, Contactor (See ELECTRICAL SECTION for Breakdown) 7022004 1 Harness, Posi-Track Contactor (See ELECTRICAL SECTION for Breakdown)
ITEM PART NUMBER QTY
DESCRIPTION
7022005 1 Harness, Shunt (See ELECTRICAL SECTION for Breakdown) 101 7022002 1 Contactor 102 7022001 1 Contactor 103 7022000 1 Contactor
