Cha pte r A
Components of AML System
Cha pte r A

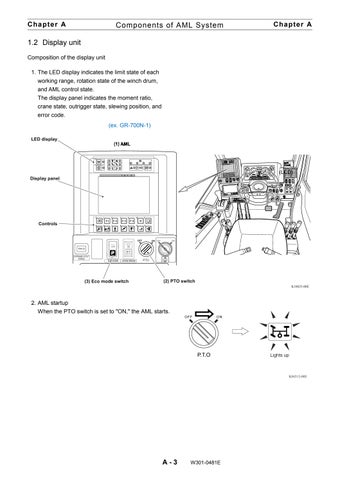

1.2 Display unit Composition of the display unit 1. The LED display indicates the limit state of each working range, rotation state of the winch drum, and AML control state. The display panel indicates the moment ratio, crane state, outrigger state, slewing position, and error code. (ex. GR-700N-1)
(LCD)
2. AML startup When the PTO switch is set to "ON," the AML starts.
A-3
W301-0481E
