Maintenance Mode

2.18 Unit selection

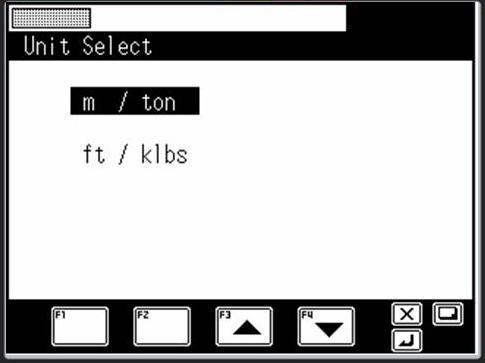

Sets the unit that is used commonly in all of the user mode, adjustment mode, and maintenance mode. In the maintenance main menu of Fig. 1.3.1, select "Unit Select," and press the < > key to display the displayed unit selection screen shown in Fig. 2.18.1.

The current setting is highlighted by a square frame.

Press the < > key (scroll up) or the < > key (scroll down) to move the highlight to the desired item, and press < > to register the setting.

To go back to the adjustment main menu, press the < > key.

2.19 Language selection

This is a function to change the displayed language.

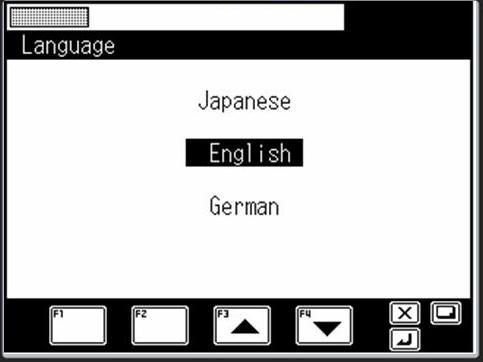

In the maintenance main menu of Fig. 1.3.1, select "Language," and press the < > key to display the language selection screen shown in Fig. 2.19.1. To go back to the maintenance main menu, press the < > key.

The currently selected language is highlighted enclosed by a square frame. Press the < > key (scroll up) or the < > key (scroll down) to move the highlight to the desired language, and press < > to register the setting.

To go back to the maintenance main menu, press the < > key.

C - 3 Integrated Information Display Screen

This is a screen for checking the current operation status in the maintenance screen or in the adjustment screen.

3.1 Crane Information display screen

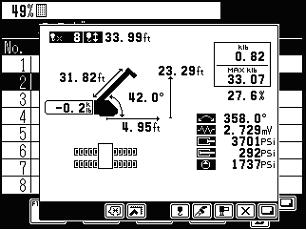

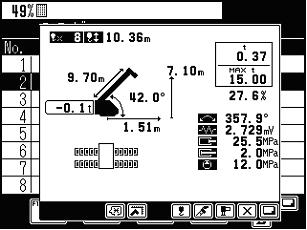

In the maintenance screen and adjustment screen, pressing the < > key displays the integrated information display screen (crane information). Depending on the unit system that is selected, the displayed numerical value changes as shown in Fig. 3.1.1 and Fig. 3.1.2.

3.2 Vehicle Information display screen

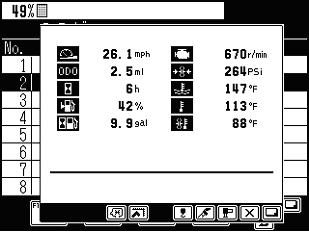

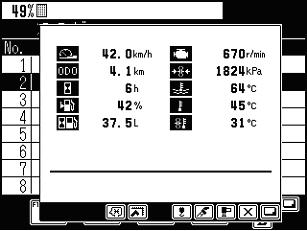

When the vehicle information is obtained from the CAN port, pressing the < > key again, while the integrated information screen is being displayed, displays the integrated information display screen (vehicle information). However, the vehicle information is displayed first when PTO is OFF, and pressing the < > key again changes the screen to the crane information. Also, as with the crane information display, the displayed numerical value changes as shown in Fig. 3.2.1 and Fig. 3.2.2 depending on the unit system that is selected.

3.3 Display contents

The crane information contents displayed in the integrated information screen are shown in Fig. 3.3.1, and the vehicle information contents are shown in Fig. 3.3.4. For the function specific display (slow stop adjustment, over-front special performance, etc.), refer to the corresponding function specification.

Display contents in this area vary depending on the conditions. Refer to Figs. 3.3.2 for the items which cannot be displayed in this screen.

[1]: Number of part lines

[2]: Hook movement
