Adjustment mode

1.3.3 Shift to Adjustment Mode

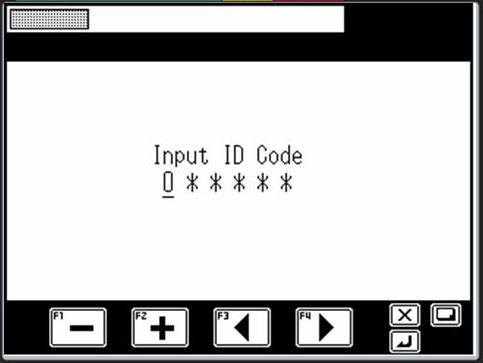

To shift to the adjustment mode, select “2. Adjust” in the maintenance main menu of Fig. 1.3.1. At this time, the LCD shows a screen as shown in Fig. 1.3.2, and the screen waits for the ID code input.

Once the ID code (Note 1) is input correctly, the shift is made to the adjustment mode, and the LCD shows the adjustment main menu shown in Fig. 1.3.3. If the ID code is incorrect, the pressing of < > is disabled.

Until the operation history is erased for three times, the ID code input screen is not displayed, shift to the adjustment main menu of Fig. 1.3.3 (Note 2).

Input the ID code (6 digits) according to the steps below.

A numerical value is displayed only for the digit that is being input. A character " " is shown in other digits.

Move the digit to input using the < > key (backward) and the < > key (forward).

In the digit that is being input, press the < > key (-) or the < > key (+) to decrease / increase the value. Press the < > key to confirm the input value.

Note 1: ID code is changed daily based on the date (If you need the ID code, contact to Tadano Overseas Div. in Tokyo)

Adjustments of calendar and clock must be done in advance before inputting the ID code.

Note 2: After a replacement of AML related part or CPU board, erase the operation history for three times so that the ID code input screen is displayed.

1.3.4 Adjustment Main Menu

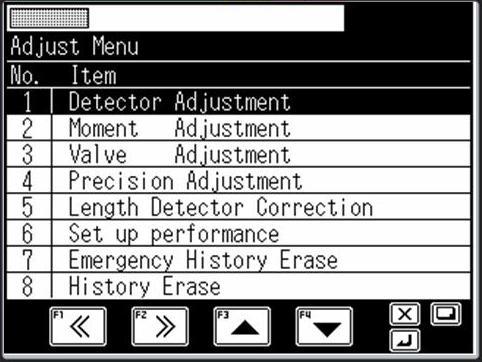

When the ID code is correctly input, the adjustment main menu is displayed as shown in Fig. 1.3.3.

Adjustment main menu display

Perform the selection of adjustment menu as described below.

- Pressing the < > key (scroll up) or the < > key (scroll down) moves the selected maintenance menu item (highlighted). After the desired menu is selected, pressing the < > key starts the selected menu.

- Be sure to perform the adjustment in sequence starting from the menu No.1.

- To terminate the adjustment mode, press the < > key while the adjustment main menu is being displayed.

[NOTICE]

When performing adjustments, always set up the crane on the firm level surface and fully extend outriggers (except for outrigger length adjustment).
