Adjustment mode

- Fully retract the jib tilt cylinder, then press the < > key to store the jib offset angle to machine A/D input value (Fig. 6.1.5).

When the jib tilt full retraction position is stored, " " is shown at the left of jib tilt full retraction memory A/D data.

When the < > key is pressed, the data will not be stored, and the screen returns to the adjustment main menu of Fig. 1.3.3.

Jib tilt full retraction position storing completion screen

Under the status shown in Fig. 6.1.5, pressing the < > key returns the screen to the adjustment main menu of Fig. 1.3.3.

D - 7 Emergency History Erase

7.1 Operation Procedure

This section describes the method to erase the registration contents of AML emergency / override switch history information (information on the date and time when the AML emergency / override switch is turned ON/OFF).

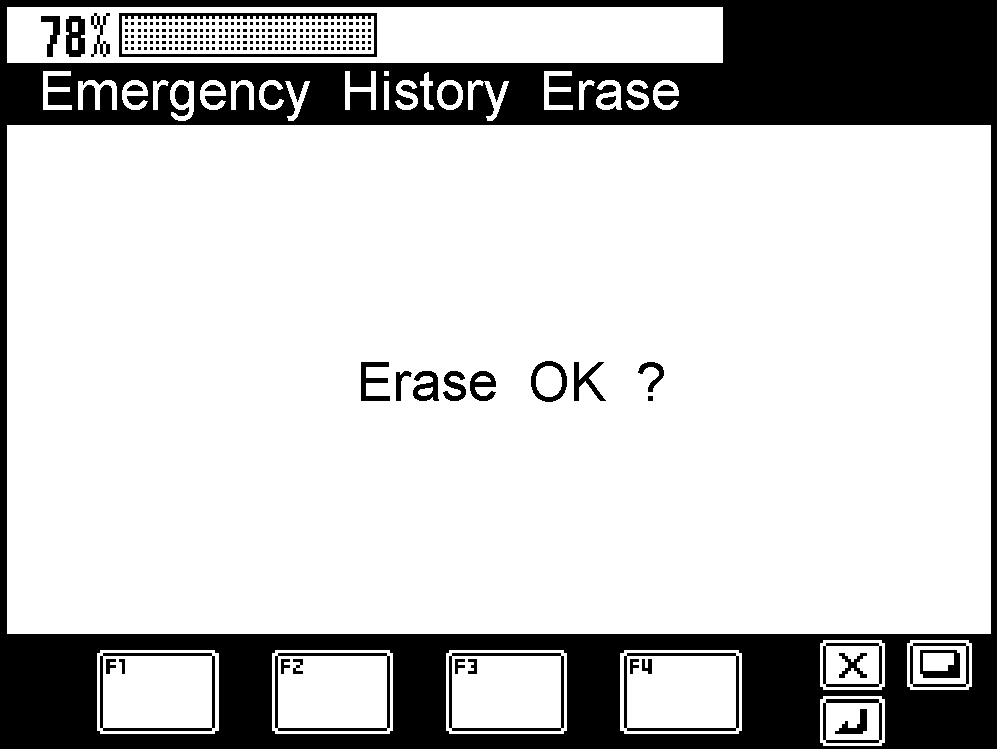

In the adjustment main menu of Fig. 1.3.3, select "Emergency History Erase" to display the AML emergency / override switch history erase screen as shown in Fig. 7.1.1.

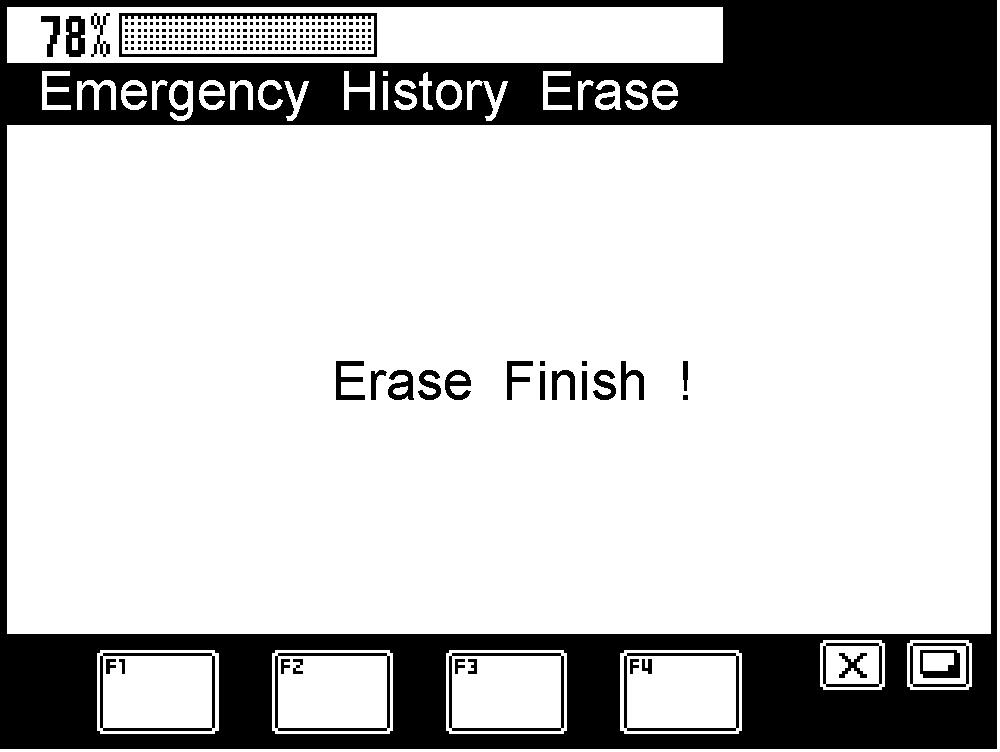

Pressing the < > key erases the AML emergency switch history. Then, the erase confirmation display appears as shown in Fig. 7.1.2.

To go back to the adjustment main menu of Fig. 1.3.3 without erasing the AML emergency / override switch history, press the < > key while the screen shown in Fig. 7.1.1 is being displayed.

7.2 Operating Conditions

This function will not be available after the operation history is erased for three times. Also, the corresponding item is not shown in the adjustment main menu of Fig. 1.3.3.
