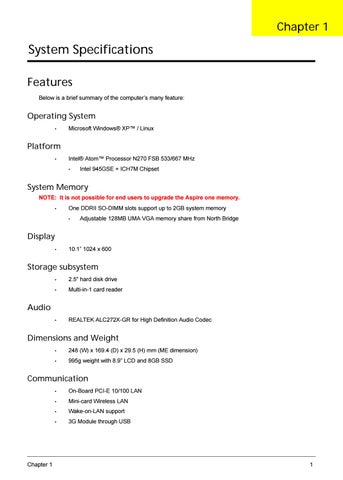

Chapter 1
System Specifications Features Below is a brief summary of the computer’s many feature:
Operating System •
Microsoft Windows® XP™ / Linux
Platform •
Intel® Atom™ Processor N270 FSB 533/667 MHz •
Intel 945GSE + ICH7M Chipset
System Memory NOTE: It is not possible for end users to upgrade the Aspire one memory. •
One DDRII SO-DIMM slots support up to 2GB system memory •
Adjustable 128MB UMA VGA memory share from North Bridge
Display •
10.1” 1024 x 600
Storage subsystem •
2.5" hard disk drive
•
Multi-in-1 card reader
•
REALTEK ALC272X-GR for High Definition Audio Codec
Audio
Dimensions and Weight •
248 (W) x 169.4 (D) x 29.5 (H) mm (ME dimension)
•
995g weight with 8.9” LCD and 8GB SSD
Communication
Chapter 1
•
On-Board PCI-E 10/100 LAN
•
Mini-card Wireless LAN
•
Wake-on-LAN support
•
3G Module through USB
1
