Removing the LCD Brackets and FPC Cable

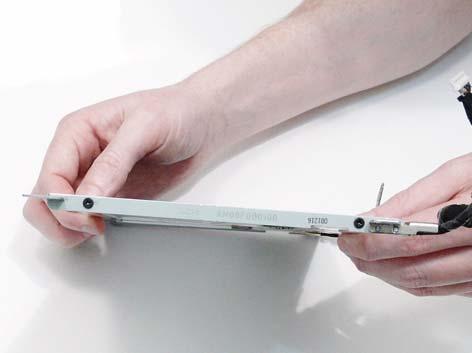

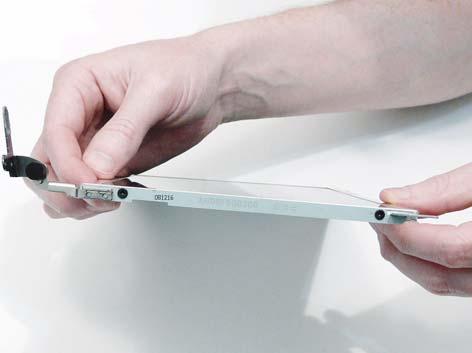

1. See “Removing the LCD Panel” on page 83. 2. Remove the four securing screws (two each side) from the LCD Panel brackets.

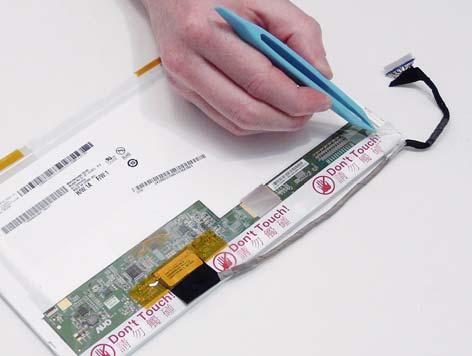

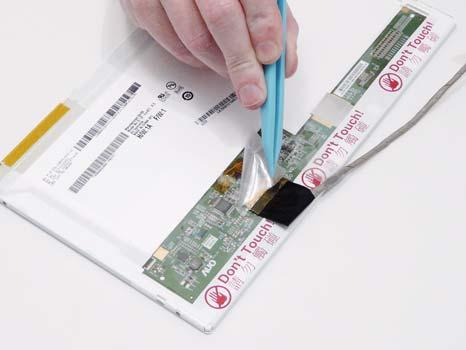

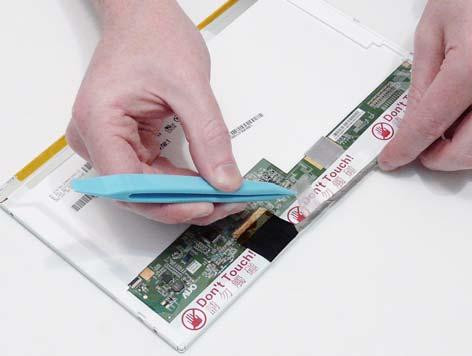

3. Turn the LCD panel over on a clean surface. Remove the adhesive strips securing the LCD cable.

Step

Size

LCD Brackets M2*3 4

Quantity Screw Type

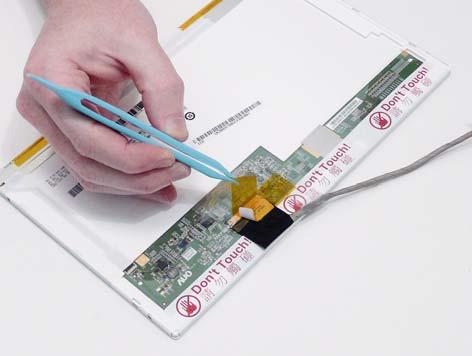

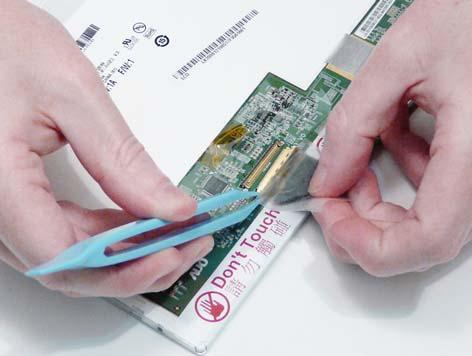

5. Hold the adhesive tape clear of the LCD Panel and disconnect the LCD cable as shown.
