Replacing the Mainboard

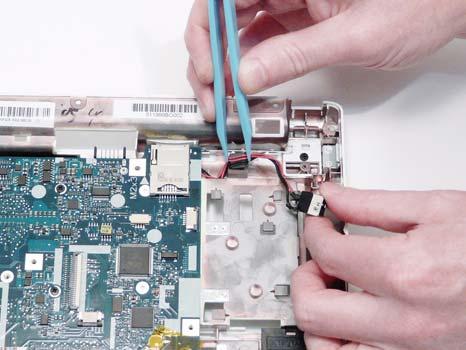

1. Connect the Power Cable to the Mainboard. 2. Insert the Mainboard left side first to ensure the I/O ports pass through the Lower Cover.

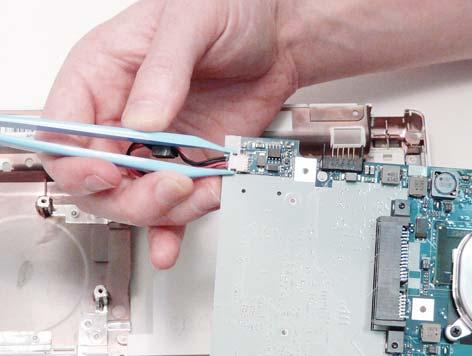

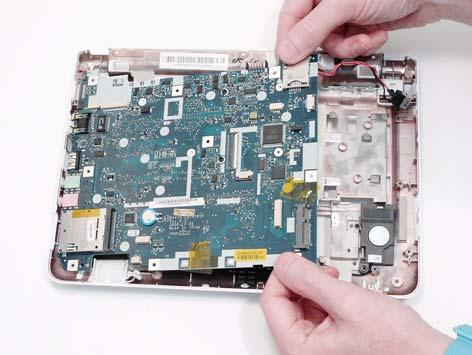

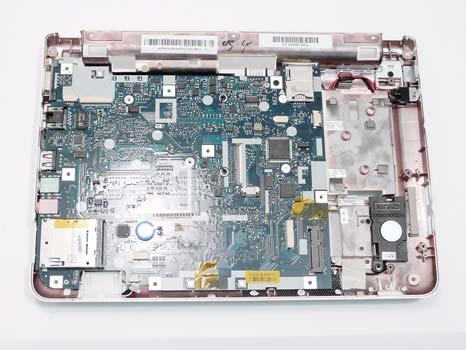

3. Lower the Mainboard into place as shown. NOTE: Ensure the Speaker cable (green callout) is accessible before placing the Mainboard. 4. Place the cable cluster in to the Mainboard and press down secure it in place.

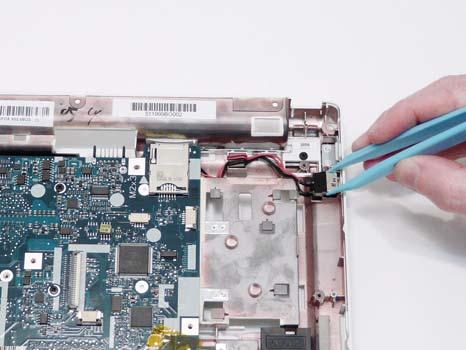

5. Place the power jack in to the Mainboard and press down secure it in place. 6. Replace the single securing screw.
