Replacing the LCD Module

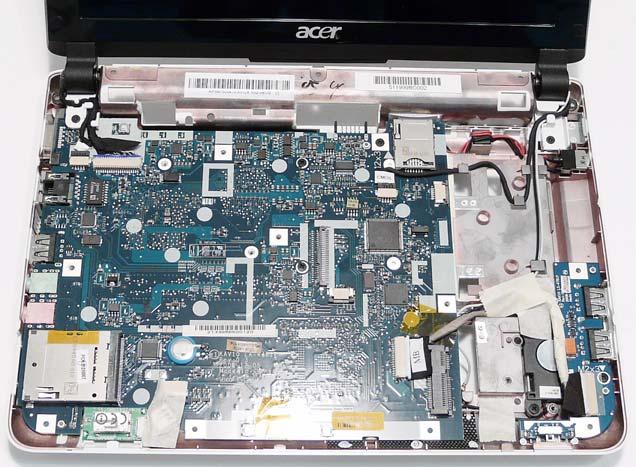

1. Place the LCD Module on the Lower Cover and secure it in place with the two screws.

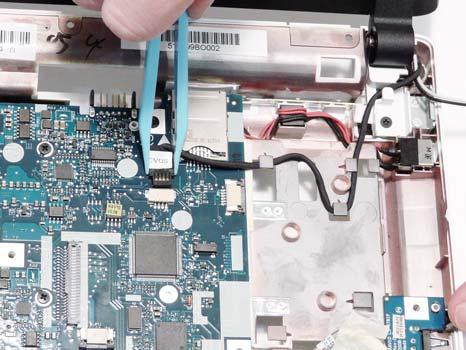

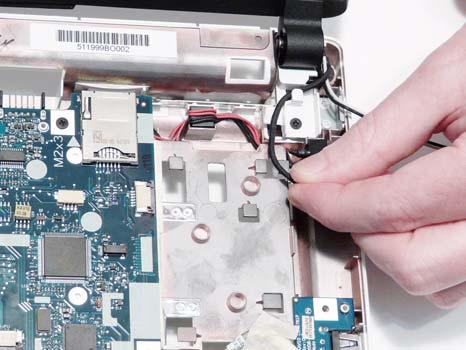

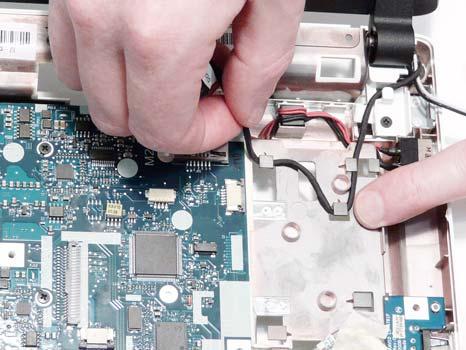

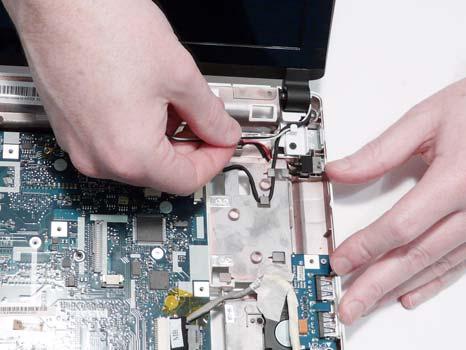

2. Run the MIC cable along the cable channel and reconnect it to the Mainboard. 3. Run the Power cable along the cable channel and reconnect it to the Mainboard.

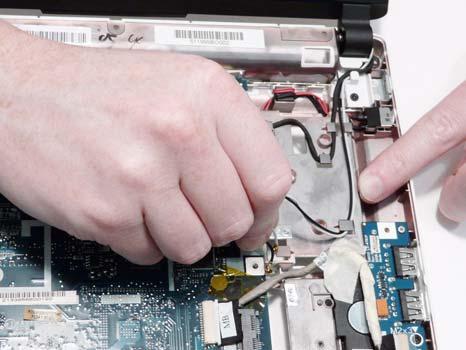

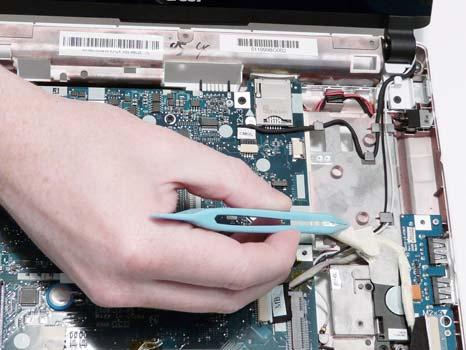

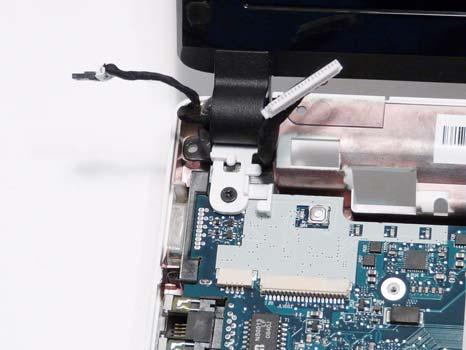

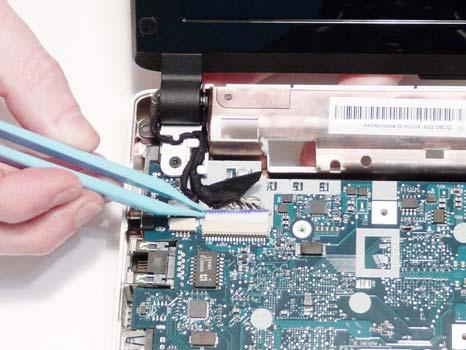

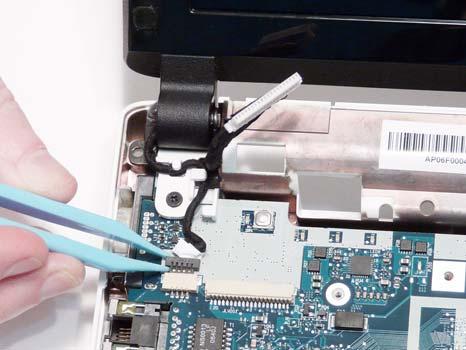

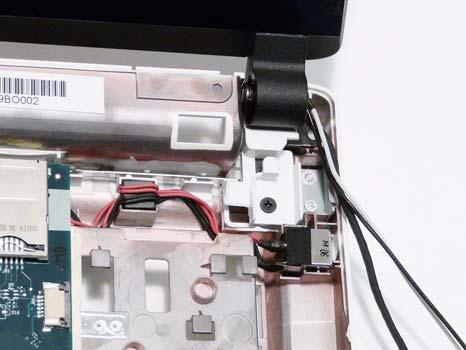

5. Connect the Camera cable to the Mainboard. 6. Run the Antenna cables along the Lower Cover using all available cable clips.

7. Pass the Antenna cables through the Lower Cover and them in place with an adhesive strip.
