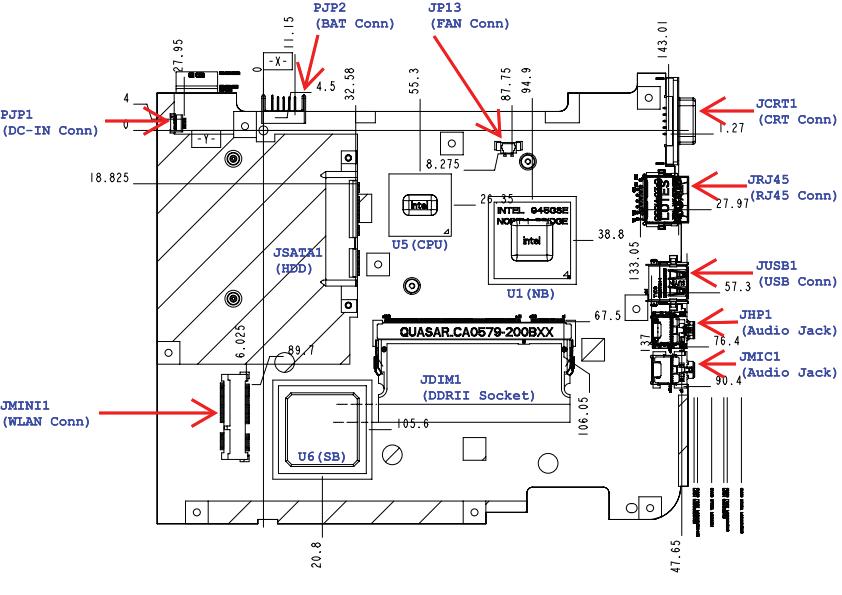

Bottom View

Item Description Item Description

JDIM1 DDR2 Socket JMIC1 MIC IN Connector JSATA1 HDD Connector JP13 FAN Connector JMINI1 MINI Card (Wireless) Socket PJP1 TO Power Core Connector JCRT1 CRT Connector PJP2 Battery Connector JRJ451 RJ45 LAN Connector U1 NB JUSB1 External USB Connector U5 CPU JHP1 Head-Phone Connector U6 SB
