Replacing the Power Board
1. 2.

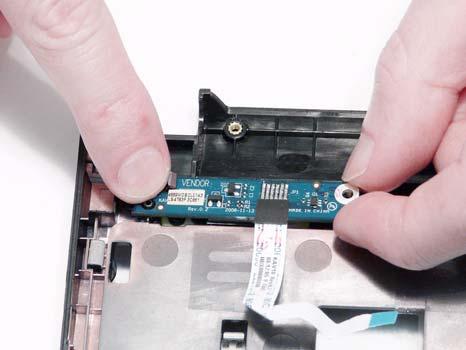

3. Press down the left and right sides of the Power Board to locate the securing pins.

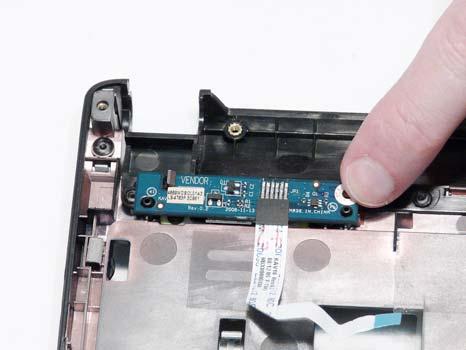

4. Replace the single securing screw and press down on the FFC (green callout) to secure it to the Upper Cover.
