Replacing the WLAN Board

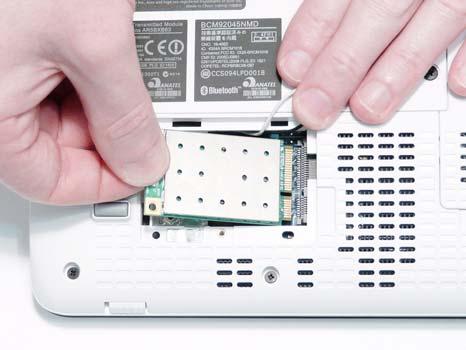

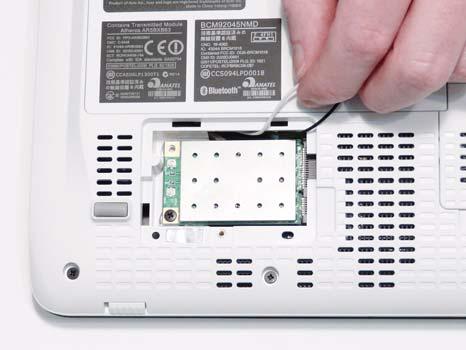

1. Turn the computer over. Insert the WLAN board in to the WLAN slot. 2. Replace the single securing screw.

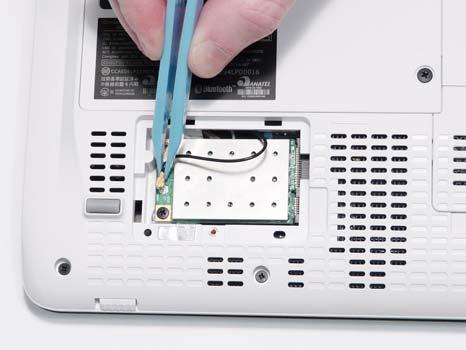

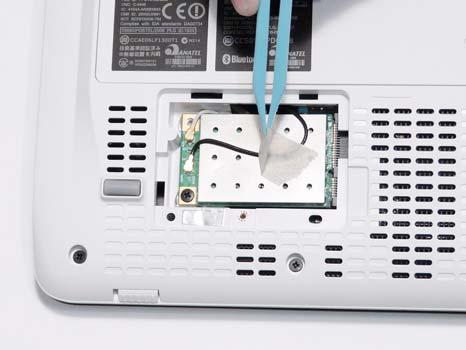

3. Connect the two Antenna cables to the WLAN board. 4. Secure the cables in place with adhesive tape.
IMPORTANT: The black cable attaches to the MAIN (J3) terminal and the gray cable attaches to the AUX (J2) terminal.
