Replacing the LCD Cable and Brackets

1. Insert the LCD Cable into the panel connector as shown. 2. Secure the connector by replacing the adhesive strip as shown.

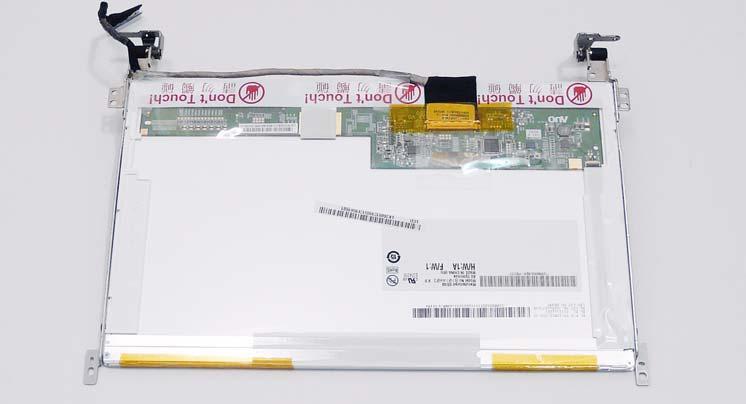

3. Run the LCD Cable as shown and replace the securing strips.

IMPORTANT:Ensure that the LCD Cable runs as shown to avoid trapping when the Bezel is replaced.

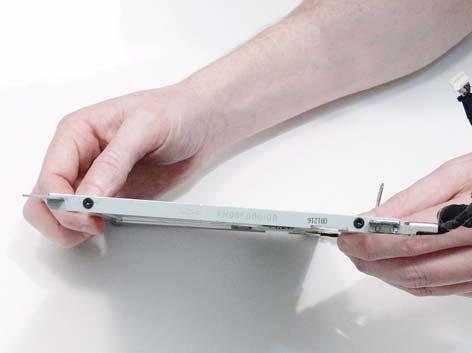

5. Secure the brackets to the panel using four bracket screws (two each side).
