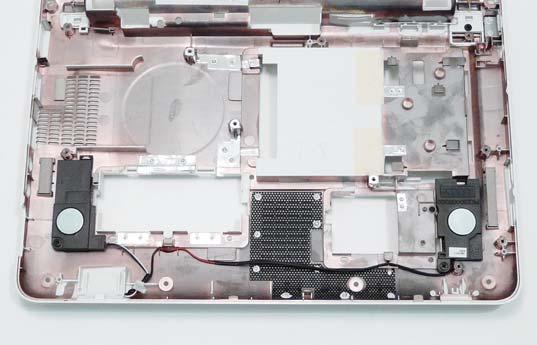

Removing the Speaker Module

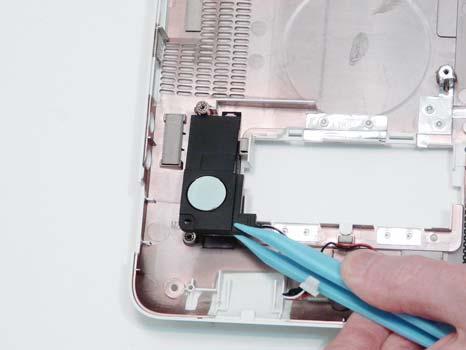

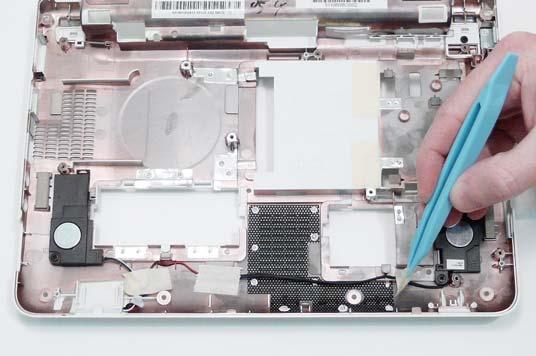

1. See “Removing the Mainboard and Power Cable” on page 71. 2. Remove the adhesive strips holding the cables in place.

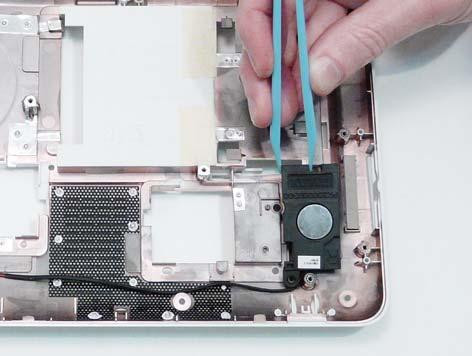

3. Remove the two securing screws (one for each Speaker).

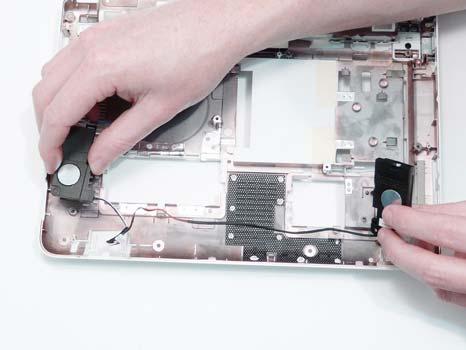

4. Lift the Speakers individually from the upper cover as shown.

Step

Size

Speaker Module M2*3 2

Quantity Screw Type
