Replacing the LCD Bracket Extensions

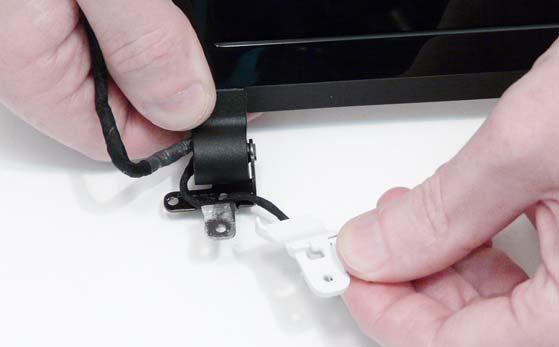

IMPORTANT: The Extensions may not represent the actual model. During the removal and replacement of components, ensure all available cable channels and clips are used and that the cables are replaced in the same position. 1. Ensure the left side Power and MIC cables run as shown.

NOTE: The MIC cable runs underneath the left side bracket extension.

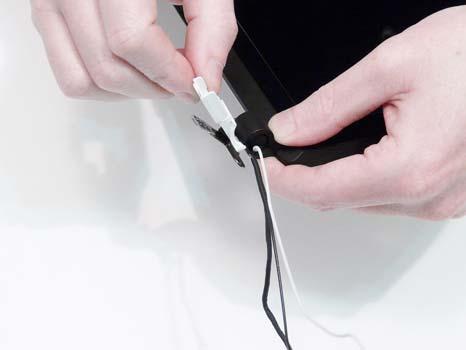

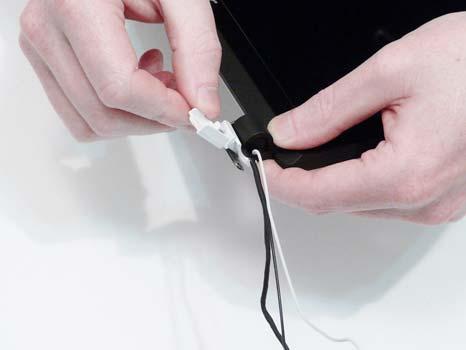

2. Replace the left side LCD Bracket Extension an press down to secure it in place.

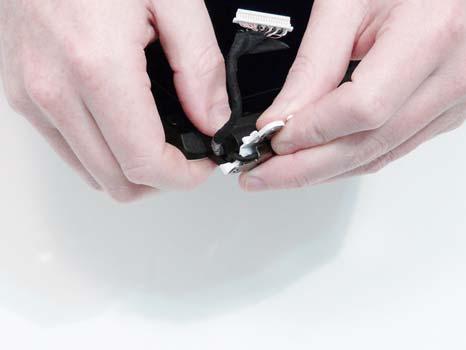

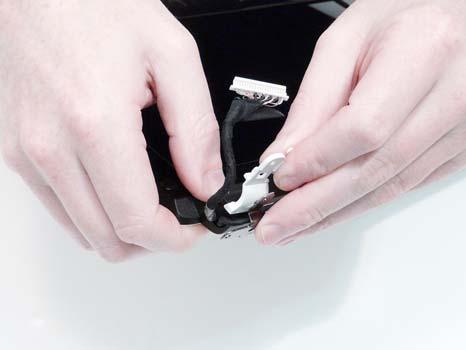

3. Replace the right side LCD Bracket Extension an press down to secure it in place.
