Removing the LCD Bezel

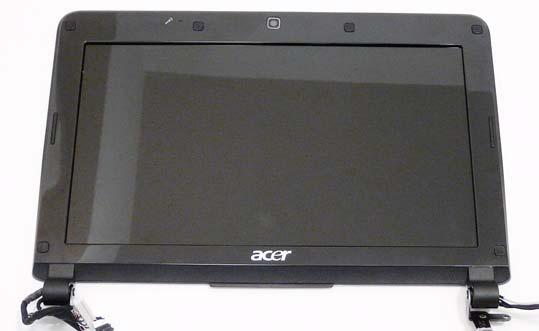

1. See “Removing the LCD Bracket Extensions” on page 79. 2. Remove the four screw caps and screws from the LCD Bezel.

NOTE: The two center screw caps at the top of the bezel are for protection only.

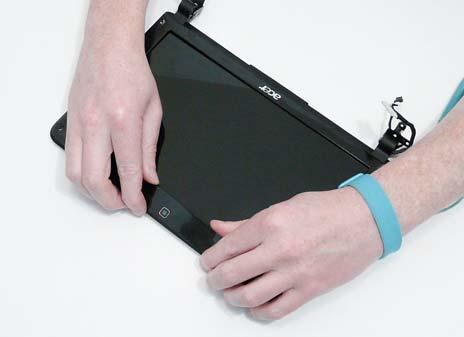

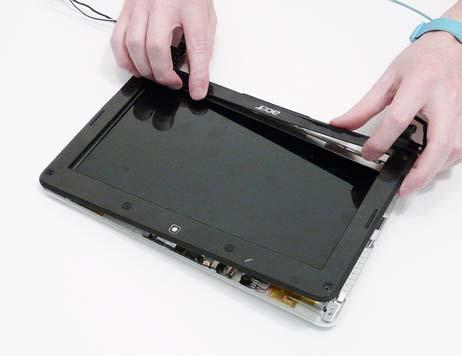

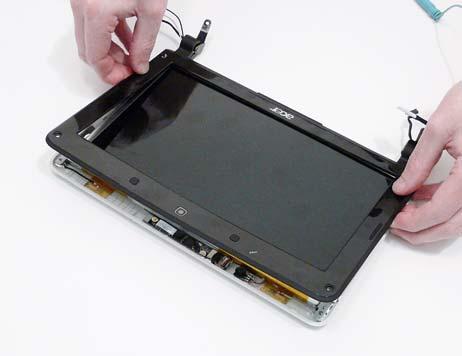

3. Starting from the inside top edge, pry the bezel away from the panel. Continue moving down the sides until the bezel is removed. If necessary, use a plastic pry to release the corners of the bezel.

Step

Size

LCD Bezel M2*6 4

Quantity Screw Type

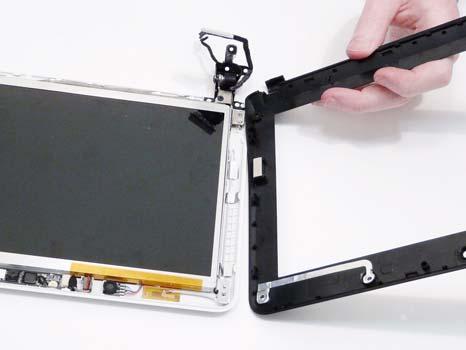

4. Lift up the bezel and remove it from the LCD Module. IMPORTANT: If the LCD Bezel is replaced, remove the lid sensor magnet from the bezel, and attach it to the replacement bezel.
