Replacing the Upper Cover

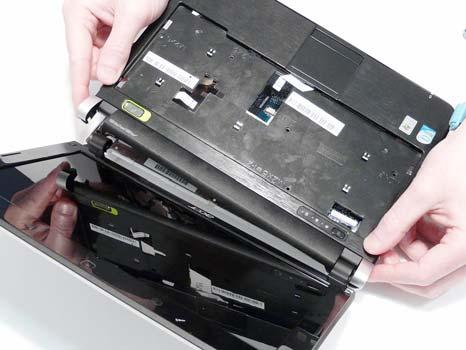

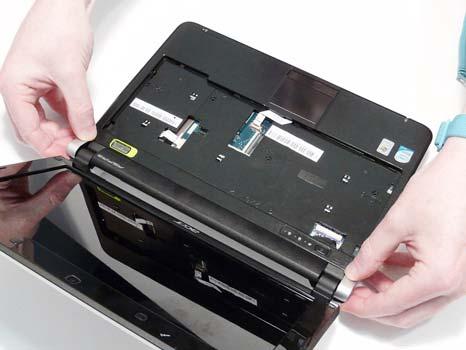

1. Place the Upper Cover on the Lower Cover left side first as shown. 2. Press down the Upper Cover at either side to snap it in to place.

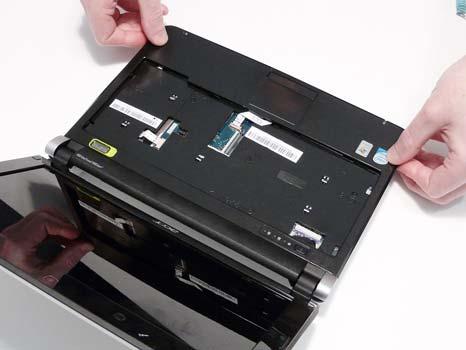

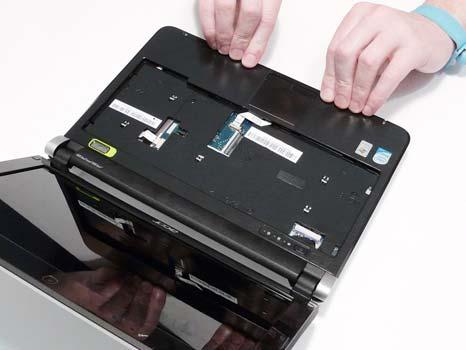

3. Continue pressing down both sides of the Upper Cover and along the bottom edge to snap the covers together.

NOTE: Ensure there are no gaps between the Upper and Lower Covers. 4. Replace the five securing screws in the Upper Cover.

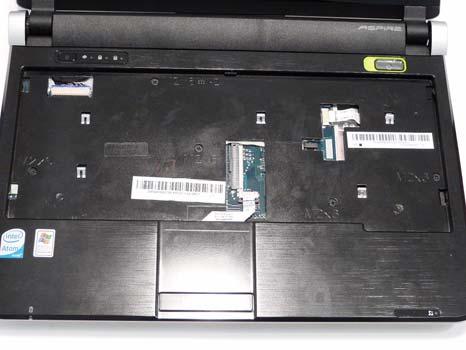

B A

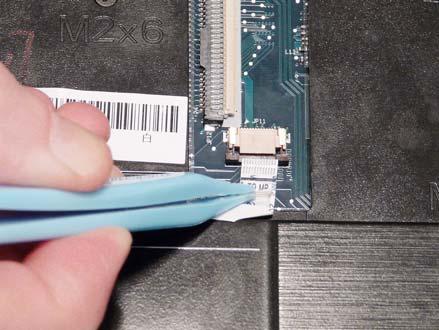

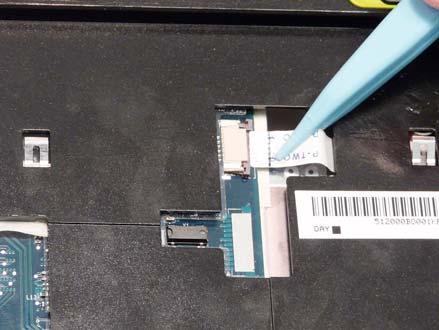

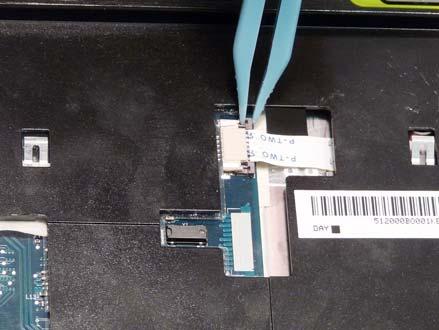

Connect A to the Mainboard. Secure the locking latch on A as shown.

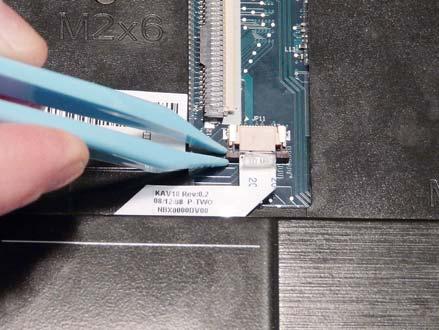

Connect B to the Mainboard. Secure the locking latch on B as shown.

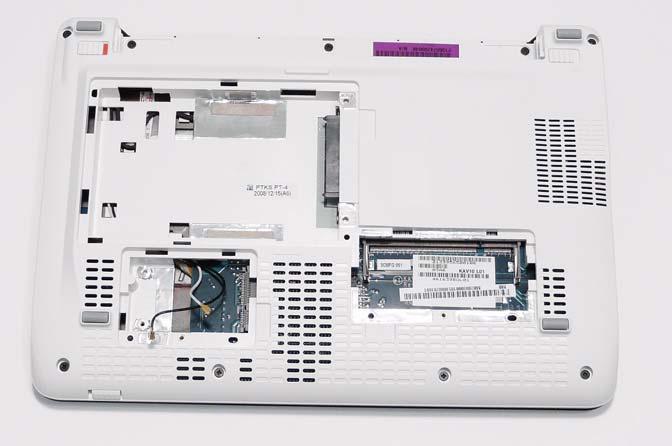

6. Turn the computer over and replace the nine securing screws as shown.

NOTE: Ensure the correct screw type is used for each hole. Red callout: M2*3, Green callout: M2*6.
