Replacing the LCD Bezel
IMPORTANT: If the LCD Bezel is replaced, remove the lid sensor magnet from the bezel, and attach it to the replacement bezel.

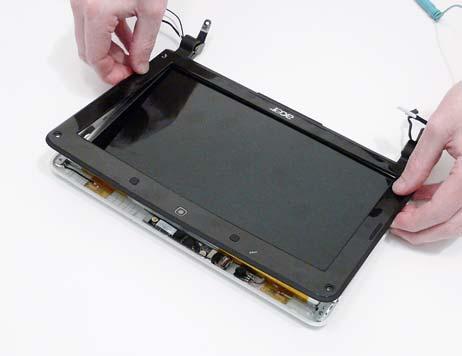

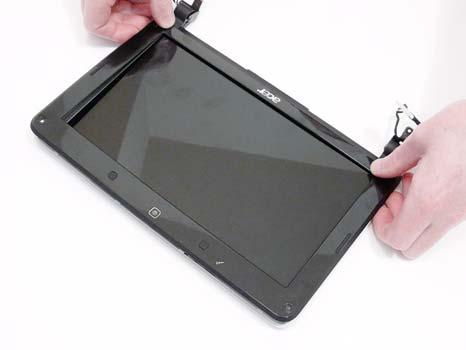

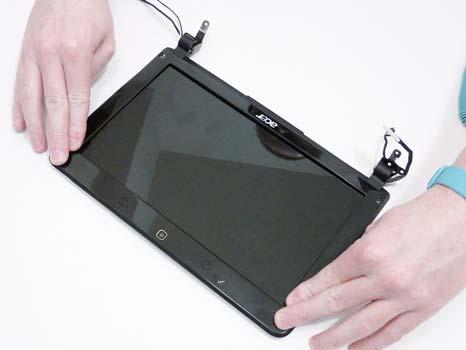

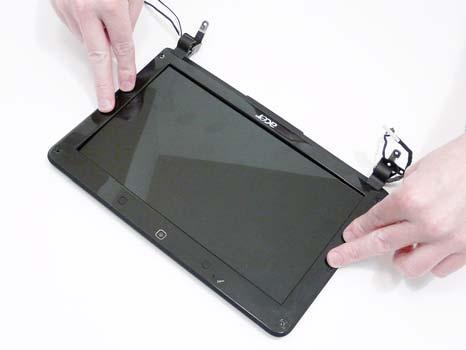

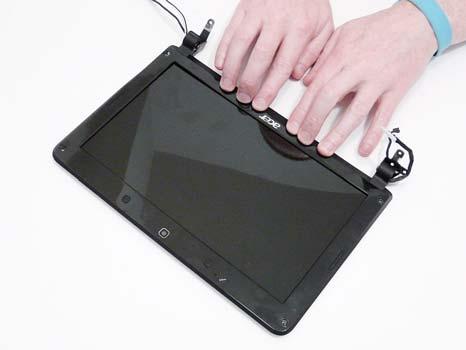

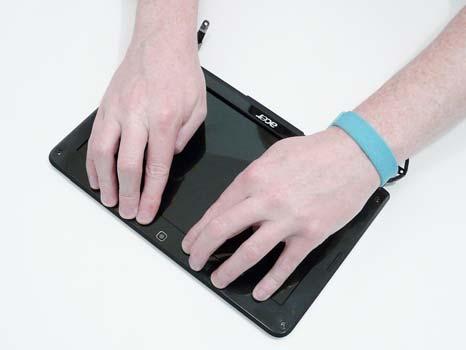

1. Replace the bezel bottom edge first as shown. 2. Starting at the hinge wells, press down to secure the bezel in place.
4. Replace the four screws and screw caps.
