Replacing the TouchPad Bracket

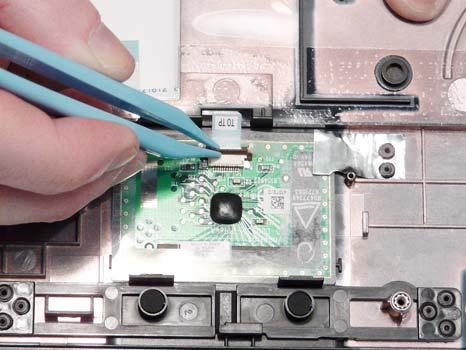

1. Insert the FFC through the Upper Cover as shown, and connect it to the TouchPad Board.

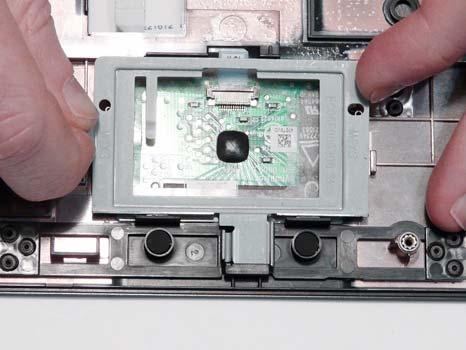

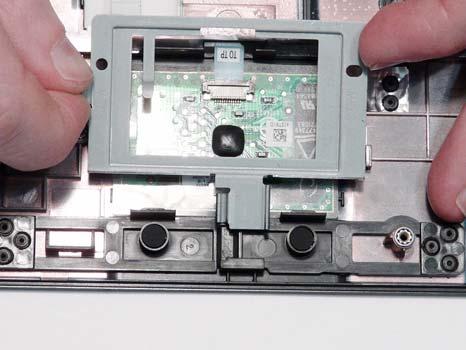

3. Insert the TouchPad Bracket bottom edge first as shown. Ensure that the three securing clips are engaged.
5. Slide the bracket in the direction of the arrow to engage the final securing pin. 2. Secure the FFC in place by closing the FFC latch.

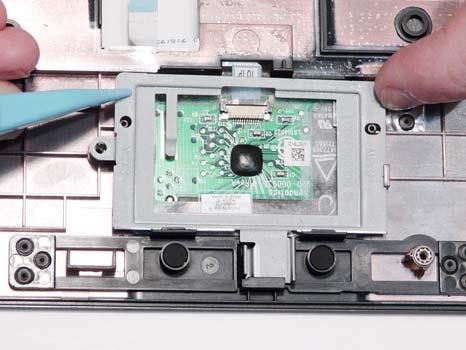

4. Rotate the bracket on to the Upper Cover, ensuring that the two locating pins are properly located.
6. Replace the single securing screw.
