Removing the Hard Disk Drive Module

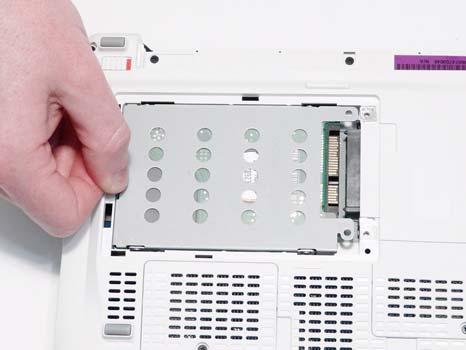

1. See “Removing the Lower Covers” on page 44. 2. Use the pull-tab to disconnect the HDD from the interface connector.

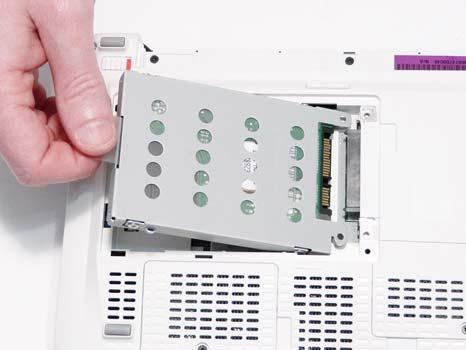

3. Lift the hard disk drive module out of the bay.

NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.

3

1 4

2

Step

Size

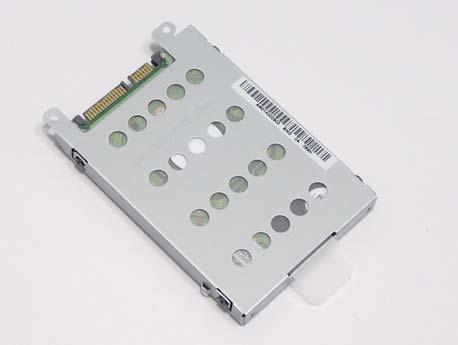

HDD Carrier M3*3 4

Quantity Screw Type

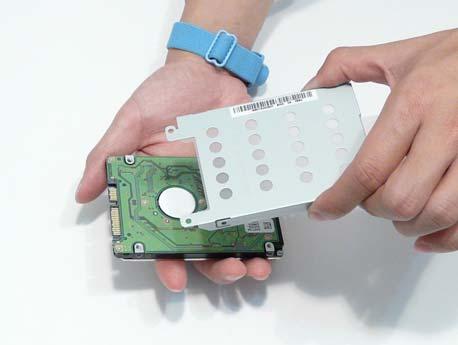

5. Remove the HDD from the carrier.
