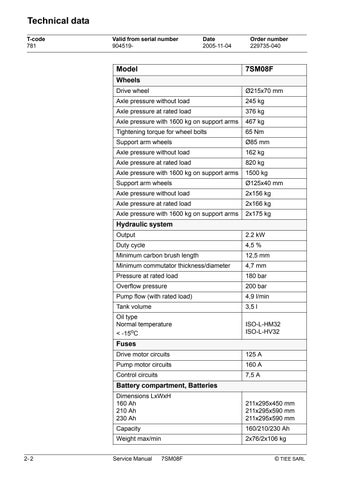

Technical data T-code 781
Valid from serial number 904519-
Date 2005-11-04
Model
Order number 229735-040
7SM08F
Wheels Drive wheel
Ø215x70 mm
Axle pressure without load
245 kg
Axle pressure at rated load
376 kg
Axle pressure with 1600 kg on support arms
467 kg
Tightening torque for wheel bolts
65 Nm
Support arm wheels
Ø85 mm
Axle pressure without load
162 kg
Axle pressure at rated load
820 kg
Axle pressure with 1600 kg on support arms
1500 kg
Support arm wheels
Ø125x40 mm
Axle pressure without load
2x156 kg
Axle pressure at rated load
2x166 kg
Axle pressure with 1600 kg on support arms
2x175 kg
Hydraulic system Output
2.2 kW
Duty cycle
4,5 %
Minimum carbon brush length
12,5 mm
Minimum commutator thickness/diameter
4,7 mm
Pressure at rated load
180 bar
Overflow pressure
200 bar
Pump flow (with rated load)
4,9 l/min
Tank volume
3,5 l
Oil type Normal temperature < -15oC
ISO-L-HM32 ISO-L-HV32
Fuses Drive motor circuits
125 A
Pump motor circuits
160 A
Control circuits
7,5 A
Battery compartment, Batteries
2- 2
Dimensions LxWxH 160 Ah 210 Ah 230 Ah
211x295x450 mm 211x295x590 mm 211x295x590 mm
Capacity
160/210/230 Ah
Weight max/min
2x76/2x106 kg
Service Manual
7SM08F
