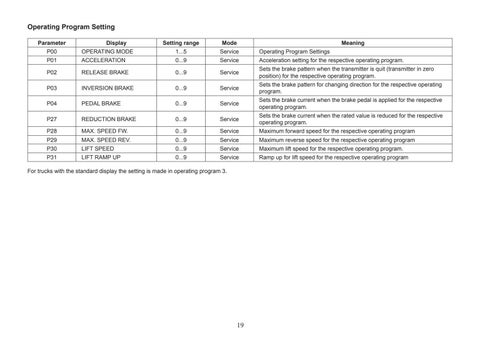

Operating Program Setting Parameter
Display
Setting range
Mode
Meaning
P00
OPERATING MODE
1...5
Service
Operating Program Settings
P01
ACCELERATION
0...9
Service
Acceleration setting for the respective operating program.
P02
RELEASE BRAKE
0...9
Service
Sets the brake pattern when the transmitter is quit (transmitter in zero position) for the respective operating program.
P03
INVERSION BRAKE
0...9
Service
Sets the brake pattern for changing direction for the respective operating program.
P04
PEDAL BRAKE
0...9
Service
Sets the brake current when the brake pedal is applied for the respective operating program.
P27
REDUCTION BRAKE
0...9
Service
Sets the brake current when the rated value is reduced for the respective operating program.
P28
MAX. SPEED FW.
0...9
Service
Maximum forward speed for the respective operating program
P29
MAX. SPEED REV.
0...9
Service
Maximum reverse speed for the respective operating program
P30
LIFT SPEED
0...9
Service
Maximum lift speed for the respective operating program.
P31
LIFT RAMP UP
0...9
Service
Ramp up for lift speed for the respective operating program
For trucks with the standard display the setting is made in operating program 3.
19
