BI620114
Service Manual

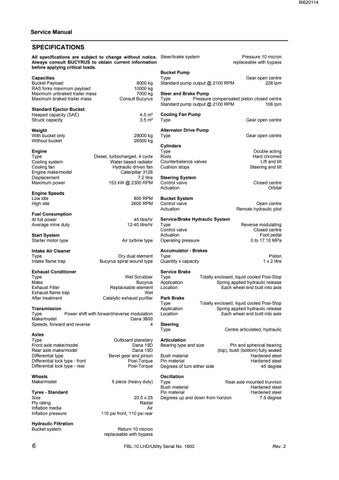

SPECIFICATIONS Pressure 10 micron All specifications are subject to change without notice. Steer/brake system replaceable with bypass Always consult BUCYRUS to obtain current information before applying critical loads. Bucket Pump Type Gear open centre Capacities Standard pump output @ 2100 RPM 228 lpm Bucket Payload 8000 kg RAS forks maximum payload 10000 kg Steer and Brake Pump Maximum unbraked trailer mass 7000 kg Type Pressure compensated piston closed centre Maximum braked trailer mass Consult Bucyrus Standard pump output @ 2100 RPM 106 lpm Standard Ejector Bucket Cooling Fan Pump Heaped capacity (SAE) 4.5 m³ Type Gear open centre Struck capacity 3.5 m³ Weight With bucket only Without bucket Engine Type Cooling system Cooling fan Engine make/model Displacement Maximum power Engine Speeds Low idle High idle Fuel Consumption At full power Average mine duty Start System Starter motor type Intake Air Cleaner Type Intake flame trap Exhaust Conditioner Type Make Exhaust Filter Exhaust flame trap After treatment
29000 kg 26500 kg
Diesel, turbocharged, 4 cycle Water based radiator Hydraulic driven fan Caterpillar 3126 7.2 litre 153 kW @ 2300 RPM
800 RPM 2600 RPM
45 litre/hr 12-40 litre/hr
Air turbine type
Dry dual element Bucyrus spiral wound type
Wet Scrubber Bucyrus Replaceable element Wet Catalytic exhaust purifier
Transmission Type Power shift with forward/reverse modulation Make/model Dana 3600 Speeds, forward and reverse 4 Axles Type Front axle make/model Rear axle make/model Differential type Differential lock type - front Differential lock type - rear Wheels Make/model Tyres - Standard Size Ply rating Inflation media Inflation pressure Hydraulic Filtration Bucket system
6
Outboard planetary Dana 19D Dana 19D Bevel gear and pinion Posi-Torque Posi-Torque
5 piece (heavy duty)
20.5 x 25 Radial Air 110 psi front, 110 psi rear
Alternator Drive Pump Type
Gear open centre
Cylinders Type Rods Counterbalance valves Cushion stops
Double acting Hard chromed Lift and tilt Steering and tilt
Steering System Control valve Actuation
Closed centre Orbital
Bucket System Control valve Actuation
Open centre Remote hydraulic pilot
Service/Brake Hydraulic System Type Control valve Actuation Operating pressure Accumulator - Brakes Type Quantity x capacity
Reverse modulating Closed centre Foot pedal 0 to 17.10 MPa
Piston 1 x 2 litre
Service Brake Type Application Location
Totally enclosed, liquid cooled Posi-Stop Spring applied hydraulic release Each wheel end built into axle
Park Brake Type Application Location
Totally enclosed, liquid cooled Posi-Stop Spring applied hydraulic release Each wheel end built into axle
Steering Type
Centre articulated, hydraulic
Articulation Bearing type and size
Pin and spherical bearing (top), bush (bottom) fully sealed Bush material Hardened steel Pin material Hardened steel Degrees of turn either side 45 degree Oscillation Type Rear axle mounted trunnion Bush material Hardened steel Pin material Hardened steel Degrees up and down from horizon 7.5 degree
Return 10 micron replaceable with bypass FBL-10 LHD/Utility Serial No. 1600
Rev. 2
