General Description
Section 8 Attachments and Accessories
GENERAL DESCRIPTION
The Rapid Attach System (RAS) is specifically designed to provide safe attachment and retention of a range of accessories used on the machine. The RAS system basically comprises of an attach plate, retaining tongue and hydraulic power take off permanently fixed to the front frame (see Section 6).
The attachments are the machine’s working tools covering a wide range of applications including materials load haul dumping, heavy load handling and personnel elevation.
The operator and maintenance personnel must be trained and authorised to use and maintain the equipment and its attachments.
Attachments are designed to be secured to the RAS attach plate and lock tongue. Once the PTO hoses are disconnected after the lock tongue is engaged they can be used for various functions on the attachments. A second pair of PTO lines is available on the off driver’s side for an additional power take off such as the use of side shift forks or CHT-50 functions where independent control is provided.

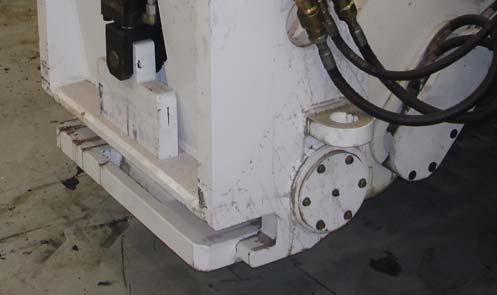

RAS Lock Tongue Indicator
RAS Attach Plate
RAS Lock Cylinder
RAS Lock Tongue

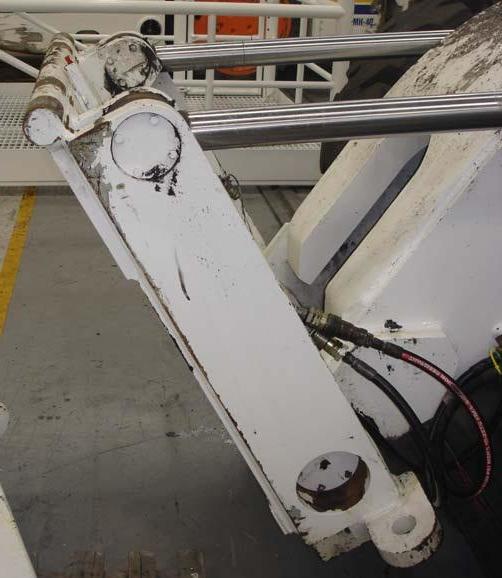

RAS Attach Plate General Description
The FBL-10 and the FBL-10 RAS assemblies are different, the FBL-10 is a much larger and higher capacity assembly. The attachments can not be interchanged between models. (Reference Photos 1 and 2 Page 308).The CHT-50 can be interchanged by changing the 5th wheel assembly.
FBL-10 RAS Attach Plate General Description
