1 Product description 1.1 Assembly - Overview This section contains an overview of the machine and descriptions of the components shown.
1.1.1
Machine and construction equipment

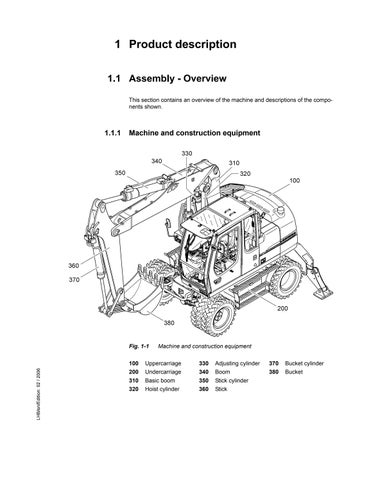

Fig. 1-1
Machine and construction equipment
100
Uppercarriage
330
Adjusting cylinder
370
Bucket cylinder
200
Undercarriage
340
Boom
380
Bucket
310 320
Basic boom Hoist cylinder
350 360
Stick cylinder Stick
