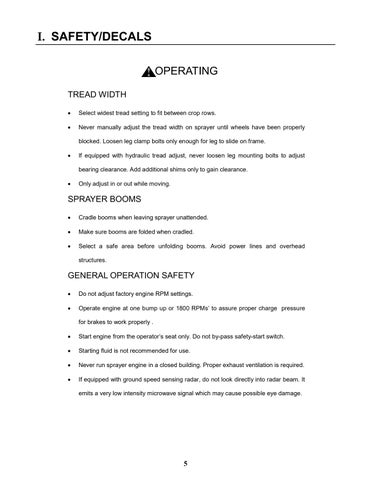

I. SAFETY/DECALS OPERATING TREAD WIDTH •
Select widest tread setting to fit between crop rows.
•
Never manually adjust the tread width on sprayer until wheels have been properly blocked. Loosen leg clamp bolts only enough for leg to slide on frame.
•
If equipped with hydraulic tread adjust, never loosen leg mounting bolts to adjust bearing clearance. Add additional shims only to gain clearance.
•
Only adjust in or out while moving.
SPRAYER BOOMS •
Cradle booms when leaving sprayer unattended.
•
Make sure booms are folded when cradled.
•
Select a safe area before unfolding booms. Avoid power lines and overhead structures.
GENERAL OPERATION SAFETY •
Do not adjust factory engine RPM settings.
•
Operate engine at one bump up or 1800 RPMs’ to assure proper charge pressure for brakes to work properly .
•
Start engine from the operator’s seat only. Do not by-pass safety-start switch.
•
Starting fluid is not recommended for use.
•
Never run sprayer engine in a closed building. Proper exhaust ventilation is required.
•
If equipped with ground speed sensing radar, do not look directly into radar beam. It emits a very low intensity microwave signal which may cause possible eye damage.
