VIII. SERVICE AND MAINTENANCE

Air Conditioning

TYPE - The cab on your sprayer is equipped with a R-134a air conditioning system.

RECHARGING - Recharge it only with R-134a refigerant. If your air conditioning system is mistakenly charged with R-12 refigerant, serious problems, such as compressor seizure, may result. Therefore, confirm refigerant before recharging system.

If you do not have the proper recharging equipment, it is recommended that you allow an independent service agent service your air conditioning system.

Windshield Washer Fluid

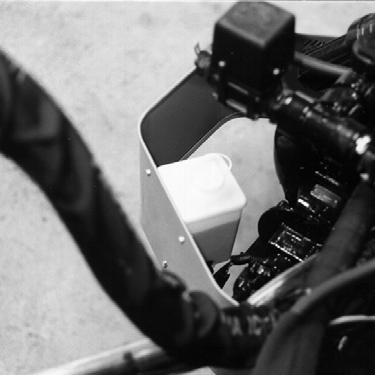

The windshield washer reservoir is located toward the front of the sprayer behind the center front shield (fig. 8.12). Check it occasionally and refill it with no n-freezing automotive windshield cleaner as required.

Fluid Capacities And Types

Engine oil pan, including filter.......................17 quarts

SAE 15W-40

Engine oil dipstick, L-H mark........................2 quarts

Hydraulic oil reservoir...................................20 gallons anti-wear hydraulic oil

Torque Hub ® oil level (4)...............................approx. 26 oz. ea. EP-90 or 85-140

Engine cooling system..................................10 gallons ethylene glycol

Fuel tanks (2)................................................40 gallons ea. No. 1 or 2 diesel
