V. OPERATING INFORMATION

Steering Column

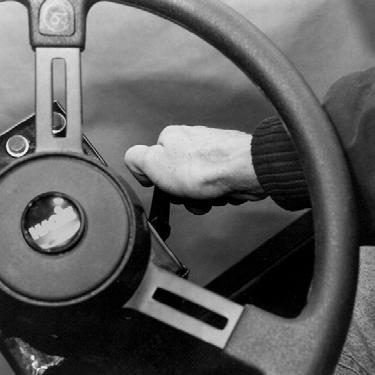

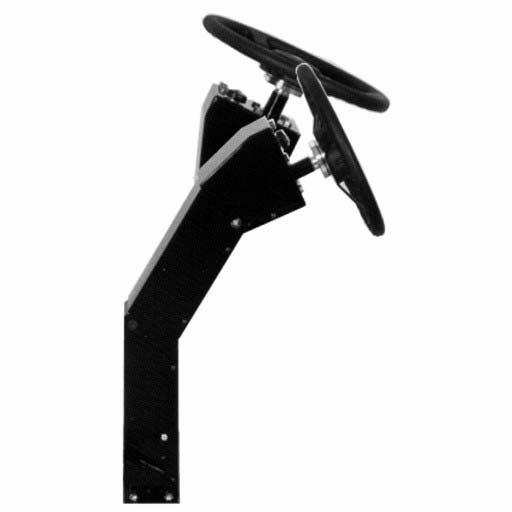

To adjust the upper tilt, locate the tilt lock lever on the righthand side of the steering column (fig. 5.79); rotate the lever counterclockwise to release steering column tilt lock. Move steering column to desired position and rotate lever clockwise to lock column in place.

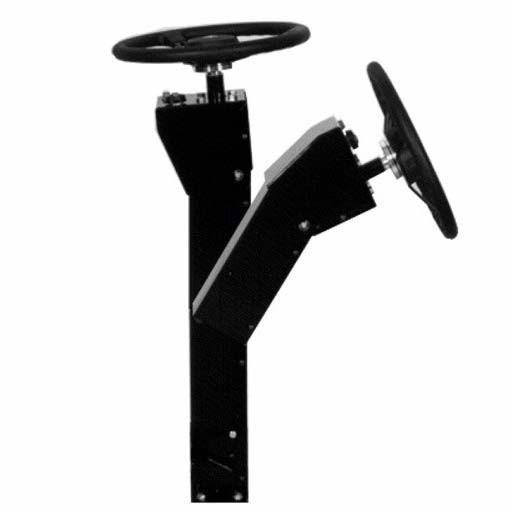

To ease cab exit and entry, the entire steering column tilts out of the driver’s way. To operat e the column base tilt, locate the foot pedal at the base of the steering column (fig. 5.81); push down on the foot pedal to release the column base lock. Pull or push the column to the desired position and release the foot pedal to re-lock the column base.

Auxiliary Power Supplies

The Hagie DTS 8 has two auxiliary power supplies in the cab for powering 12 volt accessories. They are both “hot” regardless of ignition key position. Turn the accessory off if the engine is not running for an extended period of time.

The cigarette lighter-type (fig. 5.81, item 1) and the binding post-type (fig. 5.81, item 2) power supplies are located in the panel below the spray system monitor. Replace the insulated plug when not using the cigarette lighter-type power supply. Auxiliary power supplies are pr otected by a 30 AMP circuit breaker (see page 90).
